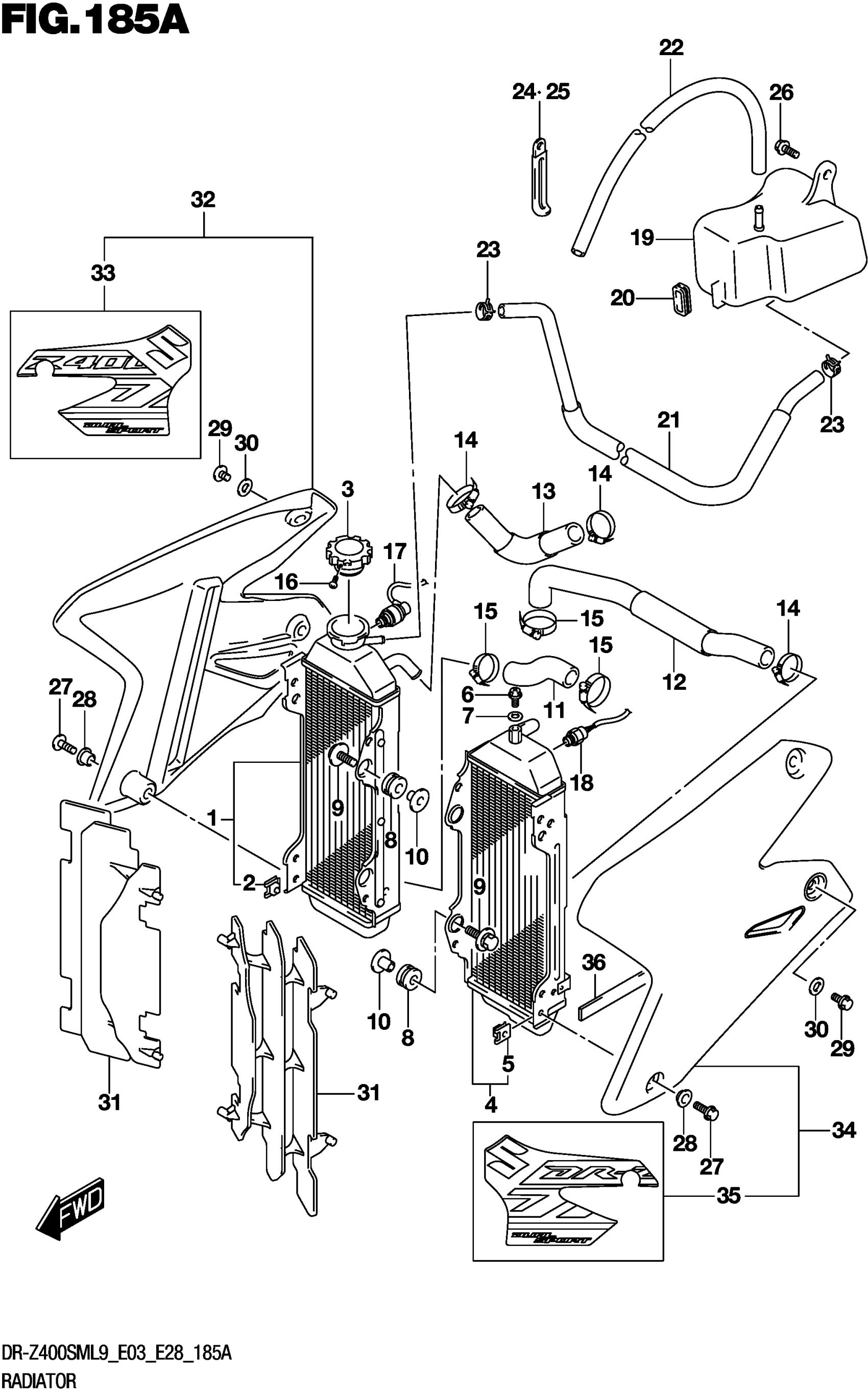

Suzuki DR-Z400SML9 (2019) RADIATOR Diagram

#

Description
Price

1

RADIATOR WATER R

17710-29F40

$649.35

2

NUT

09148-06015

$2.82

3

CAP RADIATOR (1.1)

17730-19D11

$40.48

4

RADIATOR WATER L

17720-29F40

$675.00

5

NUT

09148-06015

$2.82

6

UNION BOLT,AIR VENT

17568-50F00

$6.32

7

GASKET (6.4X11.5X0.84)

09168-06026

$2.88

8

CUSHION RADIATOR LWR

17787-19A00

$3.41

9

BOLT (6X25)

09116-06147

$3.03

10

SPACER (6.5X10.5X14.1)

09180-06243

$5.07

11

HOSE RADIATOR INLET

17851-29F10

$13.59

12

HOSE RADIATOR OUTLET

17852-29F30

$56.78

13

HOSE RADIATOR JOINT

17853-29F10

$30.12

14

CLAMP

09402-28513

$6.53

15

CLAMP

09402-32512

$13.97

16

SCREW,RADIATOR CAP

17733-03D10

$2.97

17

SWITCH ASSY WATER TEMP

34850-29F00

$140.27

18

SWITCH FAN

17680-24A30

$139.25

19

TANK RESERVOIR

17911-29F11

$47.72

20

CUSHION RESERVOIR TANK

17913-29F00

$5.00

21

HOSE RESERVOIR TANK INLET

17981-29F01

$23.73

22

HOSE (5X9X2000) | L:2000->650

09352-50901-00B

$34.43

23

CLIP (ID:8.6)

09401-08411

$1.82

24

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.42

25

CLAMP (L:45)

09404-06429

$1.88

26

BOLT

01550-0612A

$2.01

27

BOLT (6X16)

09103-06274

$2.09

28

WASHER (6.3X16X1)

09169-06053

$1.15

29

BOLT (6X8)

09103-06275

$2.21

30

WASHER (6.5X14X1.6)

09160-06125

$1.97

31

LOUVER RADIATOR

17831-37E11

$18.24

32-1

COVER, RADIATOR RH (WHITE)

17760-33K20-30H

$188.73

32-2

COVER, RADIATOR RH (WHITE)

17760-33K20-5UX

$192.28

33-1

.TAPE, RADIATOR COVER RH | FOR 30H

68685-29F20-BTC

Unavailable

33-2

.TAPE, RADIATOR COVER RH | FOR 5UX

68685-29F20-BTD

$67.17

34-1

COVER, RADIATOR LH (WHITE)

17770-33K20-30H

$185.25

34-2

COVER, RADIATOR LH (WHITE)

17770-33K20-5UX

$192.28

35-1

.TAPE, RADIATOR COVER LH | FOR 30H

68695-29F20-BTC

$62.90

35-2

.TAPE, RADIATOR COVER LH | FOR 5UX

68695-29F20-BTD

$67.17

36

CUSHION TOOL HOLDER

47451-38A01

$5.00
