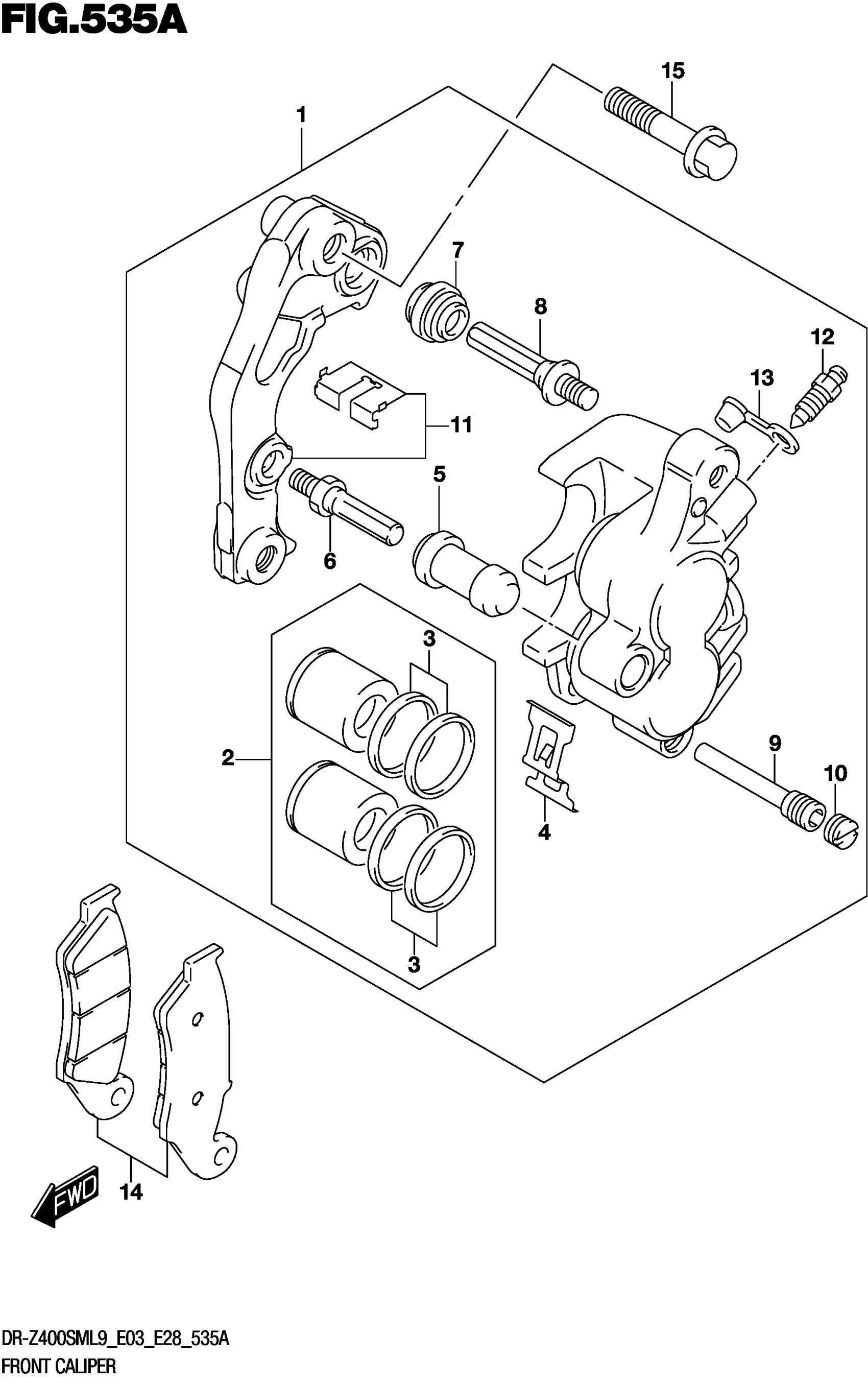

Find the part on the Front Caliper diagram for your 2019 Suzuki DR-Z400SML9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR-Z400SML9 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY FR L

59300-29F01-999

1
Out of stock

2

.PISTON SET

59300-27840

1
Out of stock

3

..SEAL SET,PISTON

59300-13820

1
Out of stock

4

.SPRING,PAD

59315-13E00

1
Out of stock

5

.BOOT

59386-13A00

1
Out of stock

6

.PIN

59382-14500

1
Out of stock

7

.BOOT

59303-14500

1
Out of stock

8

.PIN

59305-27C00

1
Out of stock

9

.PIN,HANGER

59345-13E00

1
Out of stock

10

.PLUG,PIN

59146-21E10

1
Out of stock

11

.BRACKET

59350-29F00

1
Out of stock

12

.BLEEDER

59121-01A00

1
Out of stock

13

.CAP,BLEEDER

59122-01A00

1
Out of stock

14

PAD SET

59300-29860

1
Out of stock

15

BOLT (8X40)

09103-08338

2
Out of stock
