2018 Suzuki DR-Z400SML8 Water Pump Diagram

← All diagrams

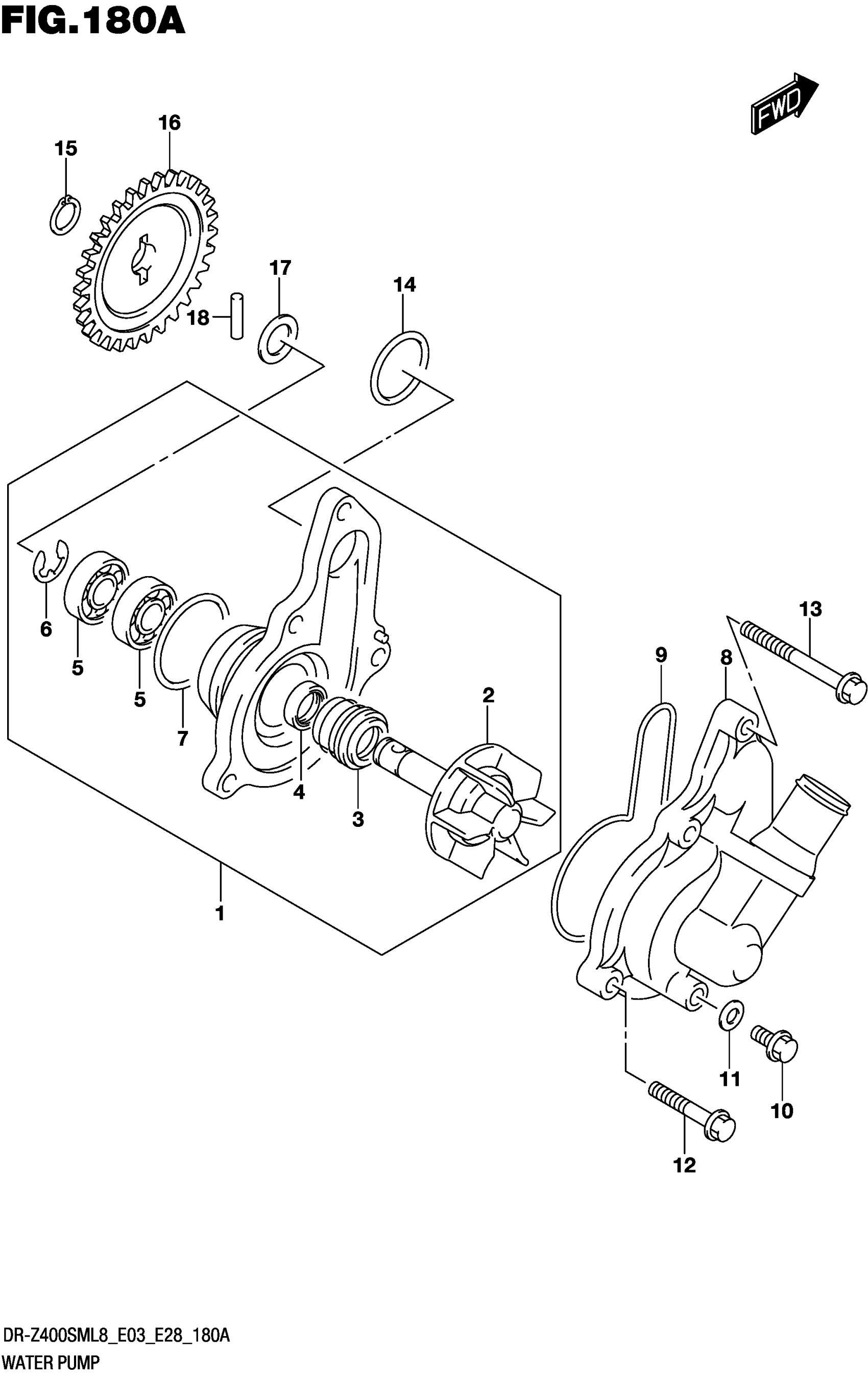

Find the part on the Water Pump diagram for your 2018 Suzuki DR-Z400SML8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DR-Z400SML8 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$116.85

In stock

2

.IMPELLER SHAFT

17491-29F10

1

$62.55

In stock

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

4

.SEAL OIL (10X21X5)

09283-10004

1

$4.80

In stock

5

.BEARING

08110-69000

2

$18.99

In stock

6

.E-RING

08332-1108A

1
Out of stock

7

.O-RING

17435-33400

1
Out of stock

8

CASE WATER PUMP

17410-29F21

1

$114.97

In stock

9

1

$10.20

In stock

10

BOLT

01547-0610A

1
Out of stock

11

1

$3.00

In stock

12

BOLT (6X30)

09103-06204

3

$2.92

In stock

13

BOLT (6X45)

09103-06209

1

$3.58

In stock

14

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

15

CIRCLIP

08331-31109

1
Out of stock

16

1

$36.66

In stock

16

1

$36.66

In stock

17

SHIM (10X18X0.5)

09181-10158

1
Out of stock

18

PIN (4X18.5)

09261-04001

1

$1.87

In stock
