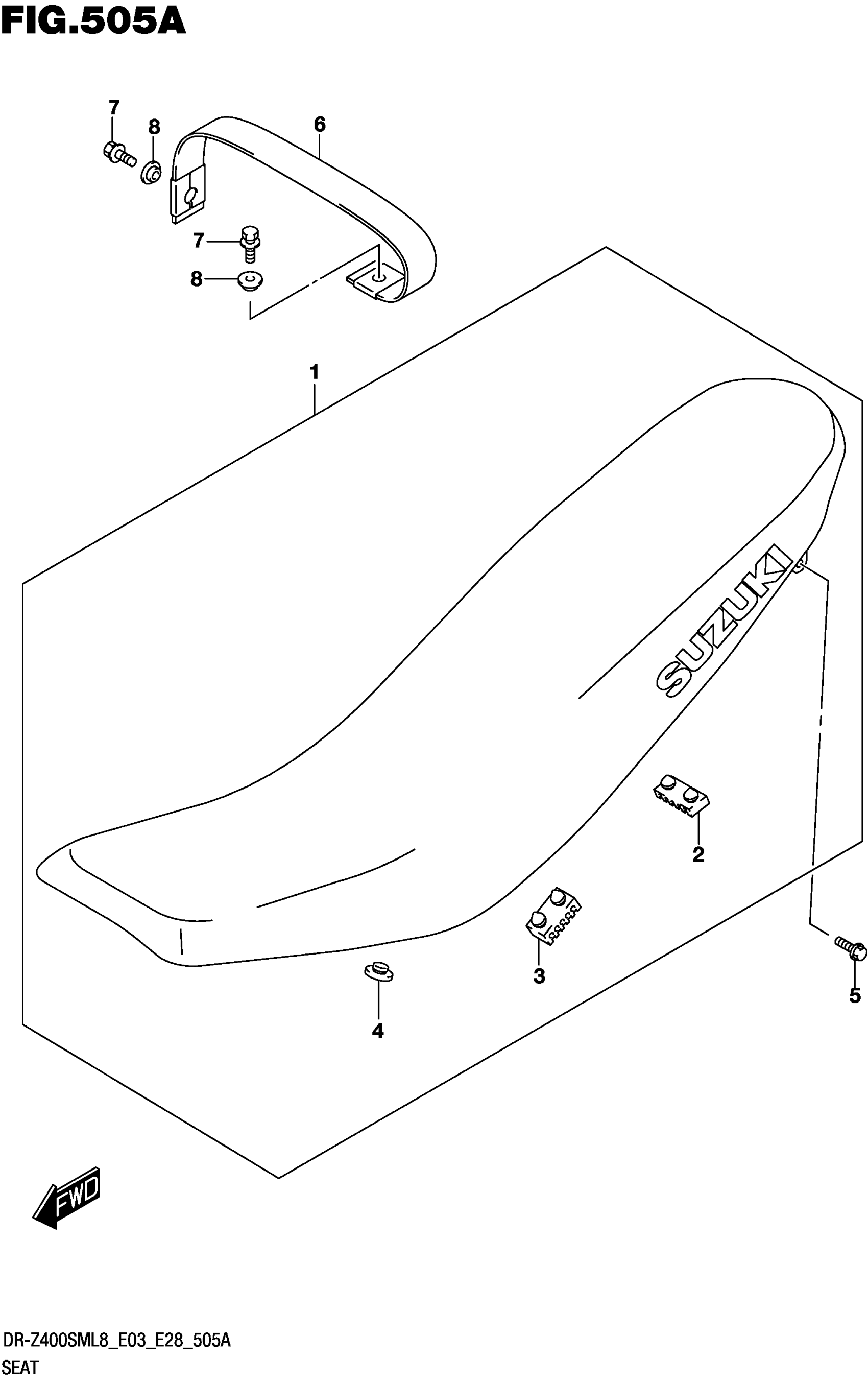

Suzuki DR-Z400SML8 (2018) SEAT Diagram

#

Description

Price

1

SEAT ASSY (GRAY BLACK SILVER) This part replaces 45100-29FE0-BYD.

45100-29FE1-BYD

$523.70

2

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

4

CUSHION

09321-10022

$2.37

5

BOLT (6X20)

09116-06182

$2.33

6

BAND,SEAT This part replaces 45180-29F00-T5N.

45180-29F01-T5N

$72.52

7

BOLT (6X25)

09116-06150

$2.61

8

WASHER (6.3X17X6)

09169-06063

$3.08
