2017 Suzuki DR-Z400SML7 Transmission Diagram

← All diagrams

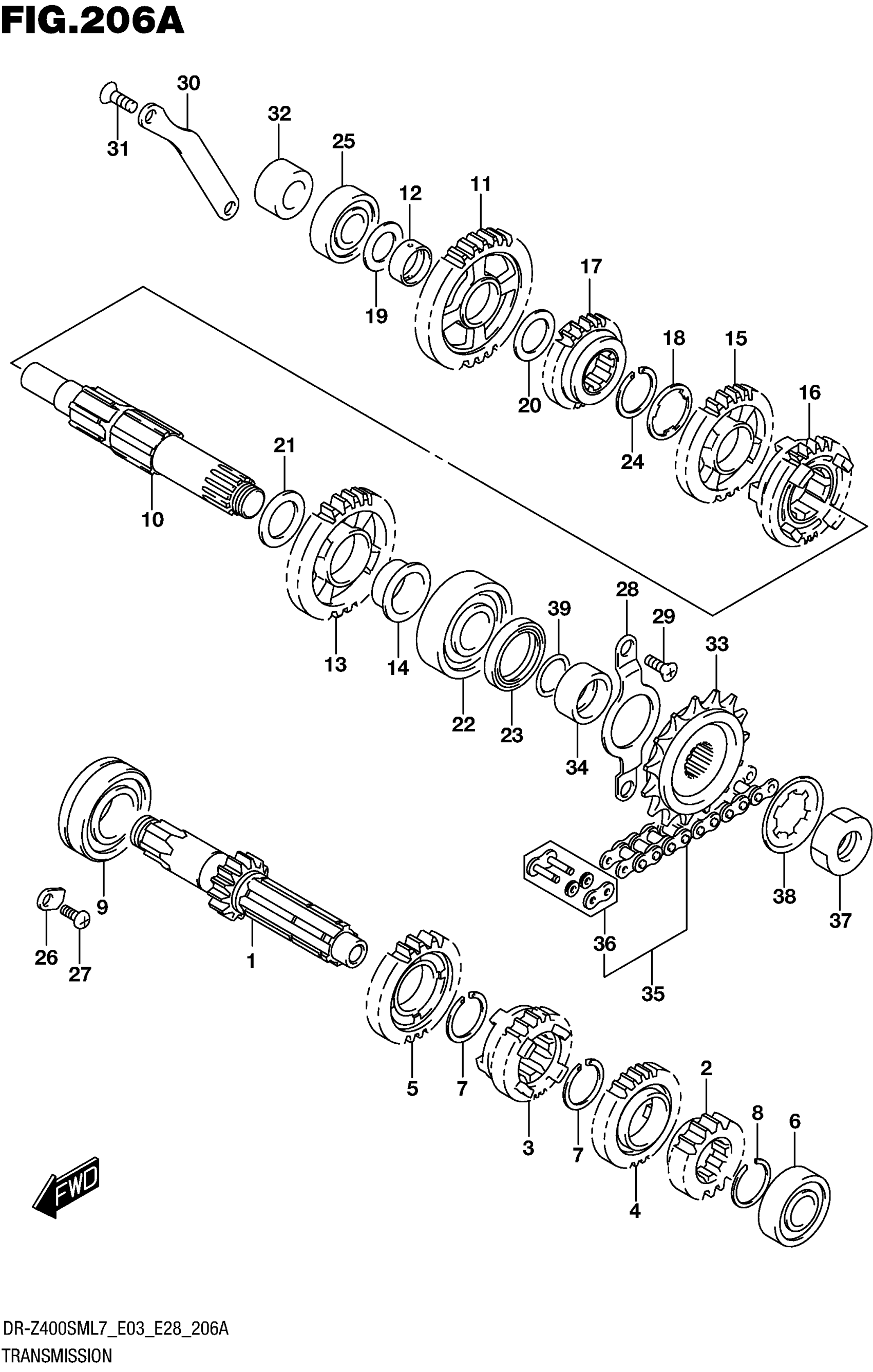

Find the part on the Transmission diagram for your 2017 Suzuki DR-Z400SML7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR-Z400SML7 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$298.40

In stock

2

1

$131.95

In stock

3

1

$151.07

In stock

4

1

$131.95

In stock

5

GEAR, 5TH DRIVE (NT:22)

24251-05D00

1
Out of stock

6

BEARING (17X40X12)

09262-17027

1

$37.62

In stock

7

CIRCLIP

09380-25010

2

$2.92

In stock

8

CIRCLIP

09380-25013

1

$4.53

In stock

9

BEARING (25X52X15)

09262-25003

1
Out of stock

10

SHAFT, DRIVE

24130-05D21

1

$228.12

In stock

11

1

$139.58

In stock

12

BUSH, 1ST DRIVEN GEAR

24312-29F00

1

$25.68

In stock

13

1

$137.02

In stock

14

BUSH, 2ND DRIVEN GEAR

24322-44E10

1

$40.65

In stock

15

1

$141.73

In stock

16

1

$153.90

In stock

17

1

$139.58

In stock

18

1

$4.02

In stock

19

SHIM (17X30X1)

09181-17223

1

$2.93

In stock

20

SHIM (20X30X1)

09181-20195

1
Out of stock

21

SHIM (22X34X1)

09181-22223

1

$3.97

In stock

22

BEARING (22X56X16)

09262-22024

1

$76.22

In stock

23

OIL SEAL (30X40X6)

09283-30053

1
Out of stock

24

CIRCLIP

09380-25010

1

$2.92

In stock

25

BEARING (17X40X12)

09262-17023

1

$21.00

In stock

26

RETAINER, COUNTER SHAFT

24741-21A00

2
Out of stock

27

SCREW (6X12)

09125-06122

2
Out of stock

28

1

$7.09

In stock

29

SCREW (6X14)

09126-06007

2

$2.18

In stock

30

1

$14.73

In stock

31

SCREW

02122-0616A

2

$1.52

In stock

32

SPACER (17X30.5X16.3)

09180-17055

1

$11.93

In stock

33

1

$28.79

In stock

34

1

$23.29

In stock

35

1

$183.27

In stock

35

(RK520KZOZ1)

27600-29F30-112

1

$183.27

In stock

36

.JOINT, CHAIN

27620-29F30

1

$24.32

In stock

37

NUT

09140-18006

1

$4.68

In stock

38

LOCK WASHER

09167-22012

1

$1.76

In stock

39

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock
