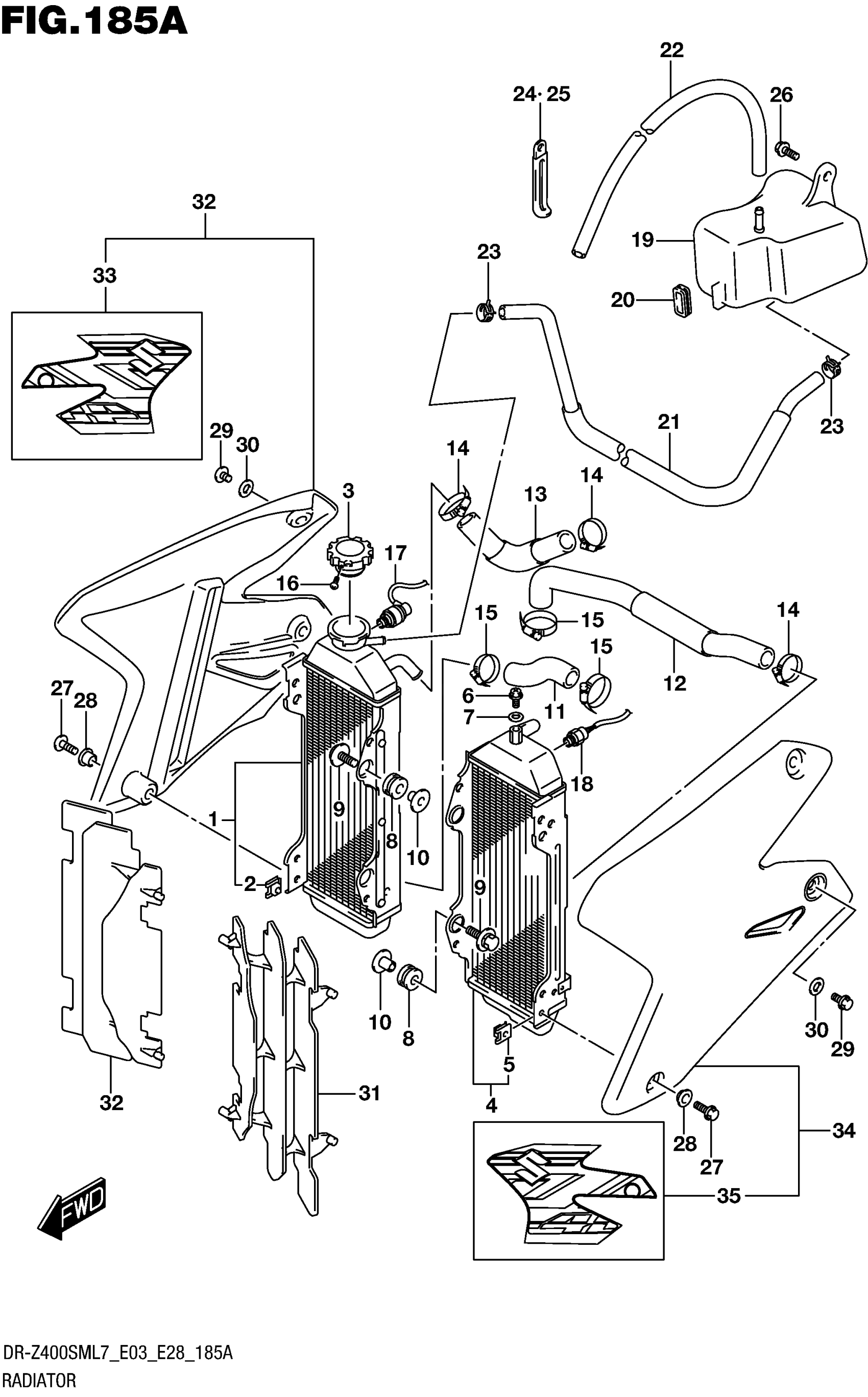

Suzuki DR-Z400SML7 (2017) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER RH

17710-29F40

$649.35

2

.NUT

09148-06015

$2.80

3

CAP, RADIATOR (1.1)

17730-19D11

$38.74

4

RADIATOR, WATER LH

17720-29F40

$675.00

5

.NUT

09148-06015

$2.80

6

BOLT, AIR RELEASE

17568-50F00

$6.32

7

GASKET (6.4X11.5X0.8)

09168-06026

$2.80

8

CUSHION, RADIATOR LWR

17787-19A00

$3.26

9

BOLT (6X25)

09116-06147

$2.93

10

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

11

HOSE, RADIATOR INLET

17851-29F10

$13.02

12

HOSE, RADIATOR OUTLET

17852-29F30

$56.78

13

HOSE, RADIATOR JOINT

17853-29F10

$30.12

14

CLAMP

09402-28513

$6.31

15

CLAMP

09402-32512

$13.97

16

SCREW,RADIATOR CAP

17733-03D10

$2.97

17

SWITCH ASSY, WATER TEMP

34850-29F00

$140.27

18

SWITCH, FAN

17680-24A30

$139.25

19

TANK, RESERVOIR

17911-29F11

$45.67

20

CUSHION, RESERVOIR TANK

17913-29F00

$5.00

21

HOSE, INLET

17981-29F01

$23.73

22

HOSE (5X9X2000) | L:2000->650

09352-50901-00B

$34.43

23

CLIP

09401-08411

$1.77

24

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

25

CLAMP (L:45)

09404-06429

$1.82

26

BOLT

01550-0612A

$1.97

27

BOLT (6X16)

09103-06274

$2.01

28

WASHER (6.3X16X1)

09169-06053

$1.10

29

BOLT (6X8)

09103-06275

$2.21

30

WASHER (6.5X14X1.6)

09160-06125

$1.89

31

LOUVER, RADIATOR

17831-37E11

$17.46

32

COVER, RADIATOR RH (WHITE)

17760-33K00-30H

$195.98

33

.TAPE, RADIATOR COVER RH

68685-29F00-BCP

Unavailable

34

COVER, RADIATOR LH (WHITE)

17770-33K00-30H

Unavailable

35

.TAPE, RADIATOR COVER LH

68695-29F00-BCP

$75.00
