Description

Price

1

HUB, FRONT WHEEL

54111-29F10

$355.08

2

SPACER, FRONT HUB

54731-36E10

$29.07

2

(20.5X27.3X70)

54731-36E10

$29.07

3

BEARING This part replaces 08130-69047.

08130-6904B

$47.02

4

OIL SEAL (25X37X6)

09283-25083

$7.67

5

AXLE, FRONT

54711-29F10

$118.47

6

BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F10.

54600-29F11

$97.60

7

SPACER, AXLE LH (L:31)

54751-36E10

$16.33

8

NUT

09159-18018

$21.71

9

DISC, FRONT BRAKE

59220-29F00

$428.63

10

SCREW (6X18)

09120-06014

$2.43

11

EXPANDER, AXLE SLIDER

54744-29F00

$6.62

12

SPACER (5.5X8X10.5)

09180-05048

$2.06

13

SLIDER, FR AXLE, RH

54745-29F00

$22.25

14

SLIDER, AXLE

54755-29F00

$28.77

15

WASHER (5.5X12X0.8)

09160-05029

$1.56

16

SPACER (5.5X9.5X26)

09180-05060

$6.08

17

BOLT (5X65)

09106-05021

$7.03

18

NUT

08316-2005B

$3.13

19

BOLT

07130-0540A

$3.23

20

NUT

09159-05050

$10.20

21

TIRE FRONT | D208F SM This part replaces 55110-29FA0.

55110-29FA1

$292.65

21

TIRE FRONT | DUNLOP This part replaces 55110-29FA0.

55110-29FA1

$292.65

22

TUBE ASSY, WHEEL INNER

55200-29FA0

$66.07

23

PROTECTOR, INNER TUBE

55261-29FA0

$7.23

24

RIM,FR WHEEL(17 This part replaces 55311-29F20.

55311-37L10-Q19

$382.78

25

SPOKE SET, FRONT WHEEL

55320-29F10

$136.30

26

WASHER (18X26X2.8)

09160-18034

$3.22

27-1

BALANCER WHEEL (15G)

55411-26G00

$8.73

27-2

BALANCER WHEEL (30G)

55413-41F00

$9.95

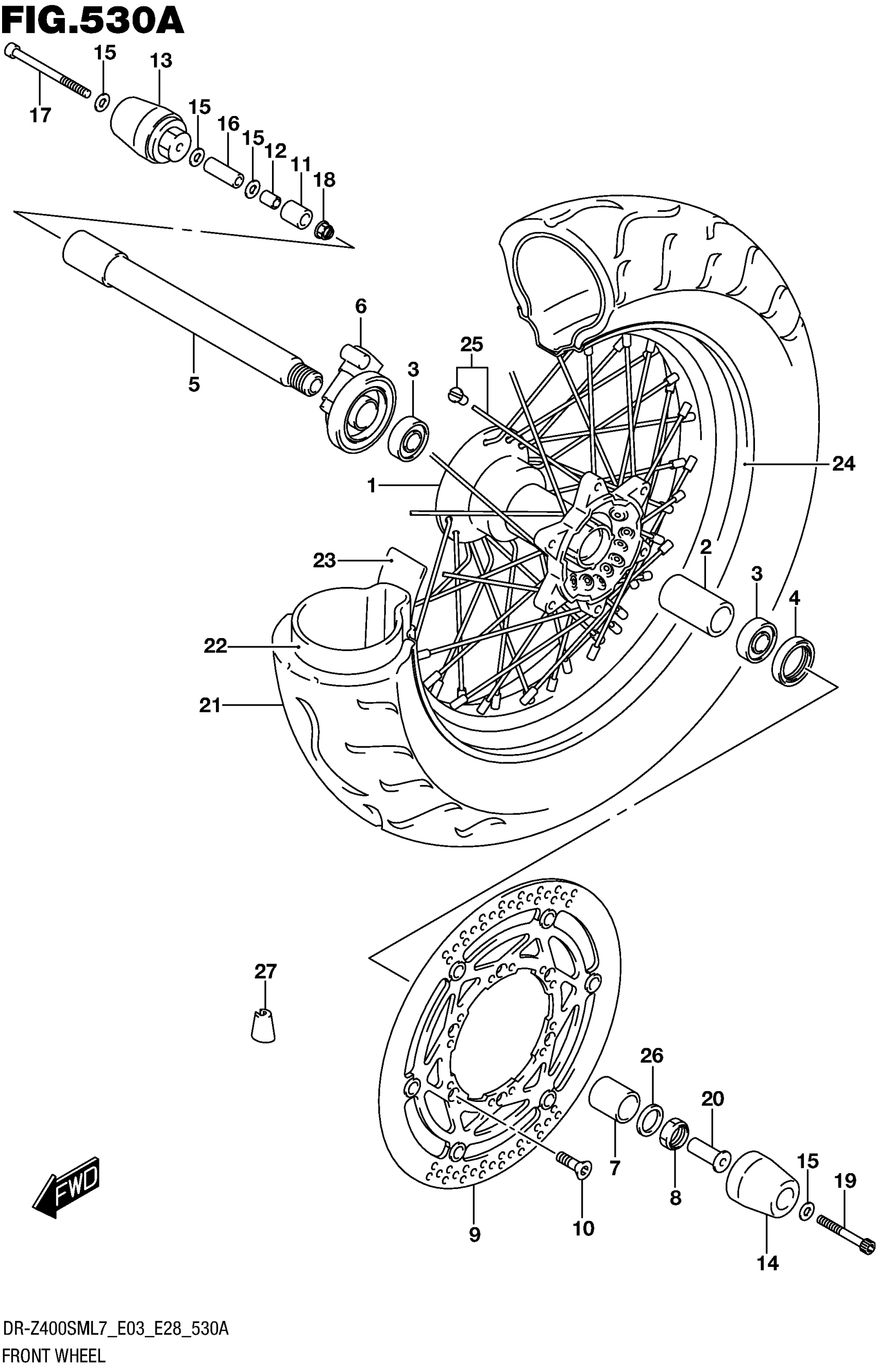

Suzuki DR-Z400SML7 (2017) FRONT WHEEL Diagram
