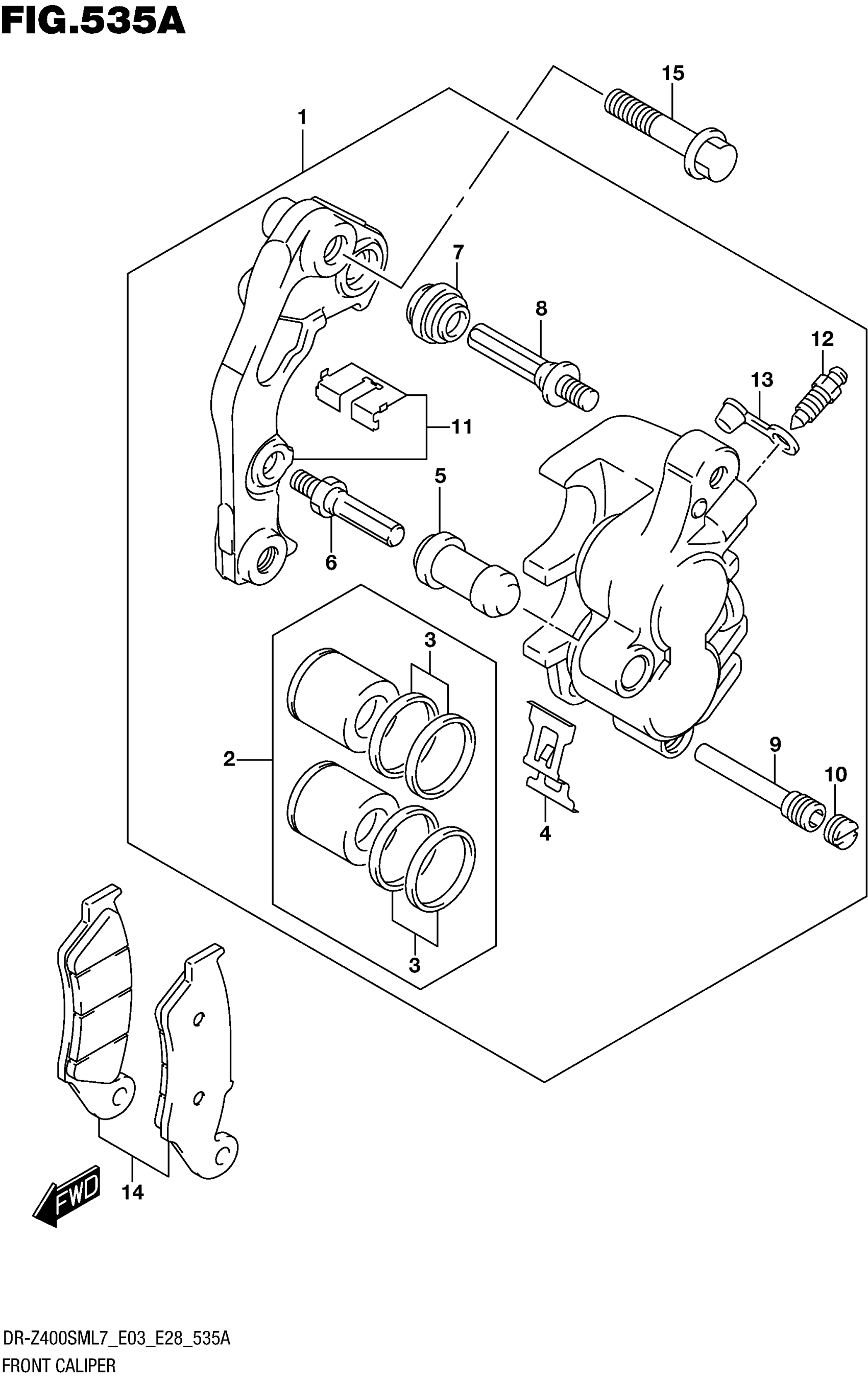

Suzuki DR-Z400SML7 (2017) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT LH

59300-29F01-999

$588.92

2

.PISTON SET

59300-27840

$45.51

3

..SEAL SET, PISTON

59300-13820

$21.18

4

.SPRING

59315-13E00

$13.89

5

.BOOT

59386-13A00

$7.28

6

.PIN

59382-14500

$8.43

7

.BOOT

59303-14500

$5.06

8

.PIN

59305-27C00

$26.52

9

.PIN

59345-13E00

$13.13

10

.PLUG

59146-21E10

$5.62

11

.BRACKET

59350-29F00

$159.27

12

.BLEEDER

59121-01A00

$7.99

13

.CAP

59122-01A00

$3.97

14

PAD SET

59300-29860

$37.01

15

BOLT (8X40)

09103-08338

$2.80
