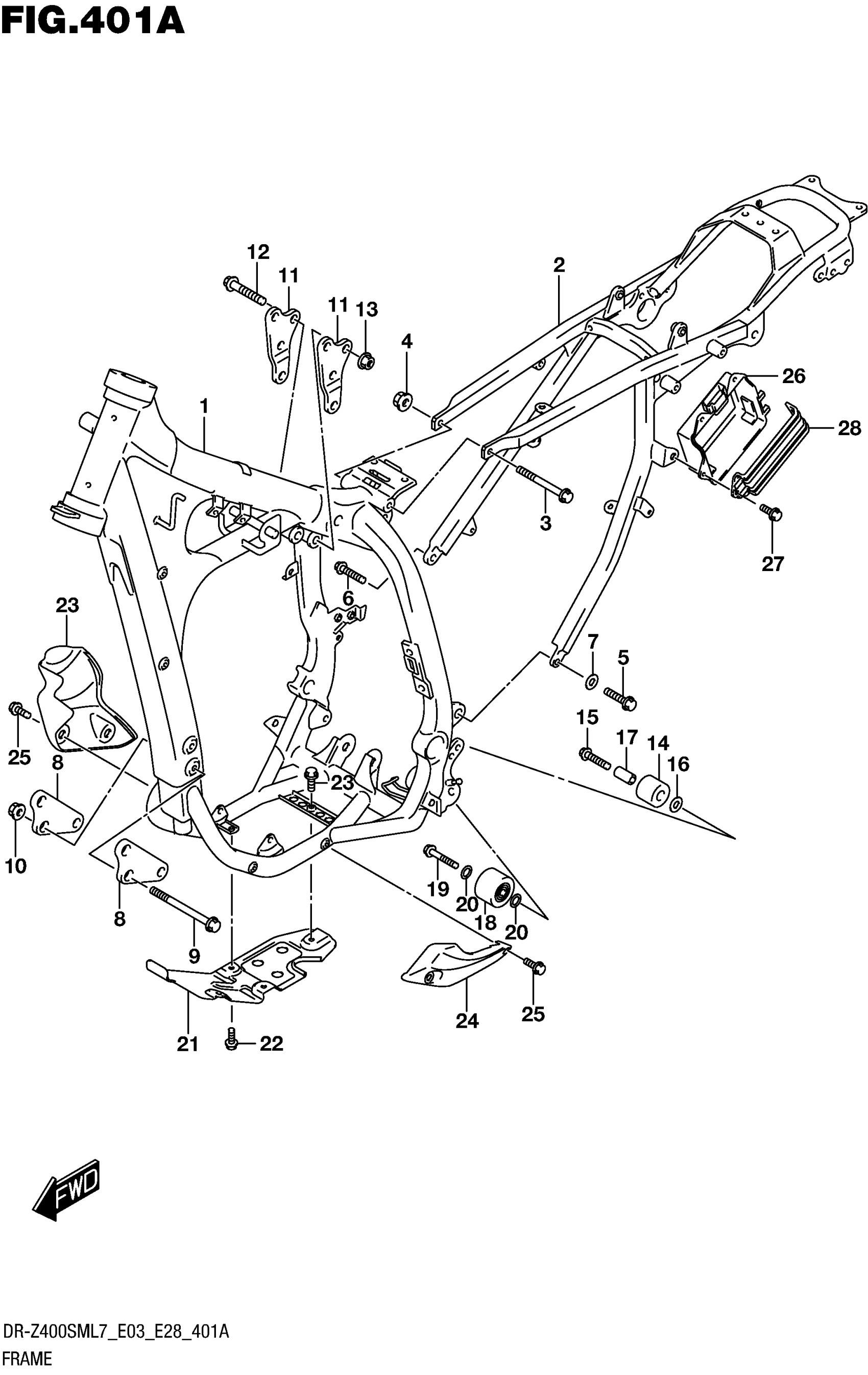

Suzuki DR-Z400SML7 (2017) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-29F90-019

$3,163.37

2

RAIL, SEAT

41200-29F70

$1,453.65

3

BOLT (8X115) | UPPER

09103-08098

$4.20

4

NUT

08319-3108A

$2.31

5

BOLT (8X18) | LH

09104-08035

$2.71

6

BOLT (8X20) | RH

09103-08364

$3.48

7

WASHER (8.5X18X2)

09160-08120

$2.21

8

PLATE, ENGINE MOUNT FRONT

41911-29F20

$34.50

9

BOLT (8X90)

09103-08550

$6.12

10

NUT

08319-3108A

$2.31

11

PLATE, ENGINE MOUNT REAR

41993-29F10

$36.12

12

BOLT (8X50)

09103-08081

$4.03

13

NUT

08319-3108A

$2.31

14

ROLLER CHAIN CONTROL UPR

43911-13E00

$20.56

15

BOLT (8X41)

09103-08083

$3.38

16

WASHER

08211-08201

$2.06

17

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

18

ROLLER, CHAIN LOWER

43910-27C11

$72.98

19

BOLT (8X41)

09103-08083

$3.38

20

SHIM (8X12X1)

09181-08111

$1.95

21

PROTECTOR, ENGINE

42510-29F00

$154.63

22

BOLT

01550-0612A

$1.97

23

GUARD, WATER PUMP

42521-29F00

$23.50

24

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

Unavailable

25

BOLT (8X16.5)

09111-08087

$2.79

26

HOLDER, BATTERY

41541-29F00

$76.43

27

BOLT (6X17.8)

09111-06072

$2.01

28

BAND

41561-29F00

$19.30
