Description

Price

1

CLEANER, AIR

13701-29FB2

$275.31

2

.FILTER, AIR CLEANER

13780-44E00

$36.50

3

.HOLDER, FILTER

13791-44E00

$14.51

4

.SPACER

13796-44E00

$3.46

5

.SPRING

13941-29F00

$33.40

6

.TUBE, OUTLET

13881-29FB0

$76.79

7

.CLAMP, OUTLET TUBE

13826-29F00

$7.85

8

.CLAMP

09402-64203

$6.12

9

.VALVE

13872-29F00

$9.79

10

.TUBE, INLET

13891-29FA0

$44.60

11

.JOINT, BREATHER HOSE

13858-14D20

$7.11

12

.GASKET, AIR CLEANER

13746-29F00

$5.49

13

CAP, AIR CLEANER (GRAY)

13740-29FB1-YUD

$191.93

14

BOLT

01547-0616A

$2.09

15

BOLT (6X14.6)

09111-06054

$4.02

16

TUBE BREATHER This part replaces 13850-29FA1.

13850-29FA2

$16.03

17

CLIP

09401-14101

$2.44

18

TAPE, CAP AIR CLEANER

68145-29FJ0-A81

$37.78

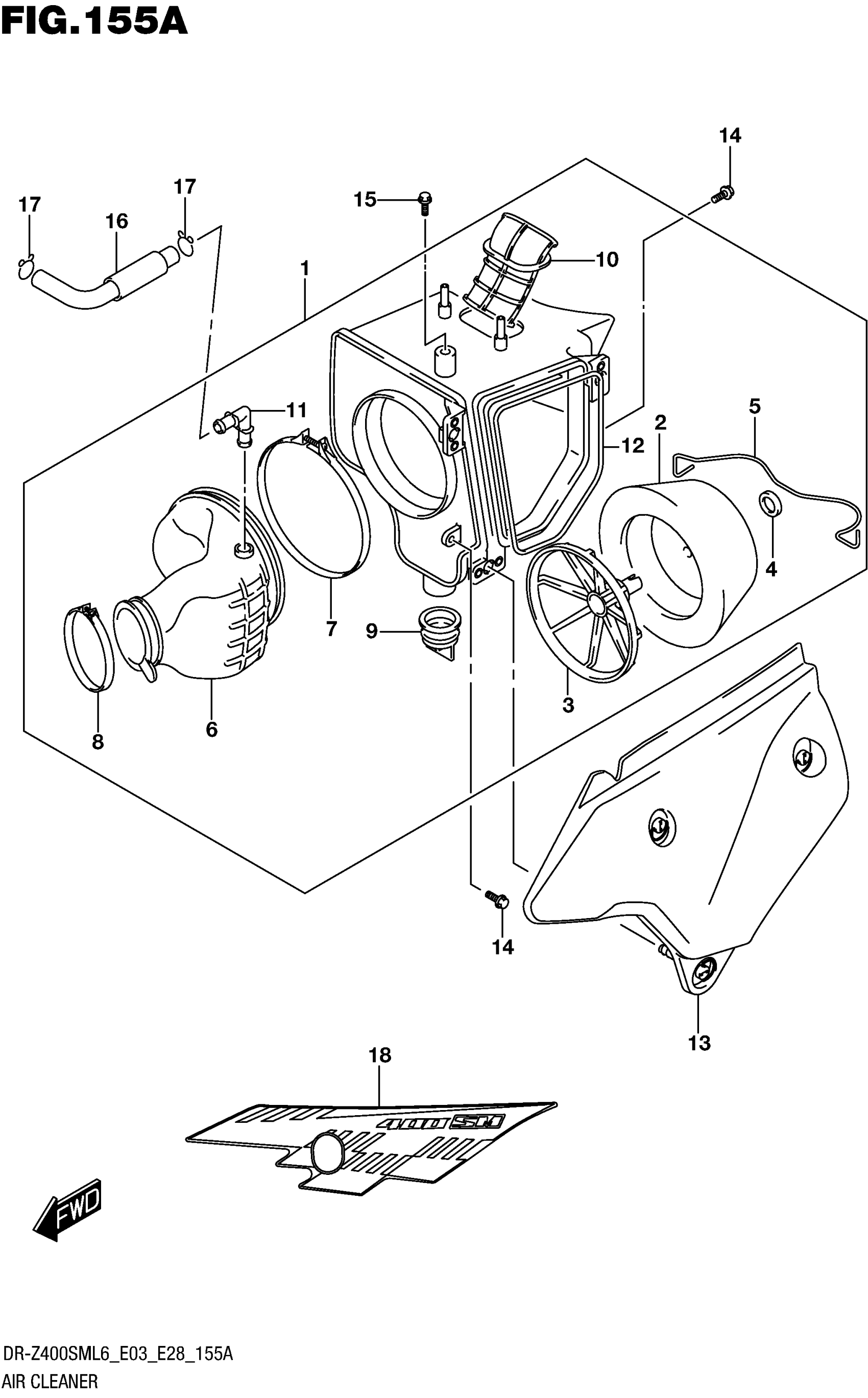

Suzuki DR-Z400SML6 (2016) AIR CLEANER Diagram
