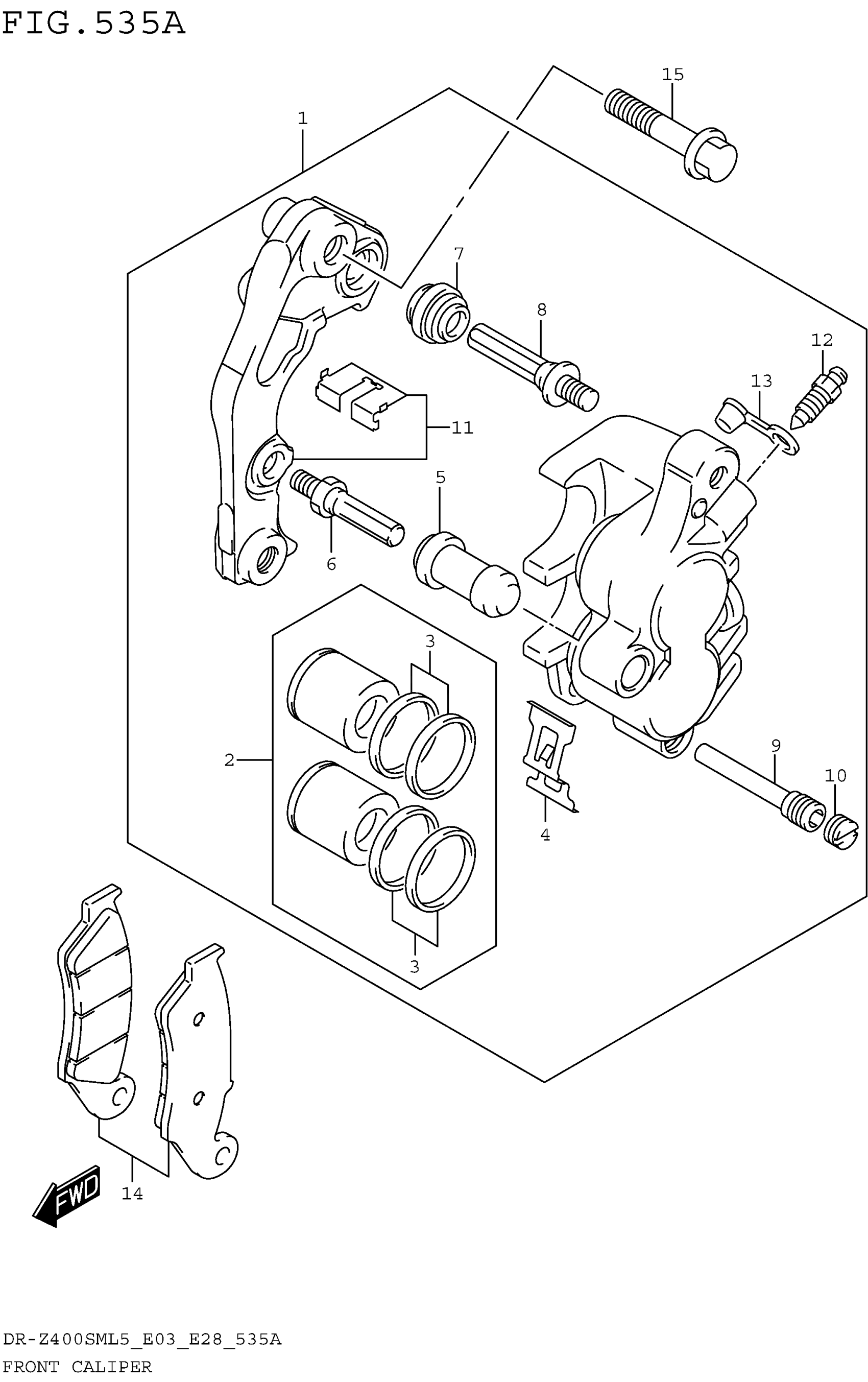

Find the part on the Front Caliper diagram for your 2015 Suzuki DR-Z400SML5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DR-Z400SML5 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT LH

59300-29F01-999

1

$588.92

In stock

2

PISTON SET

59300-27840

1

$49.57

In stock

3

SEAL SET, PISTON

59300-13820

1

$21.18

In stock

4

SPRING

59315-13E00

1

$15.12

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-14500

1

$9.18

In stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-27C00

1

$26.52

In stock

9

PIN

59345-13E00

1

$14.31

In stock

10

PLUG

59146-21E10

1

$6.13

In stock

11

BRACKET

59350-29F00

1
Out of stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

PAD SET

59300-29860

1

$40.04

In stock

15

BOLT (8X40)

09103-08338

2

$2.92

In stock
