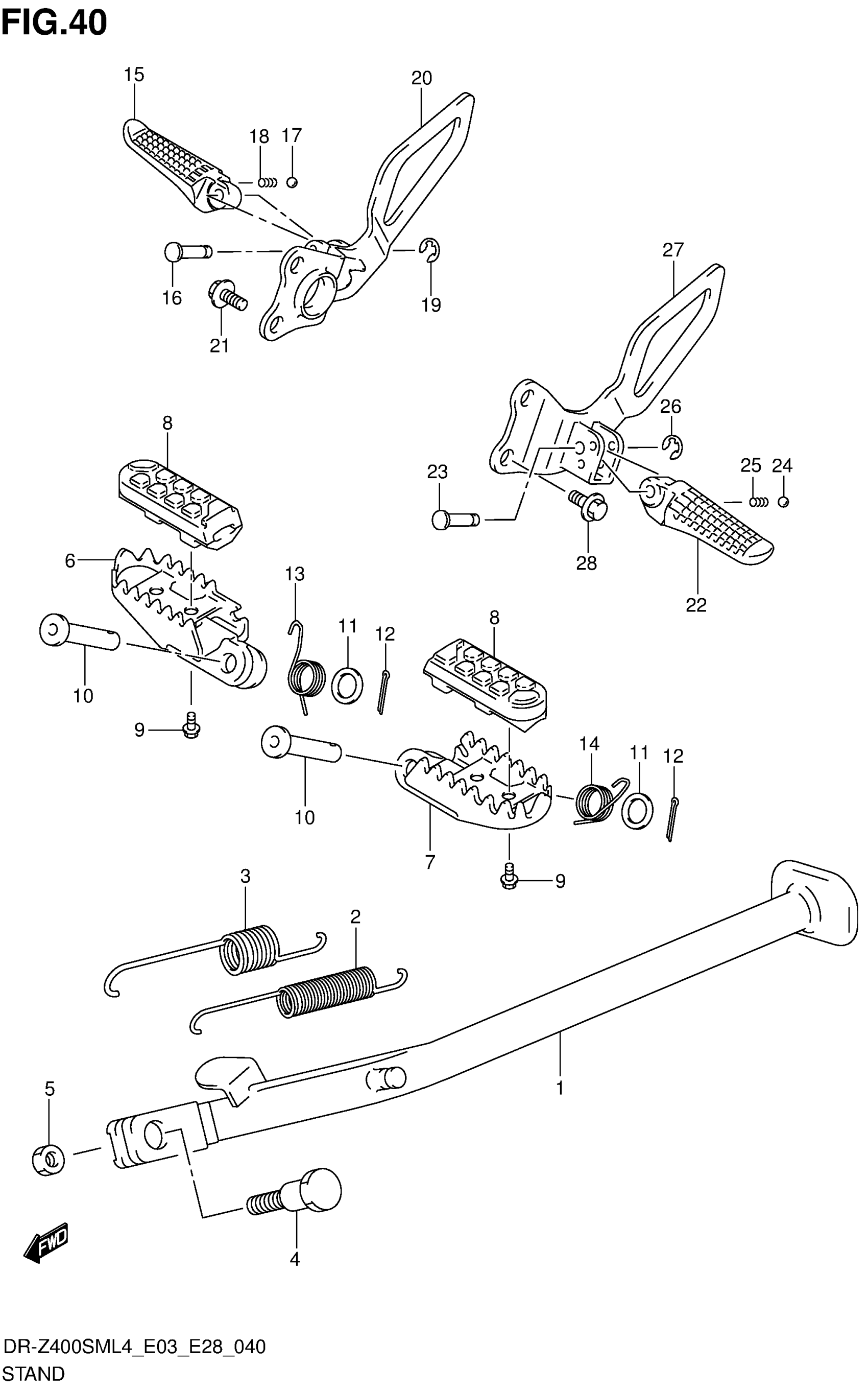

Suzuki DR-Z400SML4 (2014) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-29F20

$166.20

2

SPRING | INNER

09443-15046

$7.62

3

SPRING | OUTER

09443-22017

$6.99

4

BOLT (10X33)

09111-10060

$3.71

5

NUT, PROP STAND

42321-03FK0

$4.73

6

FOOTREST, RH

43550-29E01

$125.27

7

FOOTREST, LH

43560-29E01

$122.90

8

RUBBER, FOOTREST

43530-29F00

$28.53

9

BOLT

01547-0510A

$2.77

10

PIN (10X41.5)

09200-10019

$6.16

11

WASHER

08322-0110B

$2.37

12

COTTER PIN

04111-2520A

$1.22

13

SPRING | RH

09448-18030

$4.84

14

SPRING | LH

09448-18029

$4.84

15

BAR, PILLION FOOTREST RH

43611-33E11

$62.80

16

PIN

87259-85510

$4.89

17

BALL

06111-07004

$1.22

18

SPRING

09440-05005

$1.45

19

E-RING

08332-1104B

$1.80

20

BRACKET, PILLION RH

43650-29F20

$98.10

21

BOLT

01550-0816B

$2.75

22

BAR, PILLION FOOTREST LH

43621-33E11

$62.80

23

PIN

87259-85510

$4.89

24

BALL

06111-07004

$1.22

25

SPRING

09440-05005

$1.45

26

E-RING

08332-1104B

$1.80

27

BRACKET, PILLION LH

43750-29F00

$87.55

28

BOLT

01550-0816B

$2.75
