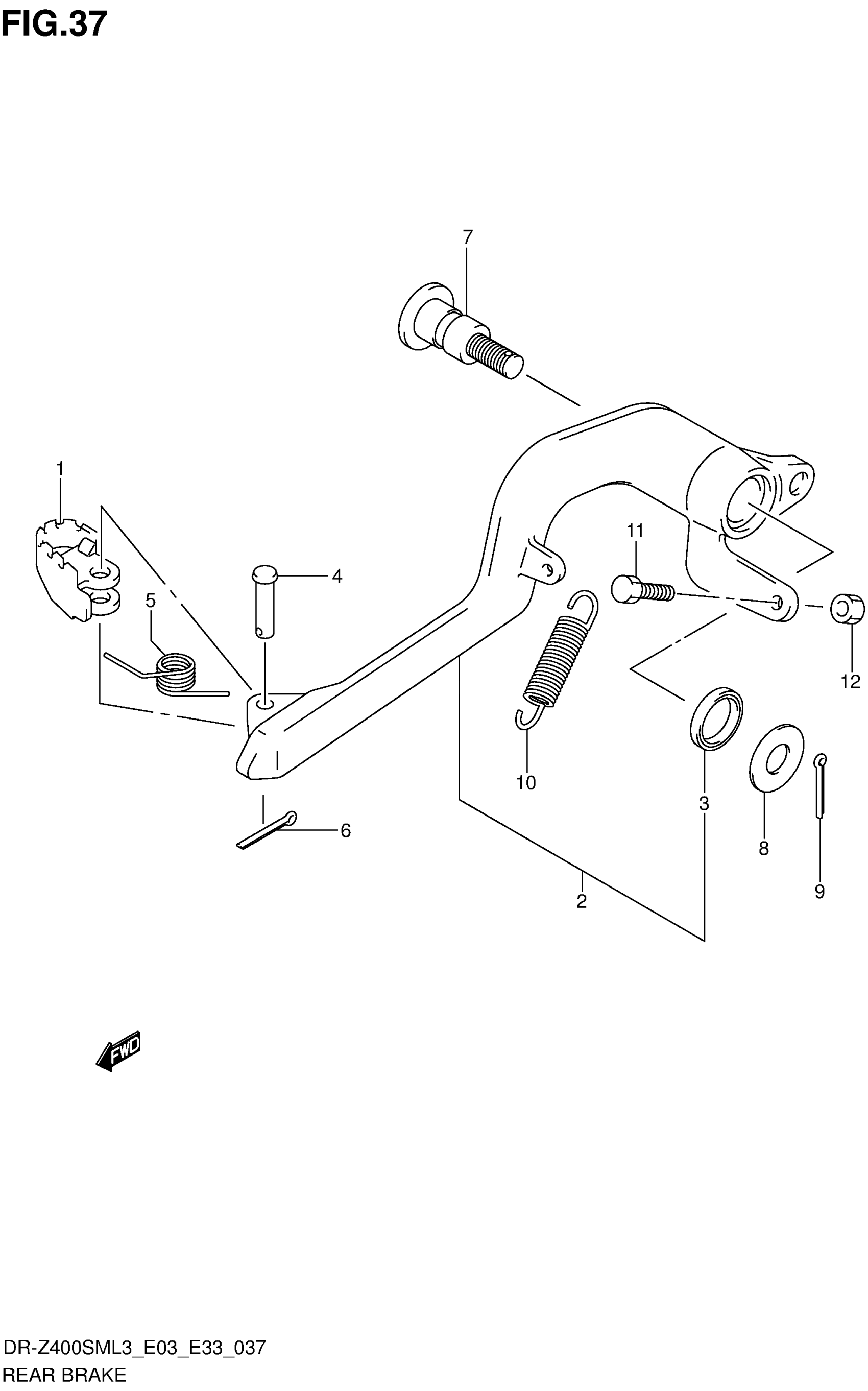

Suzuki DR-Z400SML3 (2013) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-43D00

$17.32

2

ARM, BRAKE PEDAL

43120-29F10

$279.42

3

OIL SEAL (15X21X3)

09284-15006

$3.31

4

PIN

09200-06062

$2.19

5

SPRING

09444-11006

$3.01

6

COTTER PIN

04111-2015A

$1.25

7

SHAFT, BRAKE PEDAL

43142-27C00

$22.07

8

WASHER

08211-10261

$2.10

9

COTTER PIN

04111-2020A

$1.25

10

SPRING

09443-11033

$4.19

11

BOLT (6X30)

09104-06004

$4.62

12

NUT

08310-0006B

$2.44
