2013 Suzuki DR-Z400SML3 Front Fork Damper Diagram

← All diagrams

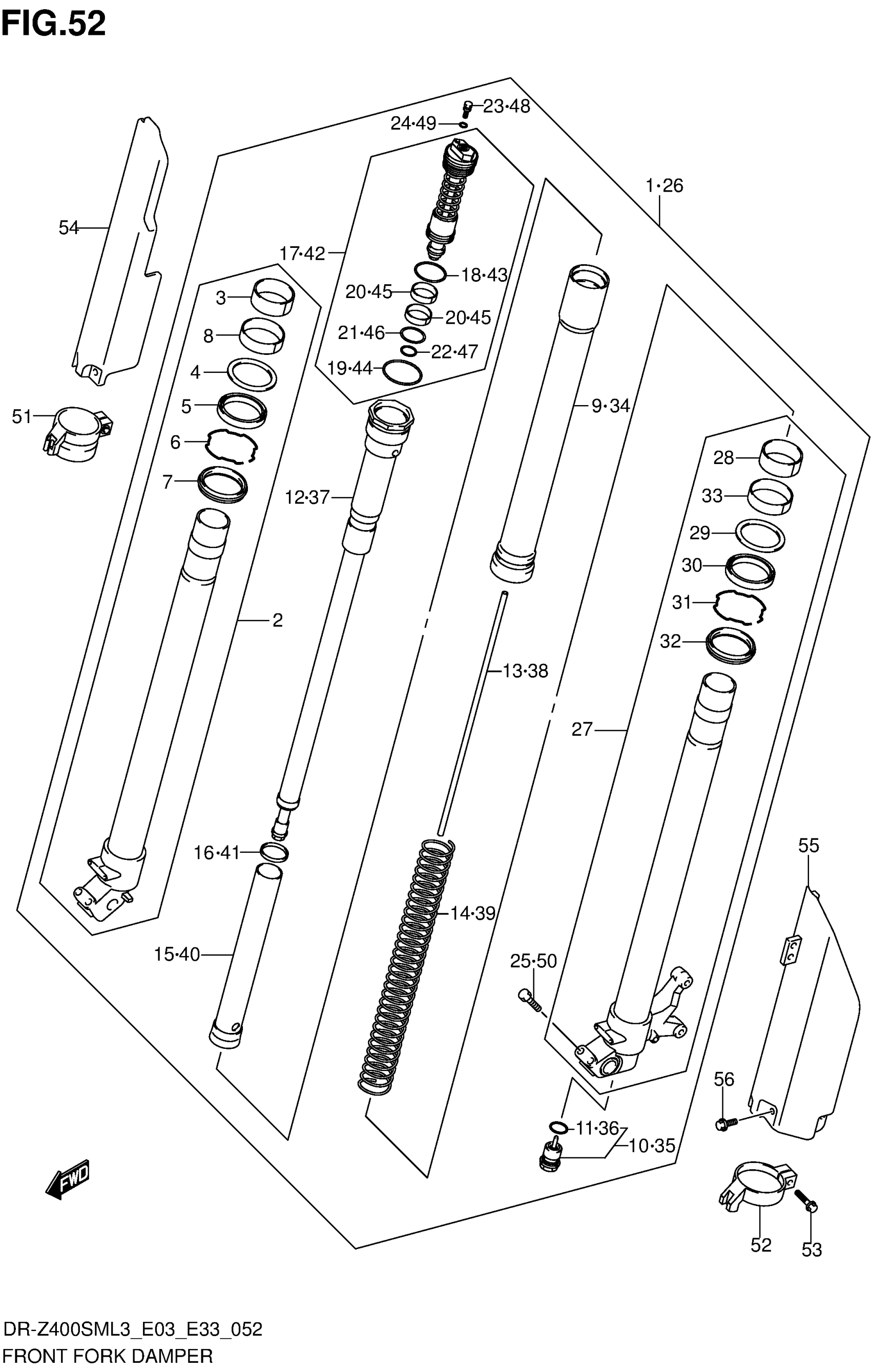

Find the part on the Front Fork Damper diagram for your 2013 Suzuki DR-Z400SML3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki DR-Z400SML3 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-29F70

1
Out of stock

2

TUBE, INNER

51110-29F70

1
Out of stock

3

BUSH, GUIDE

51167-36F00

1
Out of stock

4

SPACER, SEAL

51158-36F00

1
Out of stock

5

OIL SEAL

51153-37F80

1
Out of stock

6

RING, STOPPER

51156-27C40

1
Out of stock

7

SEAL, DUST

51173-37F80

1
Out of stock

8

BUSH, SLIDE

51121-36F00

1
Out of stock

9

TUBE, OUTER

51130-29F70

1
Out of stock

10

BOLT, CENTER

51170-37F70

1
Out of stock

11

O RING

51177-36E20

1
Out of stock

12

ROD, FRONT DAMPER

51190-29F70

1
Out of stock

13

ROD, PUSH

51191-29F70

1
Out of stock

14

SPRING, FRONT

51171-29F70

1
Out of stock

15

COLLAR, SPRING

51198-37F70

1
Out of stock

16

SEAT, SPRING

51178-29F70

1
Out of stock

17

BOLT, FORK

51351-29F70

1
Out of stock

18

O RING

51117-37F80

1

$7.83

In stock

19

O RING

51118-37F80

1

$7.83

In stock

20

BUSH

51123-28E30

2
Out of stock

21

O RING

51174-36E40

1
Out of stock

22

O RING

51175-36E20

1
Out of stock

23

..BOLT,PLUG

51357-36F20

1
Out of stock

24

...O-RING

51358-28E30

1
Out of stock

25

BOLT

51166-35F00

2
Out of stock

26

DAMPER ASSY, FRONT FORK LH

51104-29F70

1
Out of stock

27

TUBE, INNER

51120-29F70

1
Out of stock

28

BUSH, GUIDE

51167-36F00

1
Out of stock

29

SPACER, SEAL

51158-36F00

1
Out of stock

30

OIL SEAL

51153-37F80

1
Out of stock

31

RING, STOPPER

51156-27C40

1
Out of stock

32

SEAL, DUST

51173-37F80

1
Out of stock

33

BUSH, SLIDE

51121-36F00

1
Out of stock

34

TUBE, OUTER

51130-29F70

1
Out of stock

35

BOLT, CENTER

51170-37F70

1
Out of stock

36

O RING

51177-36E20

1
Out of stock

37

ROD, FRONT DAMPER

51190-29F70

1
Out of stock

38

ROD, PUSH

51191-29F70

1
Out of stock

39

SPRING, FRONT

51171-29F70

1
Out of stock

40

COLLAR, SPRING

51198-37F70

1
Out of stock

41

SEAT, SPRING

51178-29F70

1
Out of stock

42

BOLT, FORK

51351-29F70

1
Out of stock

43

O RING

51117-37F80

1

$7.83

In stock

44

O RING

51118-37F80

1

$7.83

In stock

45

BUSH

51123-28E30

2
Out of stock

46

O RING

51174-36E40

1
Out of stock

47

O RING

51175-36E20

1
Out of stock

48

..BOLT,PLUG

51357-36F20

1
Out of stock

49

...O-RING

51358-28E30

1
Out of stock

50

BOLT

51166-35F00

2
Out of stock

51

GUIDE, PROTECTOR RH

51220-36E61

1
Out of stock

52

GUIDE, PROTECTOR LH

51210-36E61

1
Out of stock

53

BOLT

01547-06207

2
Out of stock

54

PROTECTOR RH (BLACK)

51501-29F70-019

1
Out of stock

55

PROTECTOR LH (BLACK)

51511-29F70-019

1
Out of stock

56

BOLT (6X10)

09103-06256

6
Out of stock
