Description

Price

1

CRANKSHAFT ASSY This part replaces 12200-07G02.

12200-33H00

$1,017.55

2

.CONNECTING ROD This part replaces 12160-29F02-0B0.

12160-29F10-0B0

$235.72

3

.PIN, CRANK This part replaces 12210-29F11.

12210-29F20

$112.45

4

.BEARING (35X43X22) This part replaces 09263-35044-0B0.

09263-35047-0B0

$116.53

5

CRANKSHAFT, RH

12221-07G01

Unavailable

6

CRANKSHAFT, LH

12261-07G00

Unavailable

7

GEAR, CRANK BALANCER DRIVE

12661-29F00

$162.25

8

PIN

09261-05005

$1.43

9

BEARING (30X72X18)

09262-30100

$95.25

10

OIL SEAL, RH (14X24X6)

09282-14003

$7.44

11

RETAINER, CRANKSHAFT OIL SEAL RH

24742-18A00

$4.92

12

SCREW

02112-0612A

$1.43

13

SPROCKET, CAM CHAIN DRIVE

12731-29F10

$70.33

14

GEAR, PRIMARY DRIVE

21111-29F10

$91.67

15

NUT

09140-18012

$7.55

16

WASHER (18.3X31.5X1.2)

09164-18008

$3.84

17

KEY

09421-05002

$3.57

18

PISTON

12111-29F00-0F0

$146.60

19

RING SET, PISTON

12140-29F00

$52.90

20

PIN, PISTON

12151-24F10

$18.17

21

CIRCLIP

09381-20004

$1.64

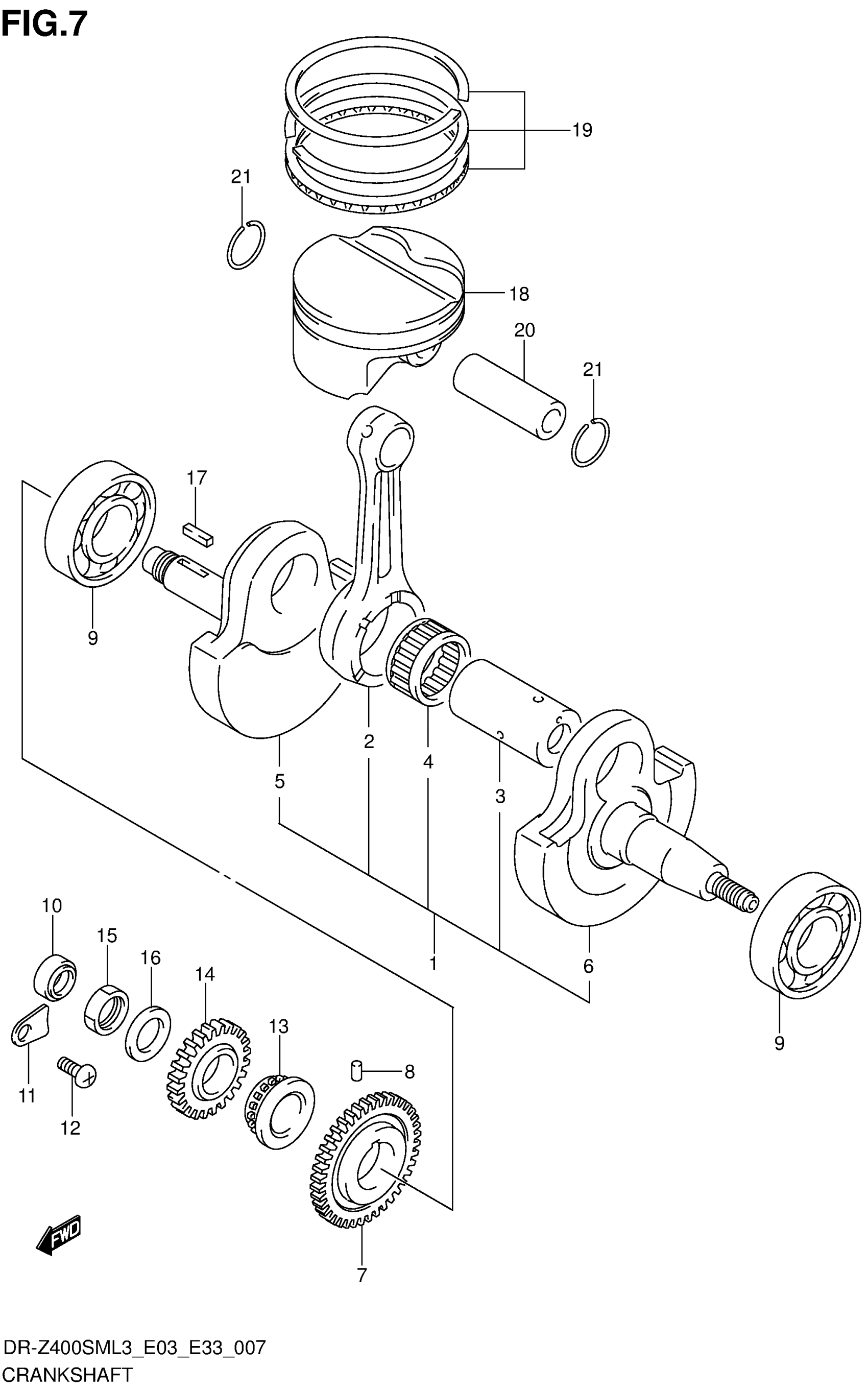

Suzuki DR-Z400SML3 (2013) CRANKSHAFT Diagram
