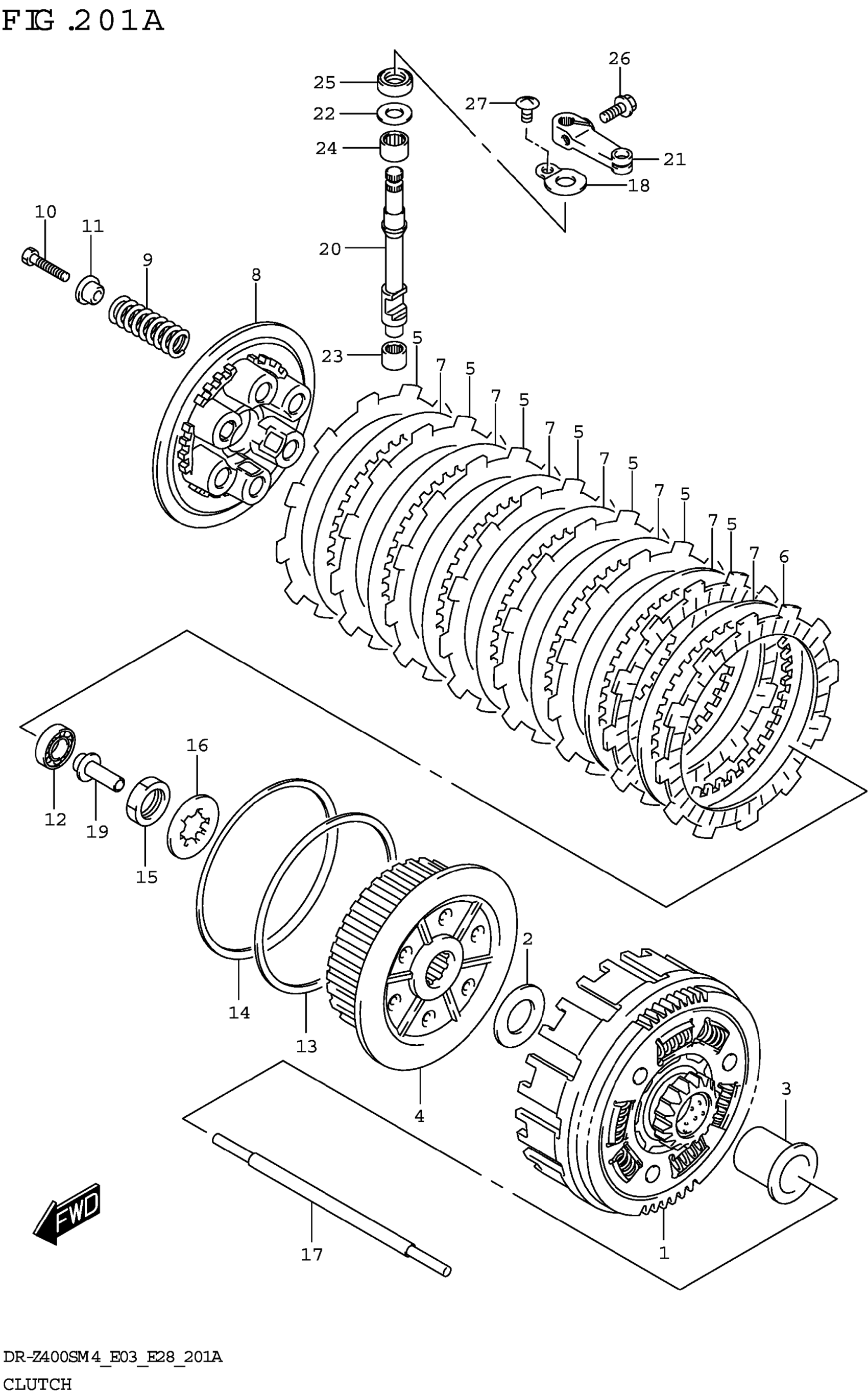

Suzuki DR-Z400SM4 (2024) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY PRIMARY DRIVEN (NT: | 4/16)

21200-29F10

$452.18

2

WASHER

08211-22425

$6.35

3

SPACER PRIMARY DRIVEN GEAR

21251-29F00

$60.03

4

HUB CLUTCH SLEEVE

21410-29F00

$161.65

5

PLATE CLUTCH DRIVE NO.1 (T:3. | )

21441-29F00

$20.86

6

PLATE CLUTCH DRIVE NO.2 (T:3. | )

21442-29F00

$20.86

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$10.33

8

DISC CLUTCH PRESSURE

21462-29F00

$70.88

9

SPRING CLUTCH

21413-29F00

$6.12

10

BOLT

07130-0630A

$4.03

11

WASHER

21414-29F00

$5.88

12

BEARING (12X28X8)

09262-12001

$16.90

13

WASHER (112X122X1)

09160-00003

$9.32

14

WASHER (113X122X2.3)

09164-00008

$17.02

15

NUT

09140-20001

$3.04

16

WASHER LOCK (22X42X0.8)

09167-22021

$1.82

17

ROD CLUTCH PUSH

23110-29F00

$26.52

18

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.80

19

PIECE CL PUSH

23121-29F00

$29.48

20

CAMSHAFT CLUTCH RELEASE

23122-29F00

$64.22

21

ARM CLUTCH RELEASE

23271-20902

$27.09

22

SHIM (10X20X1)

09181-10195

$2.00

23

BEARING (10X14X10)

09263-10014

$12.21

24

BEARING (12X16X10)

09263-12024

$11.44

25

SEAL,OIL (10X20X6)

09282-10012

$7.20

26

BOLT

01547-0616A

$2.01

27

SCREW

02142-0610A

$1.38
