Description

Price

1

VALVE ASSY 2ND AIR

18450-29F02

$128.75

2

BOLT

01547-0675A

$3.67

3

.BOLT

01550-0660A

$2.80

4

SPACER 2ND AIR VALVE FR

18611-29F00

$11.73

5

SPACER 2ND AIR VALVE RR

18612-29F00

$10.42

6

HOSE 2ND AIR CLEANER JT

18712-29F01

Unavailable

7

HOSE 2ND AIR CLEANER

18711-29F01

$7.25

8

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$9.35

9

CLEANER 2ND AIR

18700-29F00

$21.98

10

CLIP (ID:15.5)

09401-15101

$2.28

11

HOSE 2ND AIR VALVE

18461-29F00

$23.48

12

CLIP (ID:13.5)

09401-13409

$2.13

13

PIPE 2ND AIR

18410-29F10

$47.27

14

GASKET 2ND AIR PIPE

18441-45C01

$6.45

15

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

16

HOSE (3.5X7.5X600) This part replaces 09355-35755-600.

09355-35007-600

$6.35

17

CLAMP (L:165)

09407-18402

$2.21

18

CLAMP (L:45)

09404-06429

$1.82

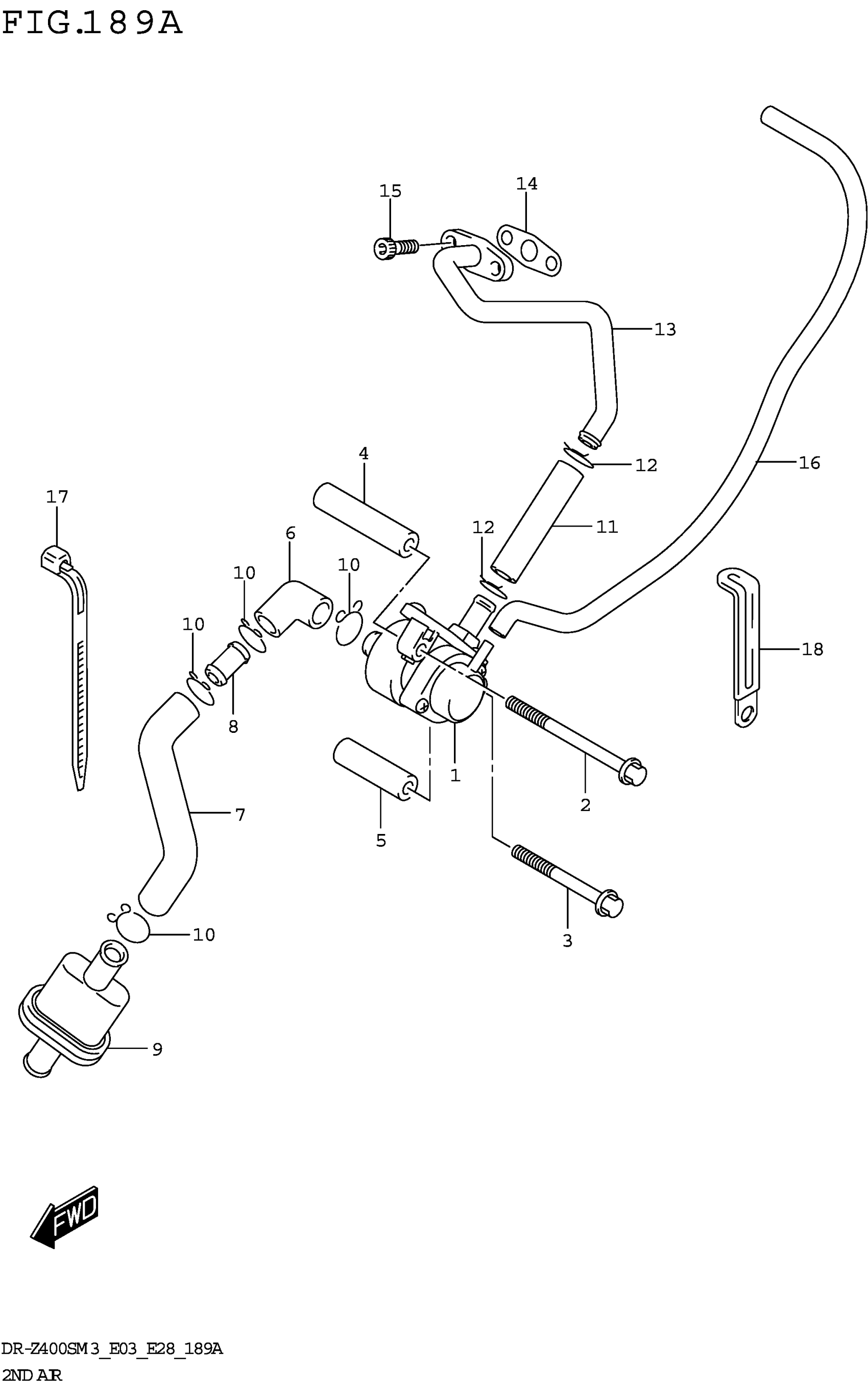

Suzuki DR-Z400SM3 (2023) 2ND AIR Diagram
