2021 Suzuki DR-Z400SM1 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2021 Suzuki DR-Z400SM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

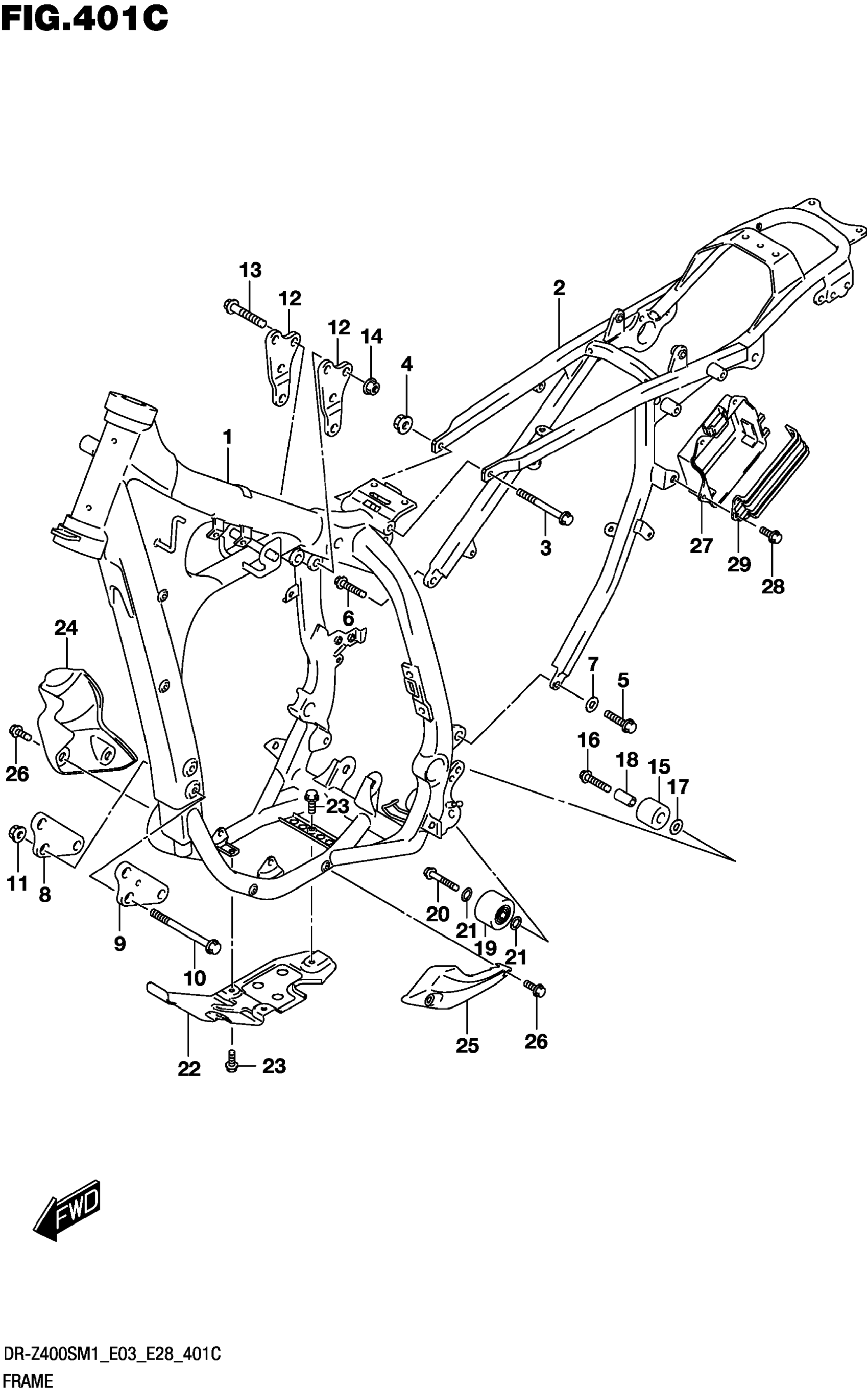

2021 Suzuki DR-Z400SM1 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

FRAME (GLAY)

41100-29F90-YPT

1
Out of stock

1-2

FRAME (BLACK)

41100-29F90-019

1
Out of stock

2

RAIL SEAT

41200-29F70

1
Out of stock

3

BOLT (8X115)

09103-08098

1
Out of stock

4

NUT

08319-3108A

1
Out of stock

5

BOLT (8X20)

09103-08364

1
Out of stock

6

BOLT (8X18)

09104-08035

1
Out of stock

7

WASHER (8.5X18X2.0)

09160-08120

2
Out of stock

8

PLATE ENG MTG FRONT

41911-29F20

1
Out of stock

9

PLATE ENG MTG FRONT L

41911-29F30

1
Out of stock

10

BOLT (8X90)

09103-08550

2
Out of stock

11

NUT

08319-3108A

2
Out of stock

12

PLATE HEAD MTG RR

41993-29F10

2
Out of stock

13

BOLT (8X50)

09103-08081

2
Out of stock

14

NUT

08319-3108A

2
Out of stock

15

ROLLER CHAIN CONTROL UPR

43911-13E00

1
Out of stock

16

BOLT (8X41)

09103-08083

1
Out of stock

17

WASHER

08211-08201

1
Out of stock

18

SPACER (8.6X12.2X26.5)

09180-08215

1
Out of stock

19

ROLLER CHAIN

43910-27C11

1
Out of stock

20

BOLT (8X41)

09103-08083

1
Out of stock

21

SHIM (8X12X1)

09181-08111

2
Out of stock

22

PROTECTOR ENGINE

42510-29F00

1
Out of stock

23

BOLT

01550-0612A

4
Out of stock

24

GUARD WATER PUMP

42521-29F00

1
Out of stock

25

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

1
Out of stock

26

BOLT (8X16.5)

09111-08087

4
Out of stock

27

HOLDER BATTERY

41541-29F00

1
Out of stock

28

BOLT (6X17.8)

09111-06072

3
Out of stock

29

BAND BATTERY HOLDER

41561-29F00

1
Out of stock
