2021 Suzuki DR-Z400SM1 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2021 Suzuki DR-Z400SM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

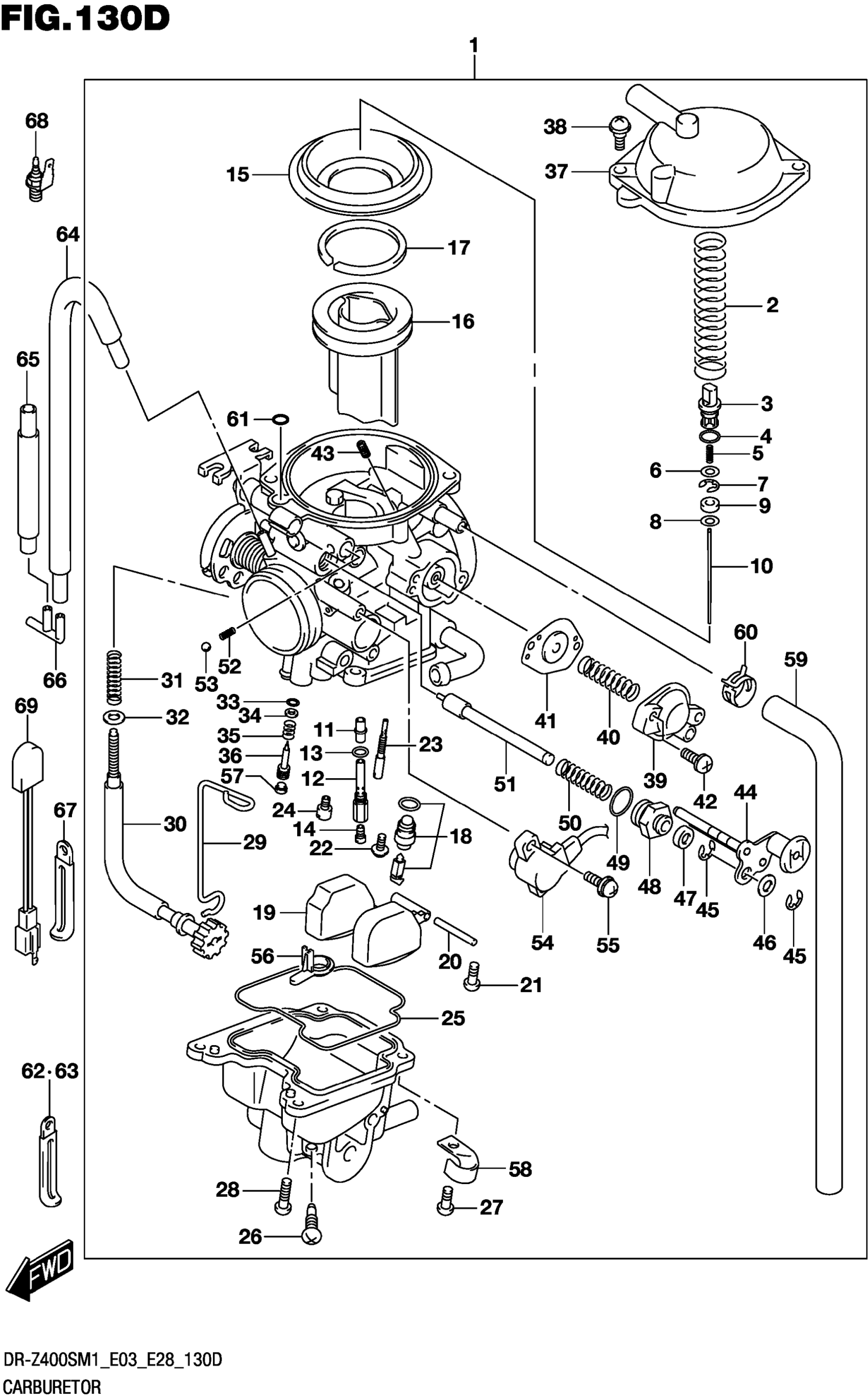

2021 Suzuki DR-Z400SM1 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

13200-29FR0

1
Out of stock

2

.SPRING

13573-07F00

1
Out of stock

3

.HOLDER

13418-33E00

1

$5.66

In stock

4

O-RING (D:1.9 ID:4.8)

09280-05004

1

$2.50

In stock

5

.SPRING

13481-04F00

1

$3.55

In stock

6

.WASHER

13382-19E00

1
Out of stock

7

1

$2.19

In stock

8

.RING

13387-13F00

1

$8.14

In stock

9

.WASHER

13291-29FA0

1
Out of stock

10

.NEEDLE JET (5DH78)

13383-29FR0

1
Out of stock

11

.JET (P-0M)

09494-00939

1
Out of stock

12

.HOLDER JET

13385-29FA0

1
Out of stock

13

.O RING

13246-43011

1
Out of stock

14

.JET MAIN (#140)

09491-28011

1
Out of stock

15

.DIAPHRAGM

13507-17C02

1
Out of stock

16

.VALVE PISTON

13501-29FA0

1
Out of stock

17

.RING

13504-14E00

1
Out of stock

18

.VALVE ASSY NEEDLE

13370-29FA1

1
Out of stock

19

.FLOAT ASSY

13250-04F00

1

$34.63

In stock

20

.PIN, FLOAT

13254-01010

1

$4.80

In stock

21

.SCREW

02112-0408A

1

$1.15

In stock

22

.SCREW

13602-05A10

1

$3.55

In stock

23

.JET PILOT (#22.5)

09492-22014

1
Out of stock

24

.JET MAIN (#62.5)

09491-62006

1
Out of stock

25

.GASKET

13258-04F00

1

$9.87

In stock

26

1

$4.97

In stock

27

.SCREW

02112-04107

3

$1.67

In stock

28

.SCREW

02112-0412A

1

$1.33

In stock

29

.CLIP

13671-29FA0

1
Out of stock

30

.SCREW ADJUST

13267-29FA0

1
Out of stock

31

1

$6.00

In stock

32

.WASHER

13615-43010

1
Out of stock

33

O-RING

13295-29901

1
Out of stock

34

.WASHER (14X17)

13291-29900

1
Out of stock

35

SPRING,THROTTLE SCREW

13268-48700

1

$4.33

In stock

36

.ADJUSTER (3.0)

13279-33E00

1
Out of stock

37

.COVER ASSY DIAPHRAGM

13502-29FA0

1
Out of stock

38

.SCREW

13247-33E00

2

$2.93

In stock

39

.COVER ASSY

13502-10F00

1
Out of stock

40

.SPRING

13481-41F20

1
Out of stock

41

.DIAPHRAGM ASSY

13480-10F01

1
Out of stock

42

.SCREW

13601-04148

2
Out of stock

43

.JET PILOT AIR (115)

09493-23003

1
Out of stock

44

.PLATE ASSY

13420-29FA0

1
Out of stock

45

.E-RING

13415-38300

2
Out of stock

46

.WASHER

13427-38300

1
Out of stock

47

.CAP, STARTER VALVE

13682-31210

1
Out of stock

48

.HOLDER, GUIDE

13418-44080

1
Out of stock

49

.O RING (16)

13278-47091

1
Out of stock

50

.SPRING STARTER VALVE

13417-43010

1

$4.33

In stock

51

.PLUNGER ASSY

13411-29FA0

1
Out of stock

52

.SPRING

13434-43010

1
Out of stock

53

.STEEL BALL

13596-93010

1
Out of stock

54

.SENSOR ASSY This part replaces 13580-21F00.

13580-21F01

1
Out of stock

55

.SCREW

13602-19B50

2

$3.42

In stock

56

.RING

13387-29FA1

1
Out of stock

57

.PLUG

13281-05A00

1

$4.58

In stock

58

.PLATE

13671-14D01

1
Out of stock

59

.HOSE AIR VENT (6.5X10.5)

13684-29FB1

1
Out of stock

60

.CLIP

13671-19F00

1
Out of stock

61

.O-RING

13295-33010

1
Out of stock

62

CLAMP (L:45)

09404-06429

1
Out of stock

63

1

$3.13

In stock

64

HOSE VACUUM

13682-29F00

1
Out of stock

65

HOSE

13683-29F10

1
Out of stock

66

JOINT

09367-04009

1
Out of stock

67

HEATER ASSY CARBURETOR (15W)

13650-25E01

1
Out of stock

68

THERMO SWITCH CARB HEATER

13655-16F00

1
Out of stock
