2008 Suzuki DR-Z400SM Carburetor Diagram

← All diagrams

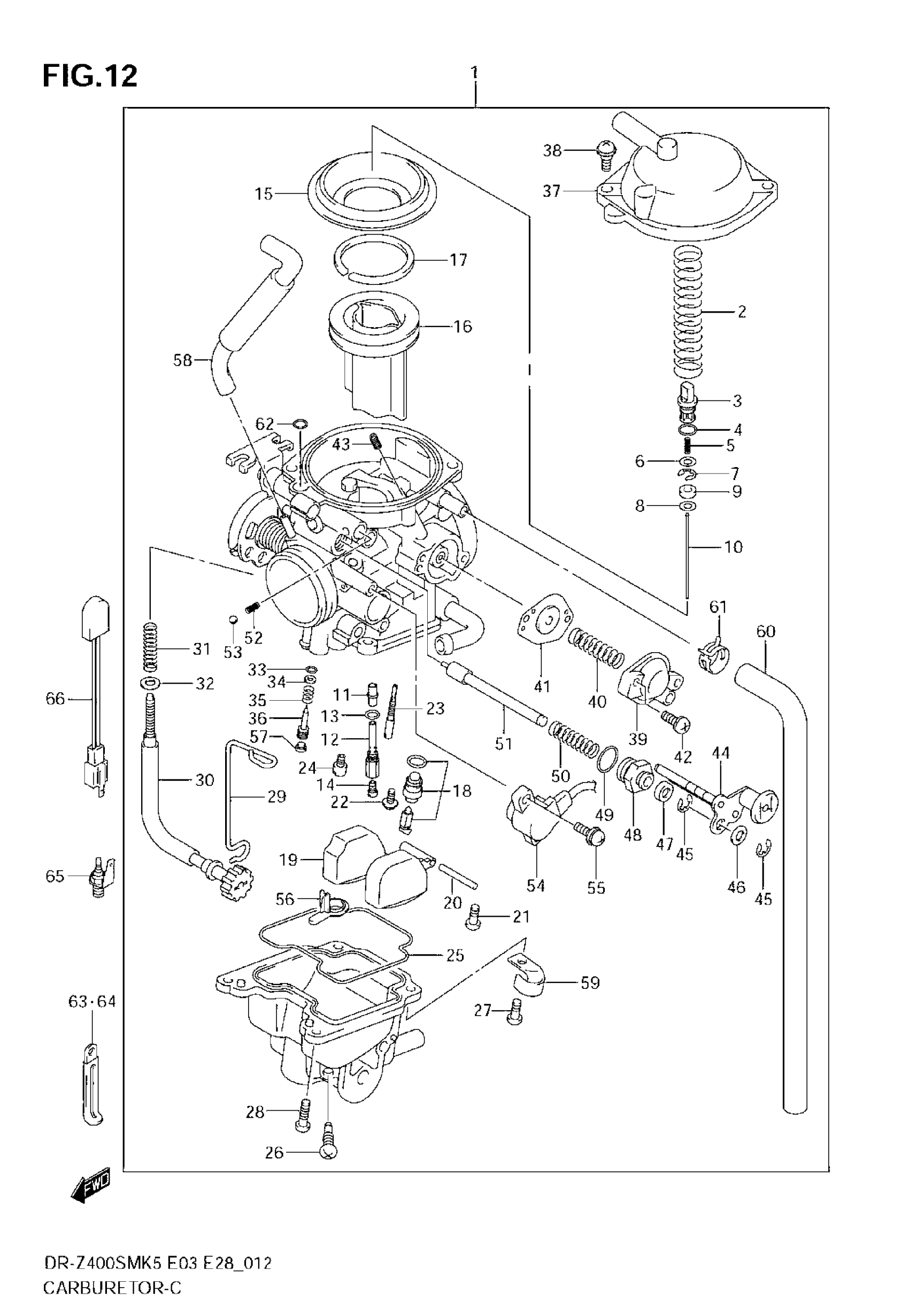

Find the part on the Carburetor diagram for your 2008 Suzuki DR-Z400SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki DR-Z400SM Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$848.58

In stock

2

SPRING

13573-07F00

1
Out of stock

3

HOLDER

13418-33E00

1

$5.66

In stock

4

O RING (D:1.9,ID:4.8)

09280-05004

1

$2.50

In stock

5

SPRING

13481-04F00

1

$3.55

In stock

6

WASHER

13382-19E00

1
Out of stock

7

E RING

13394-17E60

1

$2.19

In stock

8

RING

13387-13F00

1

$8.14

In stock

9

WASHER

13291-29FA0

1
Out of stock

10

NEEDLE, JET (5DH37-1)

13383-29FB0

1

$22.25

In stock

11

JET, NEEDLE (P-0M)

09494-00939

1
Out of stock

12

HOLDER, JET

13385-29FA0

1
Out of stock

13

.O RING This part replaces 13246-43010.

13246-43011

1
Out of stock

14

JET, MAIN (142.5)

09491-28012

1

$12.32

In stock

15

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

1
Out of stock

16

VALVE, PISTON

13501-29FA0

1
Out of stock

17

RING

13504-14E00

1
Out of stock

18

.VALVE ASSY NEEDLE This part replaces 13370-29FA0.

13370-29FA1

1
Out of stock

19

FLOAT ASSY

13250-04F00

1

$34.63

In stock

20

.PIN, FLOAT

13254-01010

1

$4.80

In stock

21

SCREW

02112-0408B

1

$2.05

In stock

22

SCREW

13602-05A10

1

$3.55

In stock

23

JET, PILOT (22.5)

09492-22014

1
Out of stock

24

JET, MAIN AIR (62.5)

09491-62006

1
Out of stock

25

O RING

13258-04F00

1

$9.87

In stock

26

1

$4.97

In stock

27

SCREW

02112-04107

3

$1.67

In stock

28

SCREW

02112-0412A

1

$1.33

In stock

29

CLIP

13671-29FA0

1
Out of stock

30

ADJUST SCREW ASSY

13267-29FA0

1
Out of stock

31

SPRING

13268-37420

1

$6.00

In stock

32

WASHER

13615-43010

1
Out of stock

33

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

34

WASHER

13291-29900

1
Out of stock

35

SPRING,THROTTLE SCREW

13268-48700

1

$4.33

In stock

36

ADJUSTER (3,1/2)

13279-33E00

1
Out of stock

37

COVER ASSY, DIAPHRAGM

13502-29FA0

1
Out of stock

38

SCREW

13247-33E00

2

$2.93

In stock

39

COVER ASSY | E3,E28

13502-10F00

1
Out of stock

39

COVER ASSY | E33

13502-08F00

1
Out of stock

40

SPRING

13481-41F20

1
Out of stock

41

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

1
Out of stock

42

SCREW

13601-04148

1
Out of stock

43

JET, PILOT AIR (135)

09492-27010

1

$19.58

In stock

44

PLATE ASSY

13420-29FA0

1
Out of stock

45

E RING

13415-38300

2
Out of stock

46

WASHER

13427-38300

1
Out of stock

47

.CAP, STARTER VALVE

13682-31210

1
Out of stock

48

.HOLDER, GUIDE

13418-44080

1
Out of stock

49

.O RING (16) This part replaces 13278-47090.

13278-47091

1
Out of stock

50

SPRING

13417-43010

1

$4.33

In stock

51

PLUNGER ASSY

13411-29FA0

1
Out of stock

52

SPRING

13434-43010

1
Out of stock

53

BALL

13596-93010

1
Out of stock

54

.SENSOR ASSY This part replaces 13580-21F00.

13580-21F01

1
Out of stock

55

SCREW

13602-19B50

2

$3.42

In stock

56

RING

13387-29FA1

1
Out of stock

57

PLUG

13281-05A00

1

$4.58

In stock

58

1

$23.81

In stock

59

.PLATE This part replaces 13671-14D00.

13671-14D01

1
Out of stock

60

.HOSE AIR VENT (6.5X10.5) This part replaces 13684-29FB0.

13684-29FB1

1
Out of stock

61

CLIP

13671-19F00

1
Out of stock

62

O RING

13295-33010

1
Out of stock

63

1

$1.86

In stock

63

CLAMP, L:45 | MODEL K6/K7/K8

09404-06429

1
Out of stock

64

CLAMP, L:120

09404-08420

1

$3.13

In stock

65

HEATER ASSY, CARBURETOR | OPT

13650-25E01

1
Out of stock

66

SWITCH, CARB HEATER THERMO | OPT

13655-16F00

1
Out of stock
