2019 Suzuki DR-Z400SL9 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2019 Suzuki DR-Z400SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

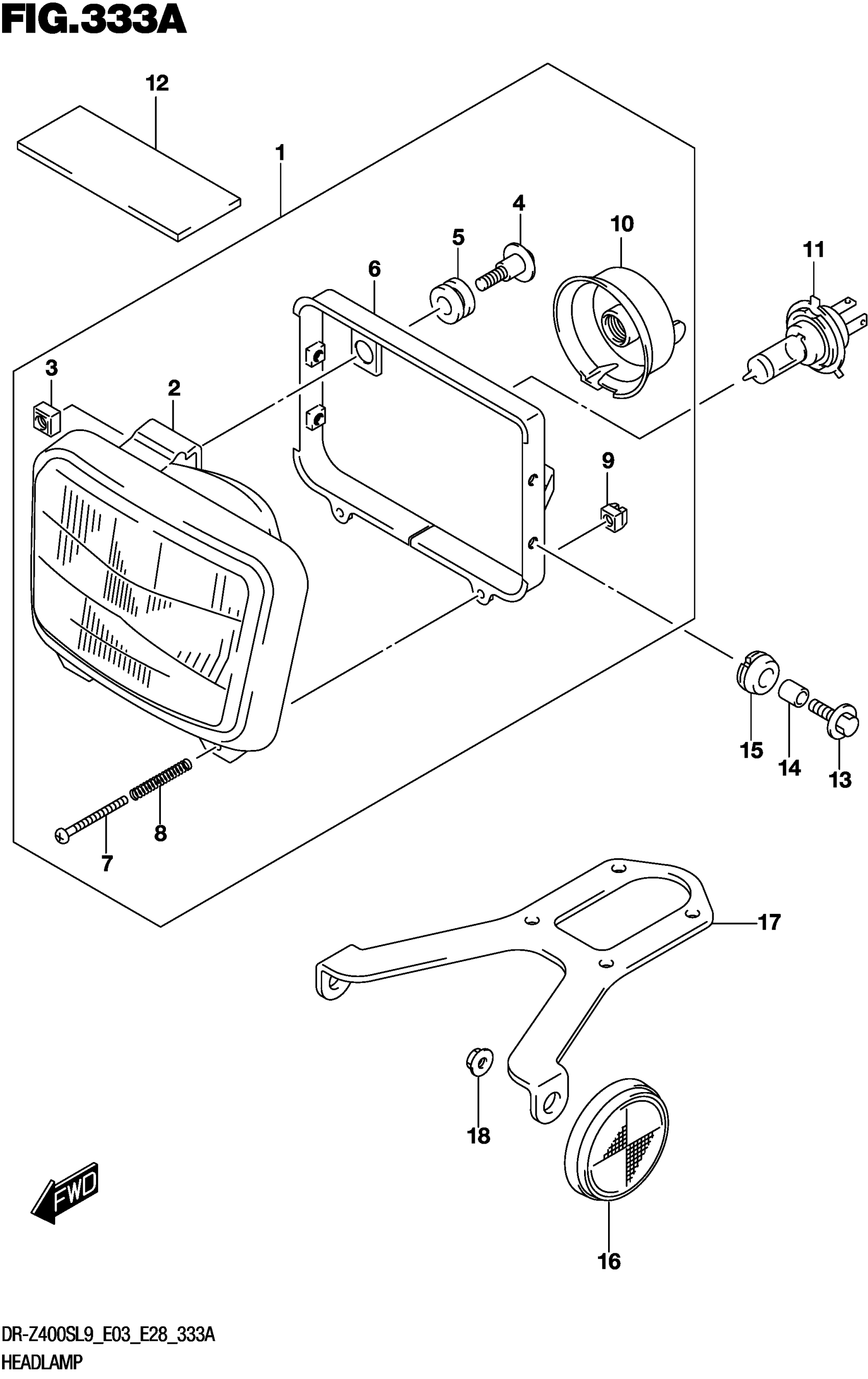

2019 Suzuki DR-Z400SL9 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-12EA0-999

1
Out of stock

2

.UNIT ASSY

35121-12EA0

1
Out of stock

3

.NUT

35135-45900

1
Out of stock

4

.SCREW MOUNTING

35136-38A00

1
Out of stock

5

.CUSHION

35139-45230

1

$2.25

In stock

6

.HOUSING

35141-12EA0

1
Out of stock

7

.SCREW ADJUSTING

35151-12EA0

2
Out of stock

8

.SPRING ADJUSTING

35154-12EA0

2
Out of stock

9

.NUT ADJUSTING

35135-12E20

2
Out of stock

10

.COVER SOCKET

35173-01440

1
Out of stock

11

1

$31.54

In stock

12

CUSHION HEADLAMP

36920-44A01

1
Out of stock

13

BOLT (6X20)

09116-06167

4

$2.35

In stock

14

SPACER (6.5X10X10)

09180-06310

4
Out of stock

15

CUSHION

09320-09018

4
Out of stock

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

1
Out of stock

17

BRACKET FRONT SIDE RR

35956-29F00

1
Out of stock

18

NUT

08316-1005B

2
Out of stock
