2019 Suzuki DR-Z400SL9 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2019 Suzuki DR-Z400SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

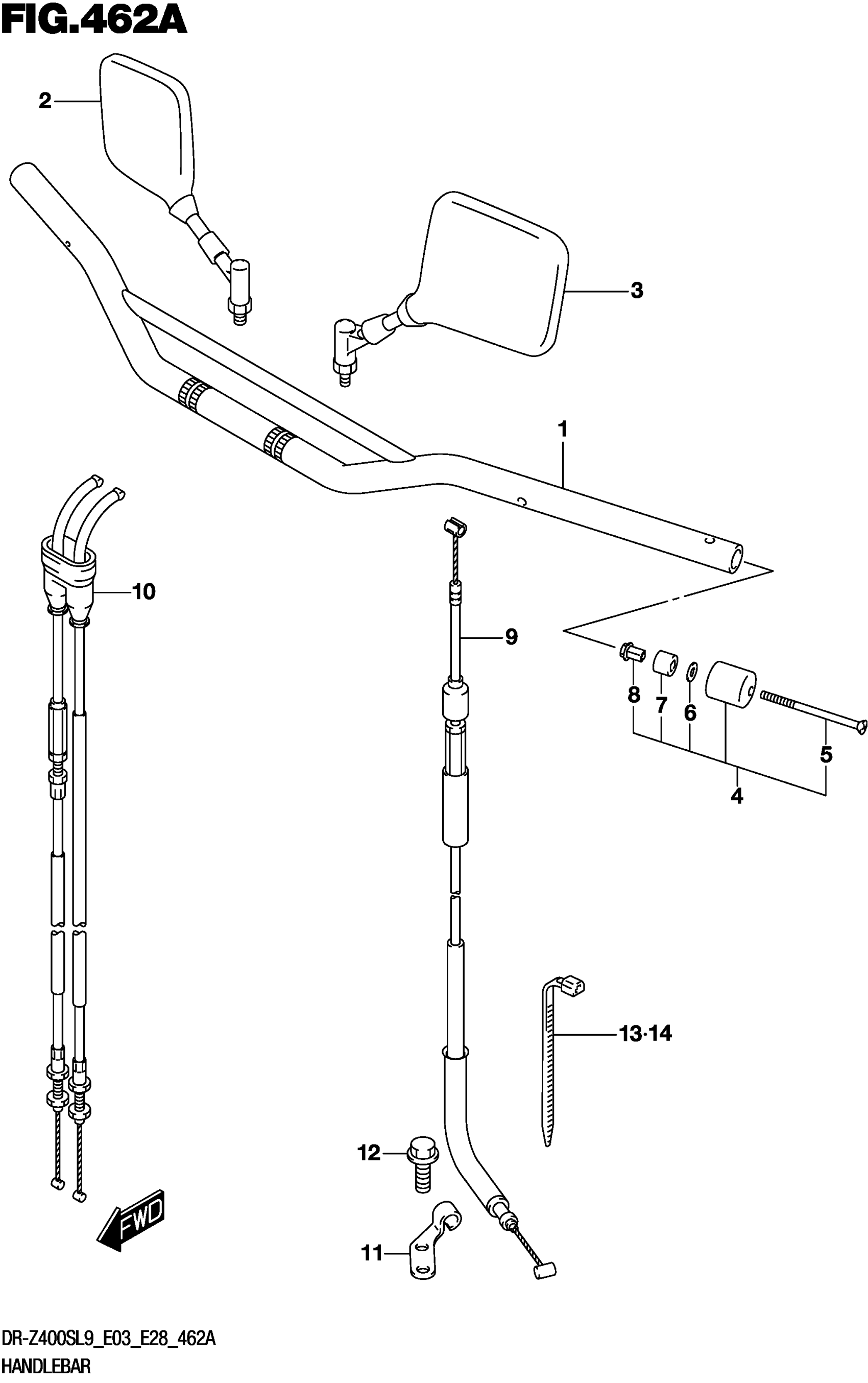

2019 Suzuki DR-Z400SL9 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (SILVER)

56110-29F10-13L

1
Out of stock

2

MIRROR ASSY RR VIEW R

56500-06G30

1
Out of stock

3

MIRROR ASSY RR VIEW L

56600-06G30

1
Out of stock

4

BALANCER SET HANDLEBAR

56200-29832

2
Out of stock

5

.SCREW

02122-0660B

2
Out of stock

6

.WASHER (6.5X16X4)

09160-06131

2
Out of stock

7

.EXPANDER HANDLE BALANCER

56272-10G20

2
Out of stock

8

.NUT,HANDLE BALANCER

56273-10G10

2
Out of stock

9

CABLE ASSY CLUTCH

58200-29F10

1
Out of stock

10

CABLE SET THROTTLE

58301-29F11

1
Out of stock

11

STOPPER CLUTCH CABLE

58634-29F00

1

$14.18

In stock

12

BOLT

01547-0612A

2
Out of stock

13

CLAMP (L:100)

09407-10404

1

$3.17

In stock

14

CLAMP (L:235)

09407-25401

1
Out of stock
