2018 Suzuki DR-Z400SL8 Battery Diagram

← All diagrams

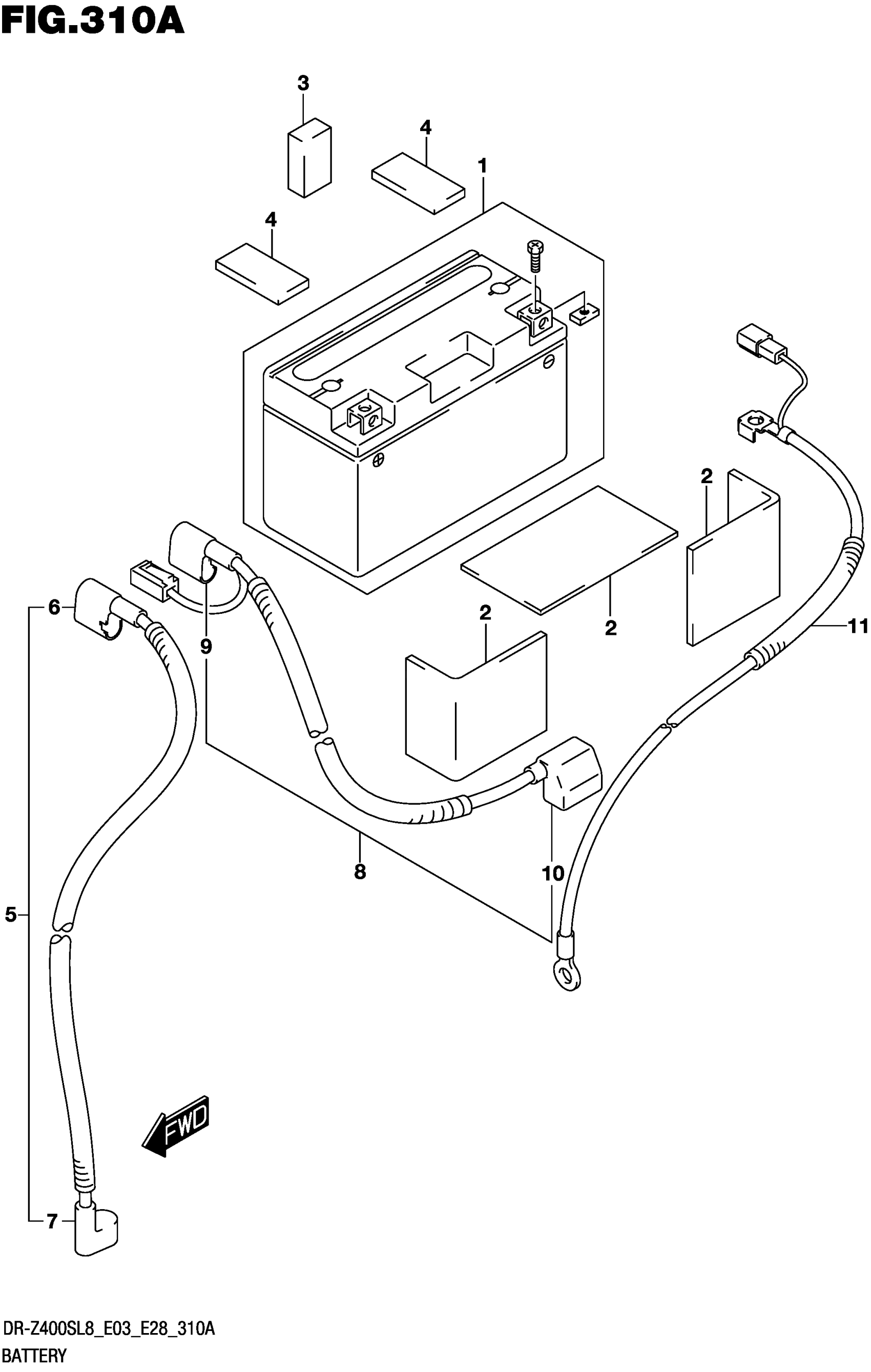

Find the part on the Battery diagram for your 2018 Suzuki DR-Z400SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DR-Z400SL8 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,6AH) This part replaces 33630-29F00.

33610-29F20

1
Out of stock

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED

33651-37000

3
Out of stock

2

PROTECTOR (170X95X3.0)

33651-37000

1
Out of stock

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

1
Out of stock

3

CUSHION, REAR FENDER REAR This part replaces 33652-08420.

33651-37000

1
Out of stock

4

CUSHION (50X42X2.0) | CUT AS REQUIRED

51553-15D40

2
Out of stock

4

CUSHION (50X42X2.0)

51553-15D40

1
Out of stock

5

WIRE STARTER MOTOR LEAD

33810-29F00

1
Out of stock

6

.CAP STARTER RELAY

31861-29F00

1
Out of stock

7

.CAP STARTER MOTOR

31861-29F20

1
Out of stock

8

WIRE BATTERY PLUS LEAD

33820-29F00

1
Out of stock

9

.CAP STARTER RELAY

31861-29F10

1
Out of stock

10

.CAP BATTERY PLUS

33624-29F00

1
Out of stock

11

WIRE BATTERY MINUS LEAD

33860-29F00

1
Out of stock
