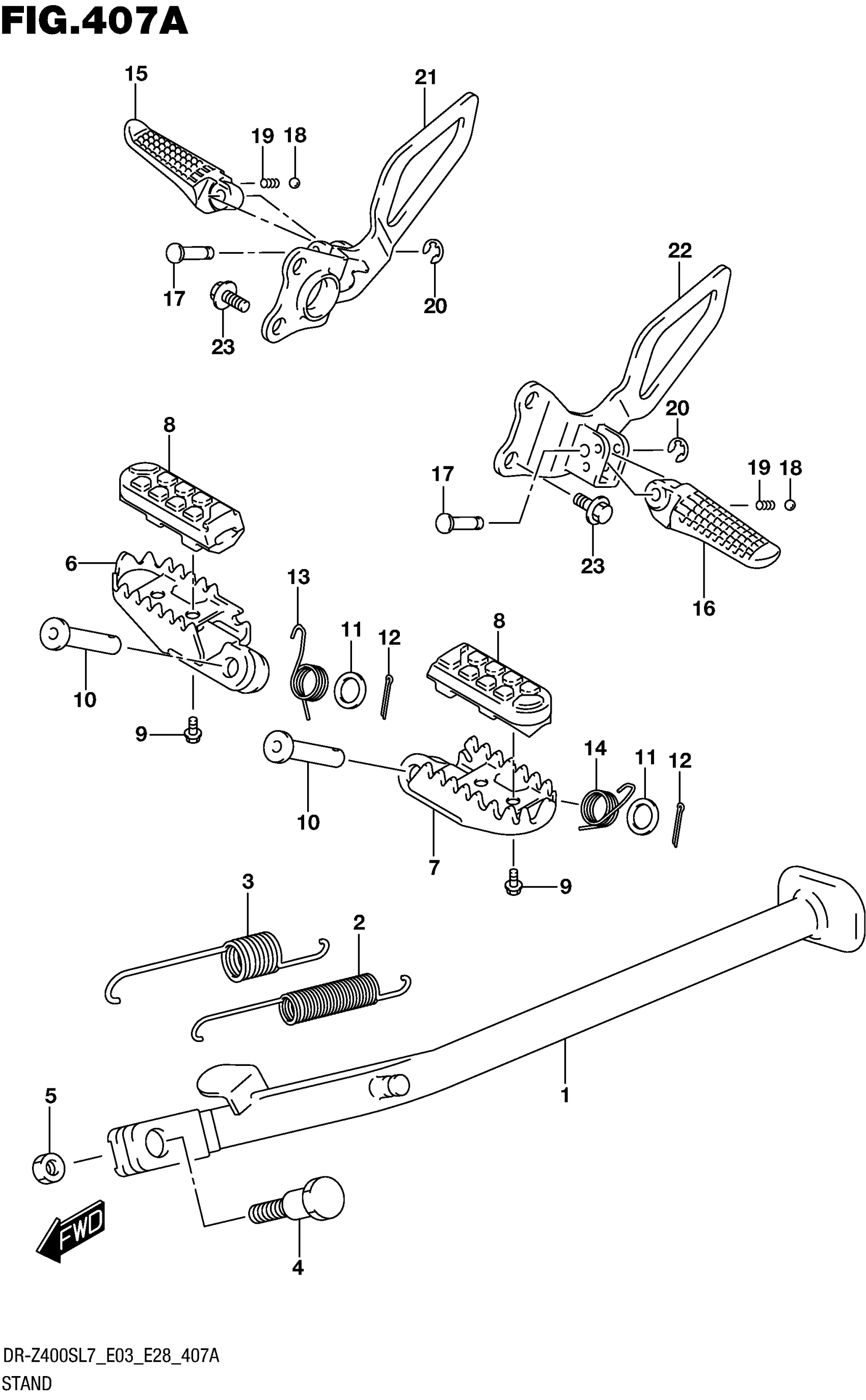

Suzuki DR-Z400SL7 (2017) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-29F00

$159.98

2

SPRING | INNER

09443-12036

$7.08

3

SPRING | OUTER

09443-19010

$5.97

4

BOLT (10X33)

09111-10060

$3.71

5

NUT, PROP STAND

42321-03FK0

$4.73

6

FOOTREST, RH

43550-29E01

$125.27

7

FOOTREST, LH

43560-29E01

$122.90

8

RUBBER, FOOTREST

43530-29F00

$28.53

9

BOLT

01547-0510A

$2.77

10

PIN (10X41.5)

09200-10019

$6.16

11

WASHER

08322-0110B

$2.37

12

COTTER PIN

04111-2520A

$1.22

13

SPRING | RH

09448-18030

$4.84

14

SPRING | LH

09448-18029

$4.84

15

BAR, PILLION FOOTREST RH

43611-33E11

$62.80

16

BAR, PILLION FOOTREST LH

43621-33E11

$62.80

17

PIN, PILLION FOOTREST

87259-85510

$4.89

18

BALL

06111-07004

$1.22

19

SPRING

09440-05005

$1.45

20

E-RING

08332-1104B

$1.80

21

BRACKET, PILLION RH

43650-29F20

$98.10

22

BRACKET, PILLION LH

43750-29F00

$87.55

23

BOLT

01550-0816B

$2.75
