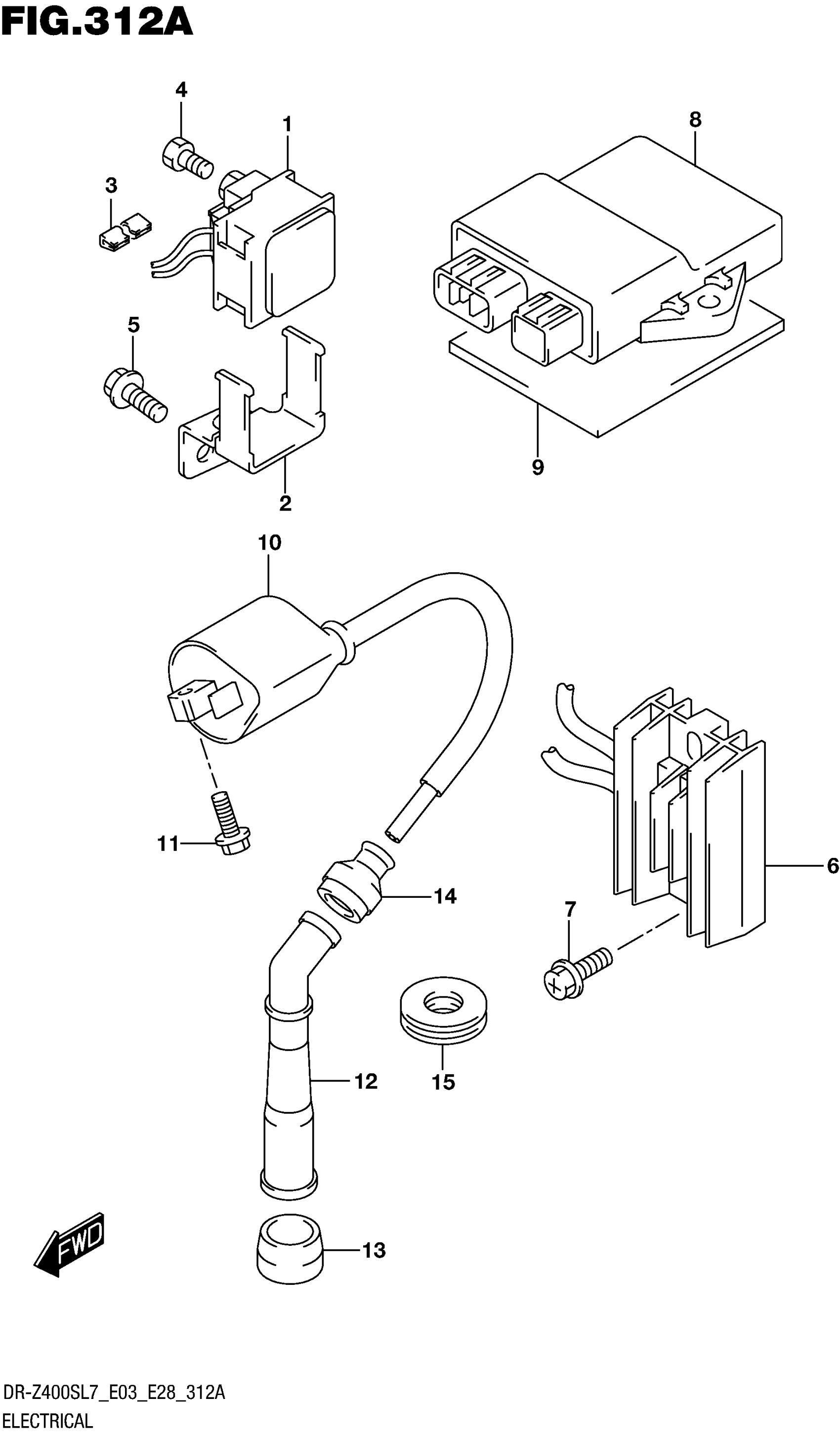

Suzuki DR-Z400SL7 (2017) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY STARTING MOTOR This part replaces 31800-29F00.

31800-29F01

$57.80

2

BRACKET, STARTING MOTOR RELAY

31811-29F00

$8.03

3

PROTECTOR, STARTING MOTOR LEA

31812-29F00

$6.40

4

SCREW (6X8)

09128-06013

$1.24

5

BOLT

01550-0612B

$2.38

6

RECTIFIER ASSY

32800-29F00

$208.41

7

SCREW

02162-0620B

$2.19

8

CDI UNIT

32900-29F40

$860.15

9

CUSHION, CDI UNIT

33652-36000

$2.87

10

COIL ASSY, IGNITION

33410-09F00

$87.46

11

BOLT

01547-0616B

$2.43

12

CAP ASSY, SPARK PLUG

33510-48B10

$29.09

13

SEAL, SPARK PLUG CAP

33541-23E10

$6.17

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

15

COVER,SPARK PLUG CAP

33543-33E01
