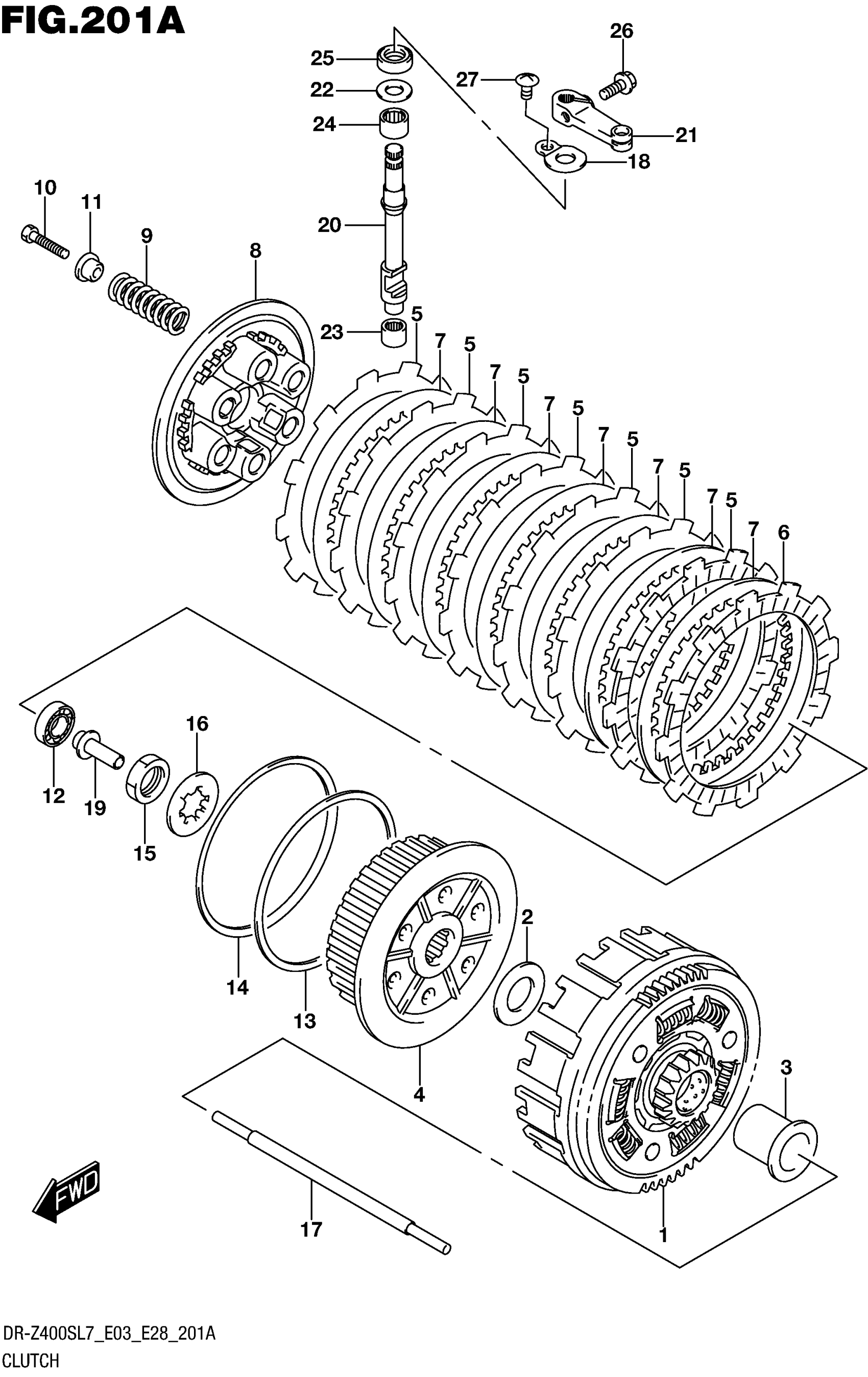

Find the part on the Clutch diagram for your 2017 Suzuki DR-Z400SL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR-Z400SL7 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN

21200-29F10

1
Out of stock

1

(NT:74/16)

21200-29F10

1
Out of stock

2

WASHER

08211-22425

1
Out of stock

3

SPACER, PRIMARY DRIVEN GEAR

21251-29F00

1
Out of stock

4

HUB, CLUTCH SLEEVE

21410-29F00

1
Out of stock

5

PLATE, CLUTCH DRIVE NO.1

21441-29F00

7
Out of stock

5

(T:3.0)

21441-29F00

1
Out of stock

6

PLATE, CLUTCH DRIVE NO.2

21442-29F00

1
Out of stock

6

(T:3.0)

21442-29F00

1
Out of stock

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

7
Out of stock

8

DISC, CLUTCH PRESSURE

21462-29F00

1
Out of stock

9

SPRING, CLUTCH

21413-29F00

6
Out of stock

10

BOLT

07130-0630A

6
Out of stock

11

WASHER, CLUTCH SPRING

21414-29F00

6
Out of stock

12

BEARING (12X28X8)

09262-12001

1
Out of stock

13

WASHER (112X122X1)

09160-00003

1
Out of stock

14

WASHER

09164-00008

1
Out of stock

15

NUT

09140-20001

1
Out of stock

16

LOCK WASHER

09167-22021

1
Out of stock

17

ROD, CLUTCH PUSH

23110-29F00

1
Out of stock

18

RETAINER, CL RLSE OIL SEAL

23117-05200

1
Out of stock

19

PIECE, CLUTCH PUSH

23121-29F00

1
Out of stock

20

CAMSHAFT, CLUTCH RELEASE

23122-29F00

1
Out of stock

21

ARM, CLUTCH RELEASE

23271-20902

1
Out of stock

22

SHIM (10X20X1)

09181-10195

1
Out of stock

23

BEARING (10X14X10)

09263-10014

1
Out of stock

24

BEARING (12X16X10)

09263-12024

1
Out of stock

25

OIL SEAL (10X20X6)

09282-10012

1
Out of stock

26

BOLT

01547-0616A

1
Out of stock

27

SCREW

02142-0610A

1
Out of stock
