2017 Suzuki DR-Z400SL7 CAM Chain Diagram

← All diagrams

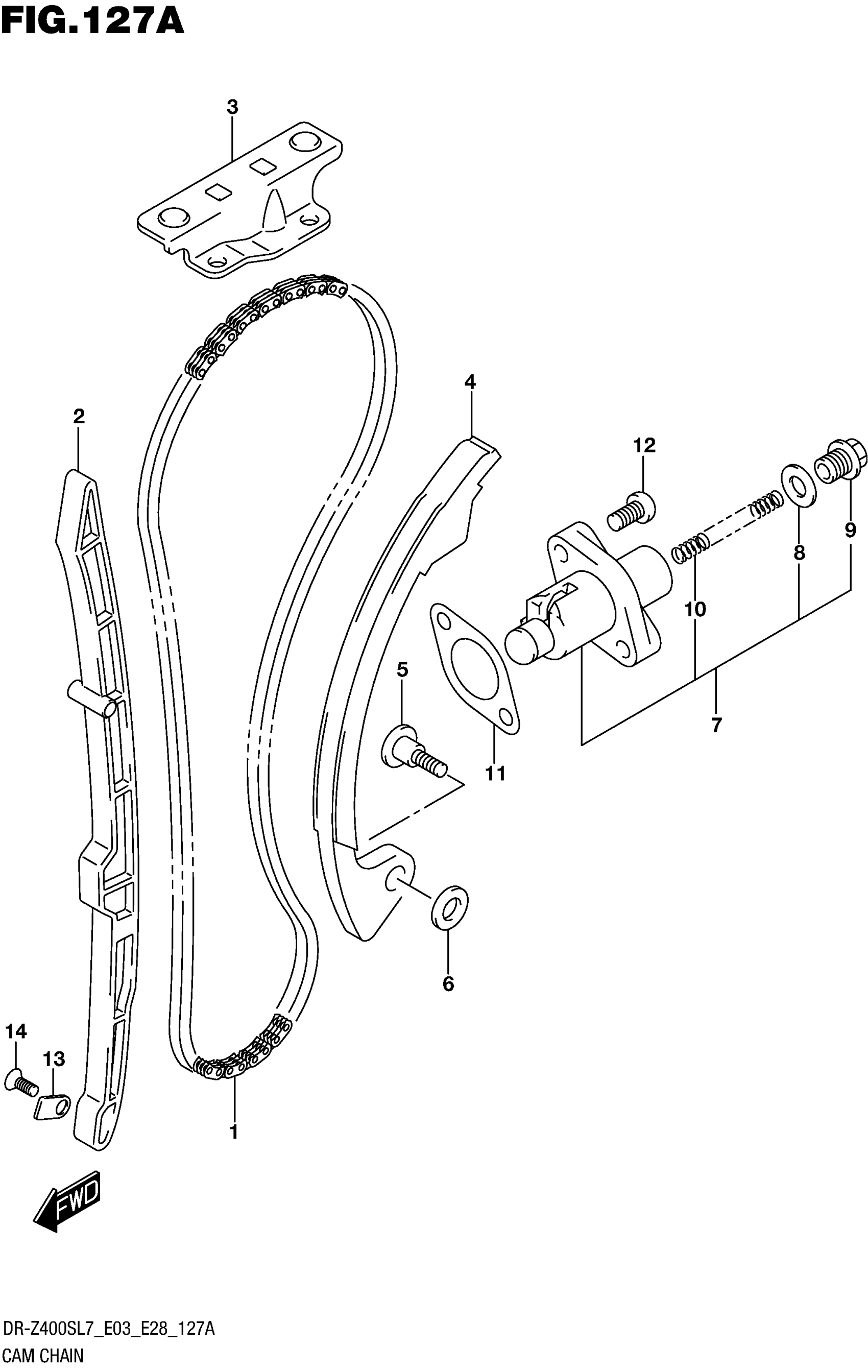

Find the part on the CAM Chain diagram for your 2017 Suzuki DR-Z400SL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR-Z400SL7 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAMSHAFT DRIVE

12760-29F01

1

$96.92

In stock

2

GUIDE, CAM CHAIN NO.1

12771-29F00

1

$33.35

In stock

3

GUIDE, CAM CHAIN NO.2

12782-29F00

1

$29.21

In stock

4

1

$45.80

In stock

5

1

$8.95

In stock

6

WASHER

08211-06181

1
Out of stock

7

1

$138.91

In stock

8

1

$4.76

In stock

9

.PLUG

12833-05A00

1

$21.62

In stock

10

.SPRING

12831-39F00

1

$5.91

In stock

11

1

$3.24

In stock

12

BOLT (6X25)

07130-0625A

2

$2.85

In stock

13

1

$4.53

In stock

14

SCREW (6X12)

09126-06011

1
Out of stock
Camshaft/valve →
