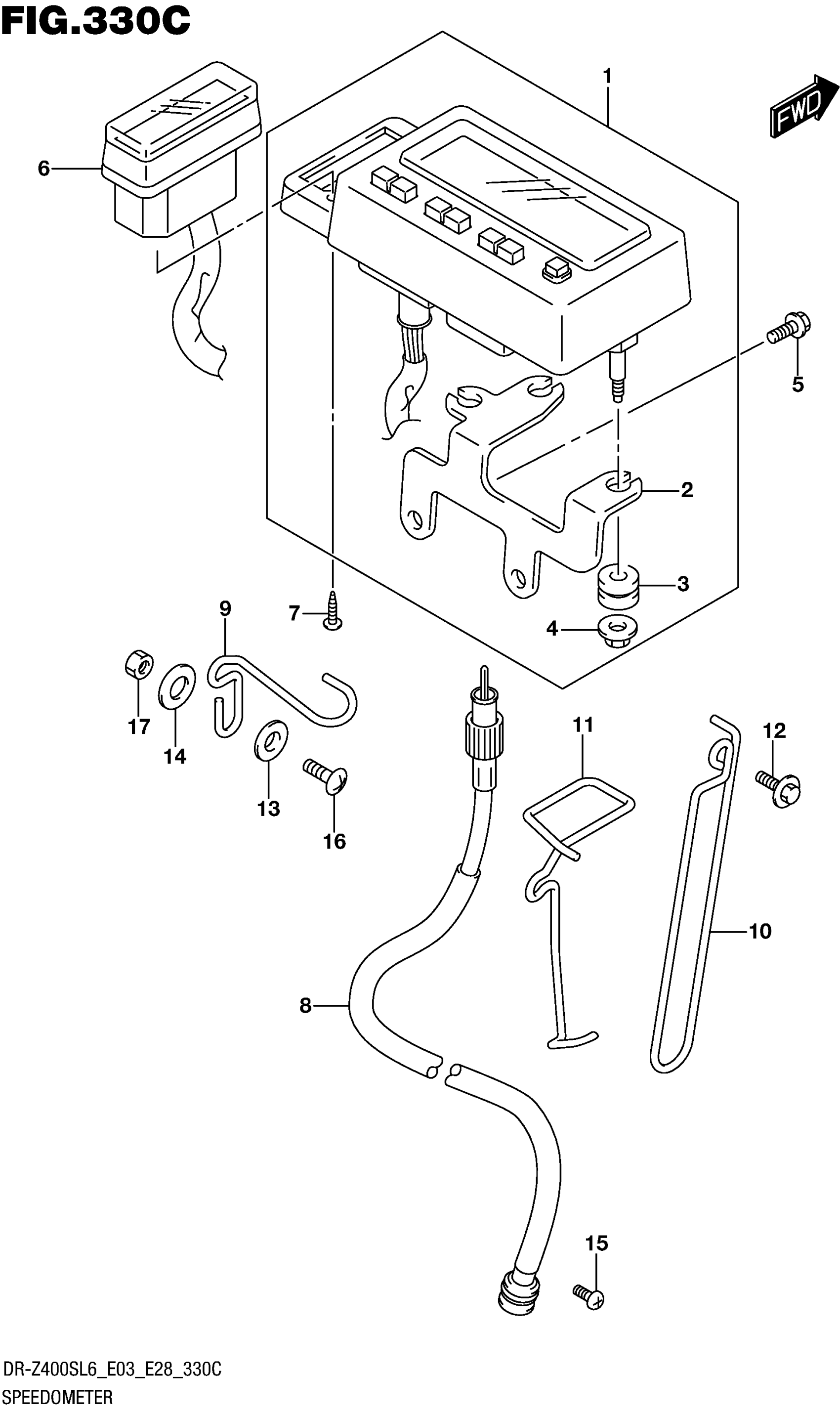

Find the part on the Speedometer diagram for your 2016 Suzuki DR-Z400SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR-Z400SL6 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY This part replaces 34100-29F40.

34100-29F41

1
Out of stock

2

.BRACKET

34950-29F00

1
Out of stock

3

.CUSHION

34996-43410

3
Out of stock

4

.NUT

08316-1005A

1
Out of stock

5

BOLT

01550-0616A

2
Out of stock

6

BOX ASSY, PILOT LAMP

36380-29F00

1
Out of stock

7

SCREW

03511-0420B

2
Out of stock

8

CABLE ASSY SPEEDOMETER

34910-32E00

1
Out of stock

9

GUIDE, METER CABLE NO.1

34938-03D22

1
Out of stock

10

GUIDE METER CABLE NO.2

34938-14D30

1
Out of stock

11

GUIDE, SPEEDMETER CABLE NO.3

34938-29F10

1
Out of stock

12

BOLT (6X20)

09116-06201

1
Out of stock

13

WASHER (6.5X18X1.6)

09160-06109

1

$1.24

In stock

14

WASHER (6.3X16X1)

09169-06053

1
Out of stock

15

SCREW

02112-0516B

1
Out of stock

16

SCREW

02142-0616B

1
Out of stock

17

NUT

08310-0006B

1
Out of stock
