2016 Suzuki DR-Z400SL6 Rear Caliper Diagram

← All diagrams

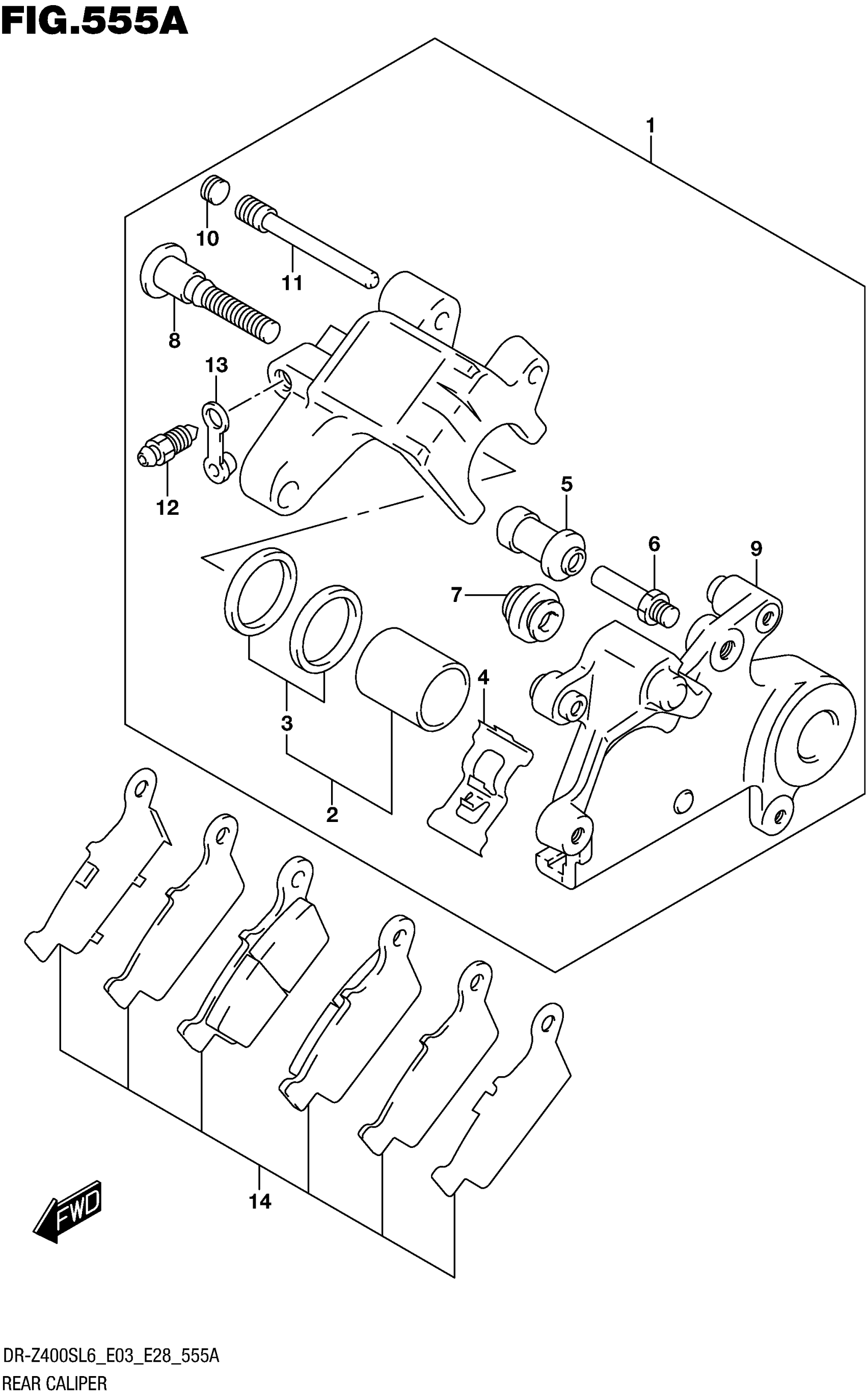

Find the part on the Rear Caliper diagram for your 2016 Suzuki DR-Z400SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR-Z400SL6 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-44E10-999

1
Out of stock

2

.PISTON SET

69100-43810

1
Out of stock

3

..SEAL SET, PISTON

69100-36810

1
Out of stock

4

.SPRING, PAD

59315-36E00

1
Out of stock

5

.BOOT

59386-13A00

1
Out of stock

6

.BOLT

59382-27C30

1
Out of stock

7

.BOOT

59303-14500

1
Out of stock

8

.PIN, BOLT

59305-36E00

1
Out of stock

9

.BRACKET

69351-36E00

1
Out of stock

10

.PLUG, PIN

59146-21E10

1
Out of stock

11

.PIN HANGER

69345-43D00

1
Out of stock

12

.BLEEDER

59121-01A00

1
Out of stock

13

.CAP, BLEEDER

59122-01A00

1
Out of stock

14

PAD & RETAINER SET

69100-36850

1
Out of stock
