2016 Suzuki DR-Z400SL6 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2016 Suzuki DR-Z400SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

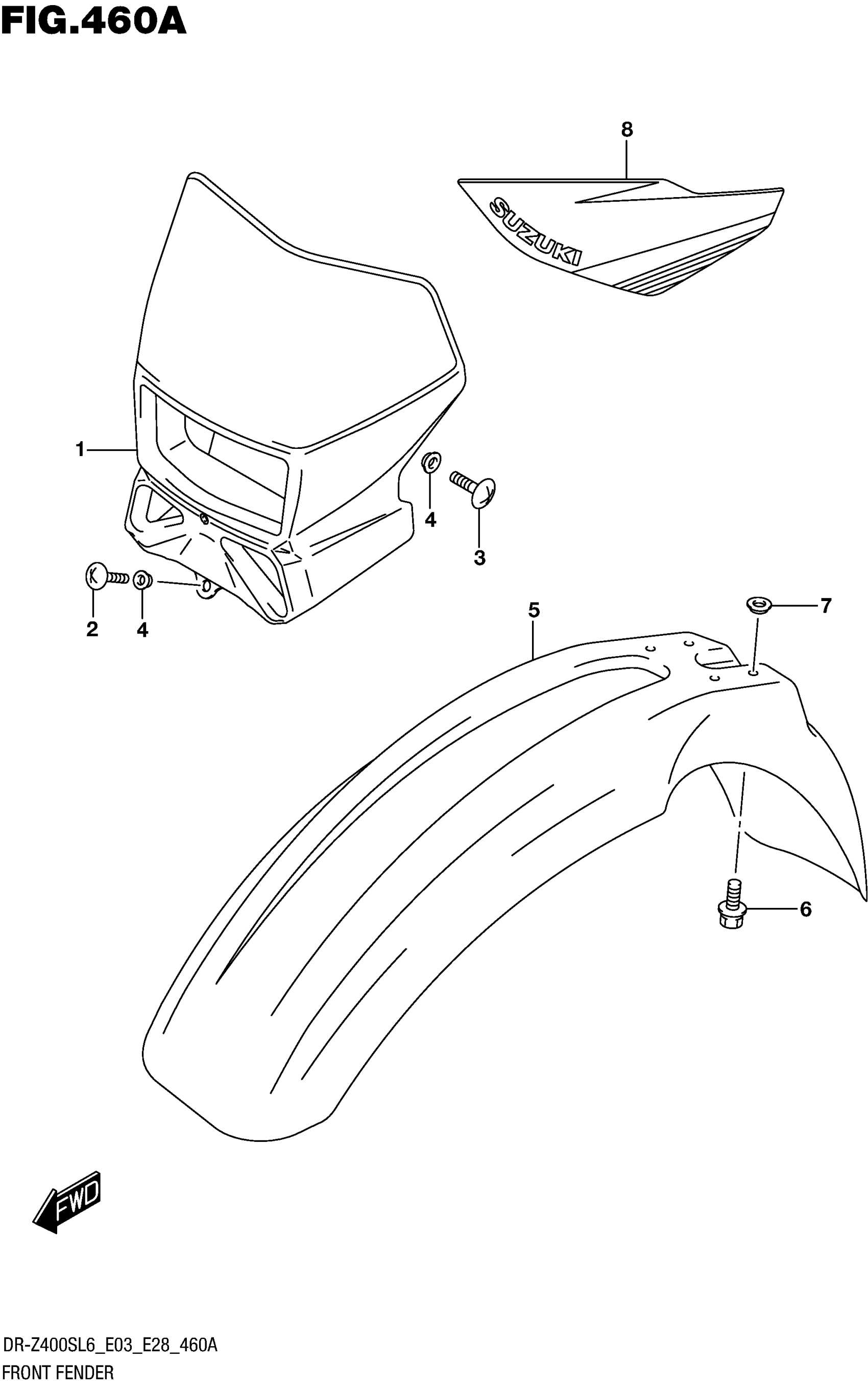

2016 Suzuki DR-Z400SL6 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLAMP (BLACK)

51811-29F50-019

1
Out of stock

2

SCREW

02142-0512B

1
Out of stock

3

SCREW

02142-0612B

2
Out of stock

4

WASHER

09169-06071

3
Out of stock

5

FENDER,FRONT (GRAY)

53111-27C22-YUD

1

$151.88

In stock

6

BOLT (6X16)

09116-06170

4
Out of stock

7

WASHER

09169-06073

4
Out of stock

8

1

$32.72

In stock
