2016 Suzuki DR-Z400SL6 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2016 Suzuki DR-Z400SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

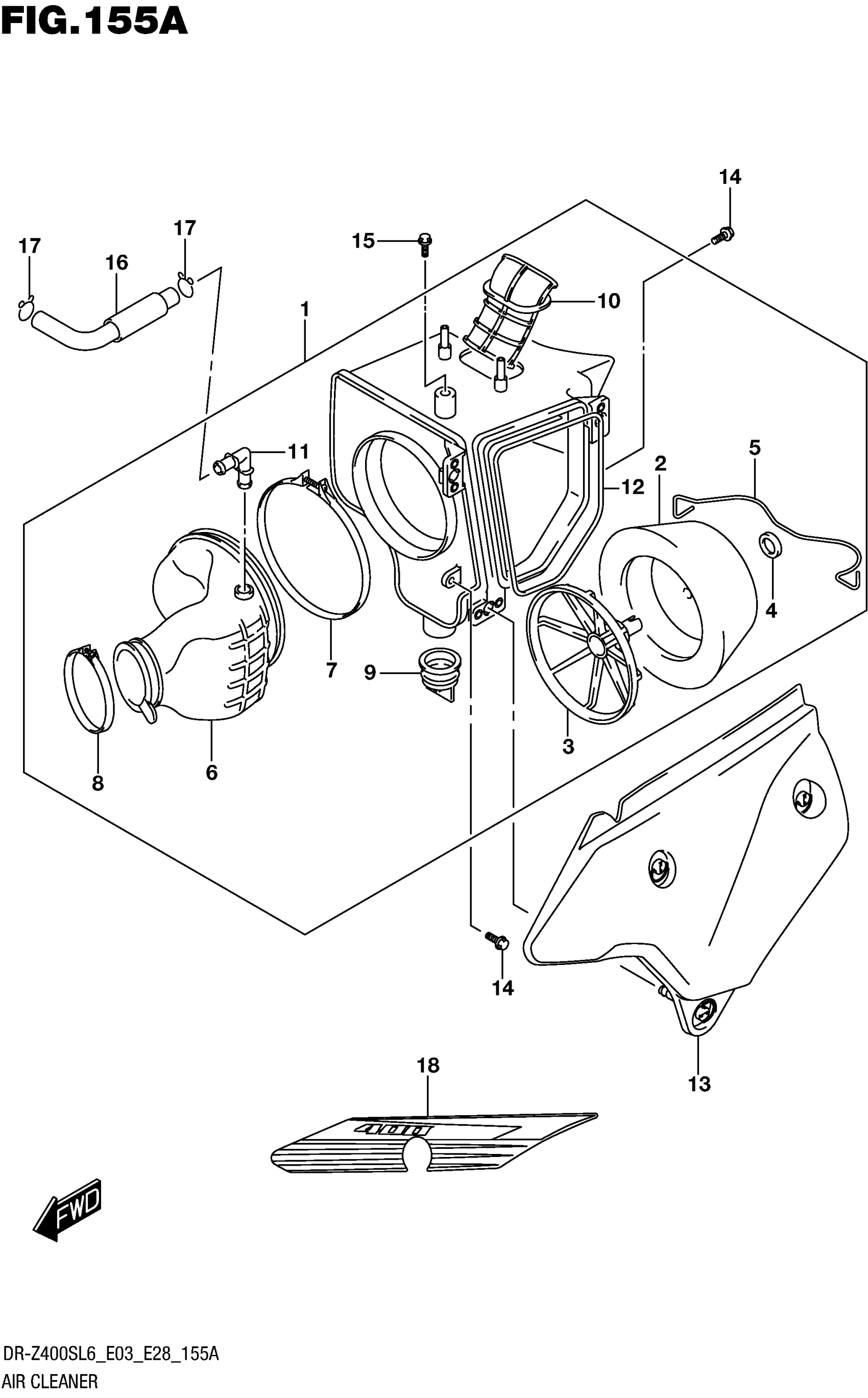

2016 Suzuki DR-Z400SL6 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER, AIR

13701-29FB2

1
Out of stock

2

.FILTER, AIR CLEANER

13780-44E00

1
Out of stock

3

.HOLDER, FILTER

13791-44E00

1
Out of stock

4

.SPACER

13796-44E00

1
Out of stock

5

.SPRING

13941-29F00

1
Out of stock

6

.TUBE, OUTLET

13881-29FB0

1
Out of stock

7

.CLAMP, OUTLET TUBE

13826-29F00

1
Out of stock

8

.CLAMP

09402-64203

1
Out of stock

9

.VALVE

13872-29F00

1
Out of stock

10

.TUBE, INLET

13891-29FA0

1
Out of stock

11

.JOINT, BREATHER HOSE

13858-14D20

1
Out of stock

12

.GASKET, AIR CLEANER

13746-29F00

1
Out of stock

13

CAP, AIR CLEANER (GRAY)

13740-29FB1-YUD

1

$191.93

In stock

14

BOLT

01547-0616A

2
Out of stock

15

BOLT (6X14.6)

09111-06054

1

$4.02

In stock

16

TUBE BREATHER This part replaces 13850-29FA1.

13850-29FA2

1
Out of stock

17

CLIP

09401-14101

2
Out of stock

18

TAPE, AIR CLEANER CAP

68145-29FK0-A84

1
Out of stock
