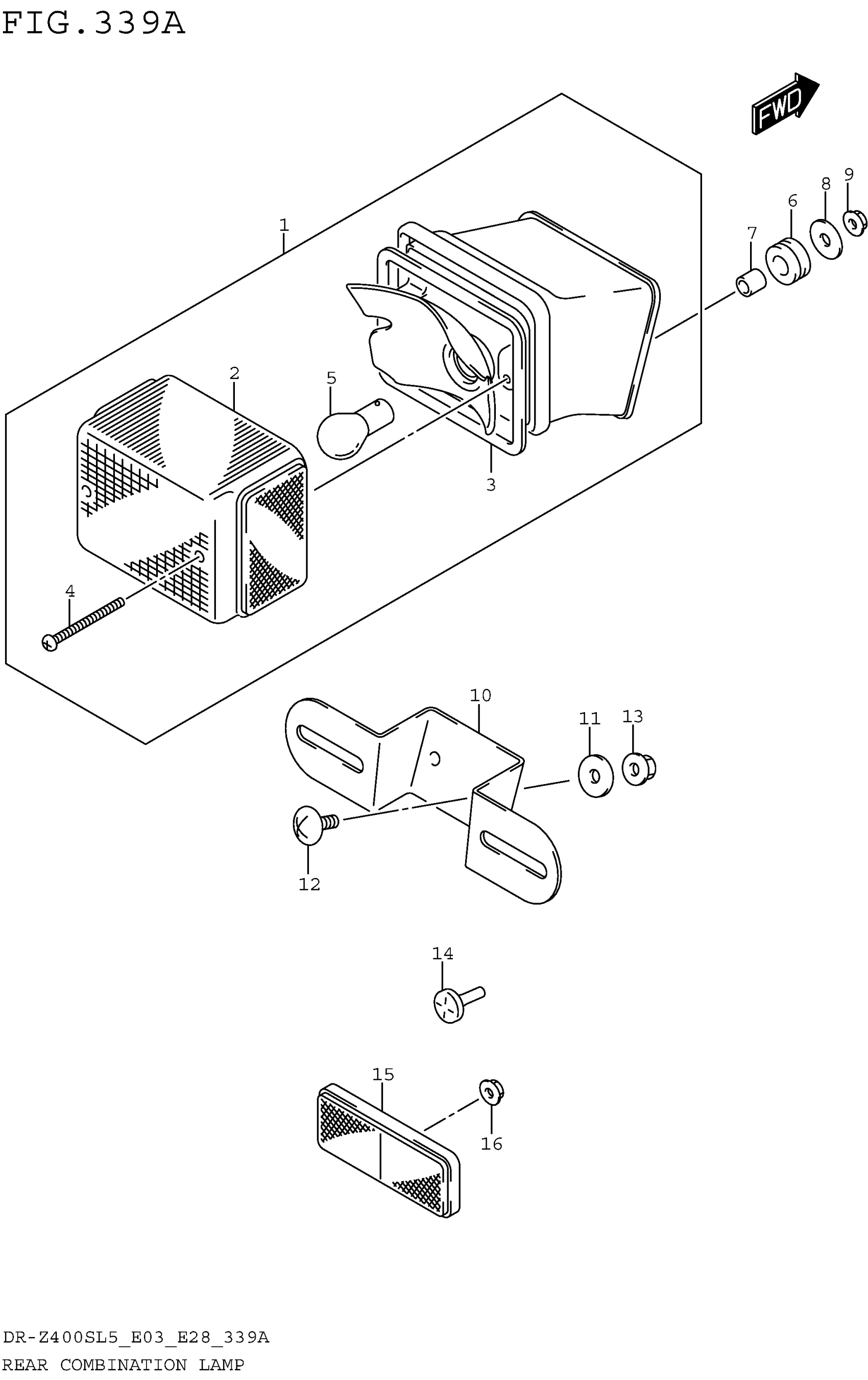

Suzuki DR-Z400SL5 (2015) REAR COMBINATION LAMP Diagram

Description

Price

LAMP ASSY, REAR COMBINATION

35710-29F30

$106.01

LENS

35712-42A30

$68.03

.GASKET LENS

35713-14D30

$8.91

SCREW (4X45)

09125-04501

$2.90

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

CUSHION

09320-10501

$4.85

SPACER (6.5X10X10)

09180-06310

$1.92

.WASHER (6.5X20X1.6)

09160-06088

$1.67

NUT

08316-1006A

$2.19

BRACKET, LICENSE PLATE

35927-29F10

$18.13

.WASHER (6.5X20X1.6)

09160-06088

$1.67

SCREW

02142-0612A

$1.37

NUT

08316-1006A

$2.19

CUSHION

09321-06026

$2.15

REFLEX REFLECTOR ASSY, REAR

35970-07F01

$19.11

NUT

08316-1005A

$2.19
