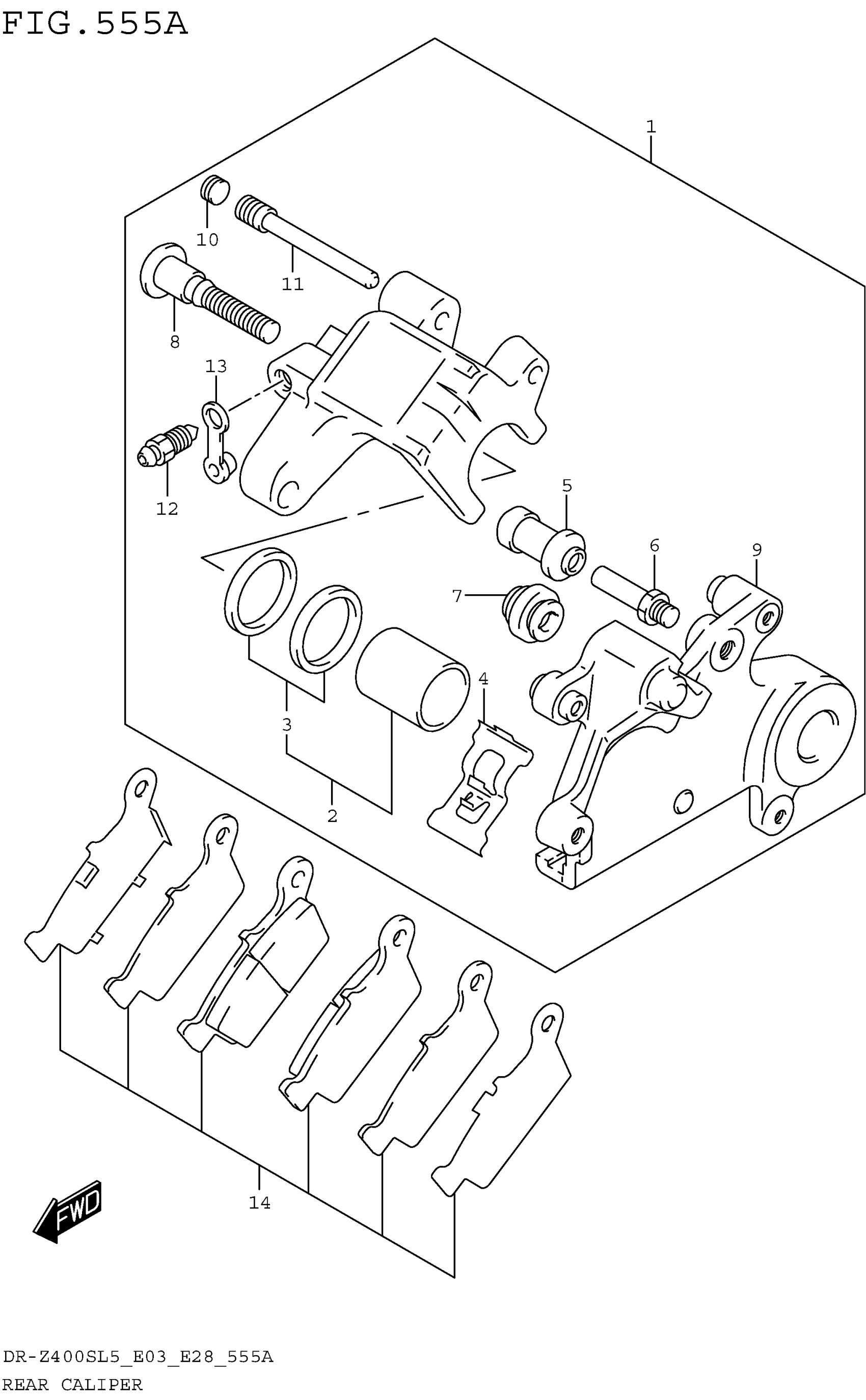

Suzuki DR-Z400SL5 (2015) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-44E10-999

$295.43

2

PISTON SET

69100-43810

$35.05

3

SEAL SET, PISTON

69100-36810

$8.88

4

SPRING, PAD

59315-36E00

$12.53

5

BOOT

59386-13A00

$7.60

6

BOLT

59382-27C30

$8.93

7

BOOT

59303-14500

$5.29

8

PIN, BOLT

59305-36E00

$17.91

9

BRACKET

69351-36E00

$190.22

10

PLUG, PIN

59146-21E10

$5.88

11

.PIN HANGER

69345-43D00

$15.33

12

BLEEDER

59121-01A00

$8.35

13

CAP, BLEEDER

59122-01A00

$4.15

14

PAD & RETAINER SET

69100-36850

$47.58
