Description

Price

1

CLEANER, AIR

13701-29FB2

$275.31

2

FILTER, AIR CLEANER

13780-44E00

$35.43

3

HOLDER, FILTER

13791-44E00

$13.89

4

SPACER

13796-44E00

$3.32

5

SPRING

13941-29F00

$31.97

6

TUBE, OUTLET

13881-29FB0

$73.48

7

CLAMP, OUTLET TUBE

13826-29F00

$7.51

8

CLAMP

09402-64203

$5.94

9

VALVE

13872-29F00

$9.36

10

TUBE, INLET

13891-29FA0

$44.60

11

JOINT, BREATHER HOSE

13858-14D20

$6.80

12

GASKET, AIR CLEANER

13746-29F00

$5.25

13

CAP, AIR CLEANER (BLACK)

13740-29FB1-019

$220.82

13

CAP, AIR CLEANER (WHITE)

13740-29FB1-30H

$223.48

14

BOLT

01547-0616A

$2.01

15

BOLT (6X14.6)

09111-06054

$4.02

16

TUBE BREATHER This part replaces 13850-29FA1.

13850-29FA2

$11.37

17

CLIP

09401-14101

$2.37

18

TAPE, AIR CLEANER CAP (SILVER/BLACK) | FOR 019

68145-29FD0-HMC

$45.63

18

TAPE, AIR CLEANER CAP (BLUE/WHITE) | FOR 30H

68145-29FD0-HMD

Unavailable

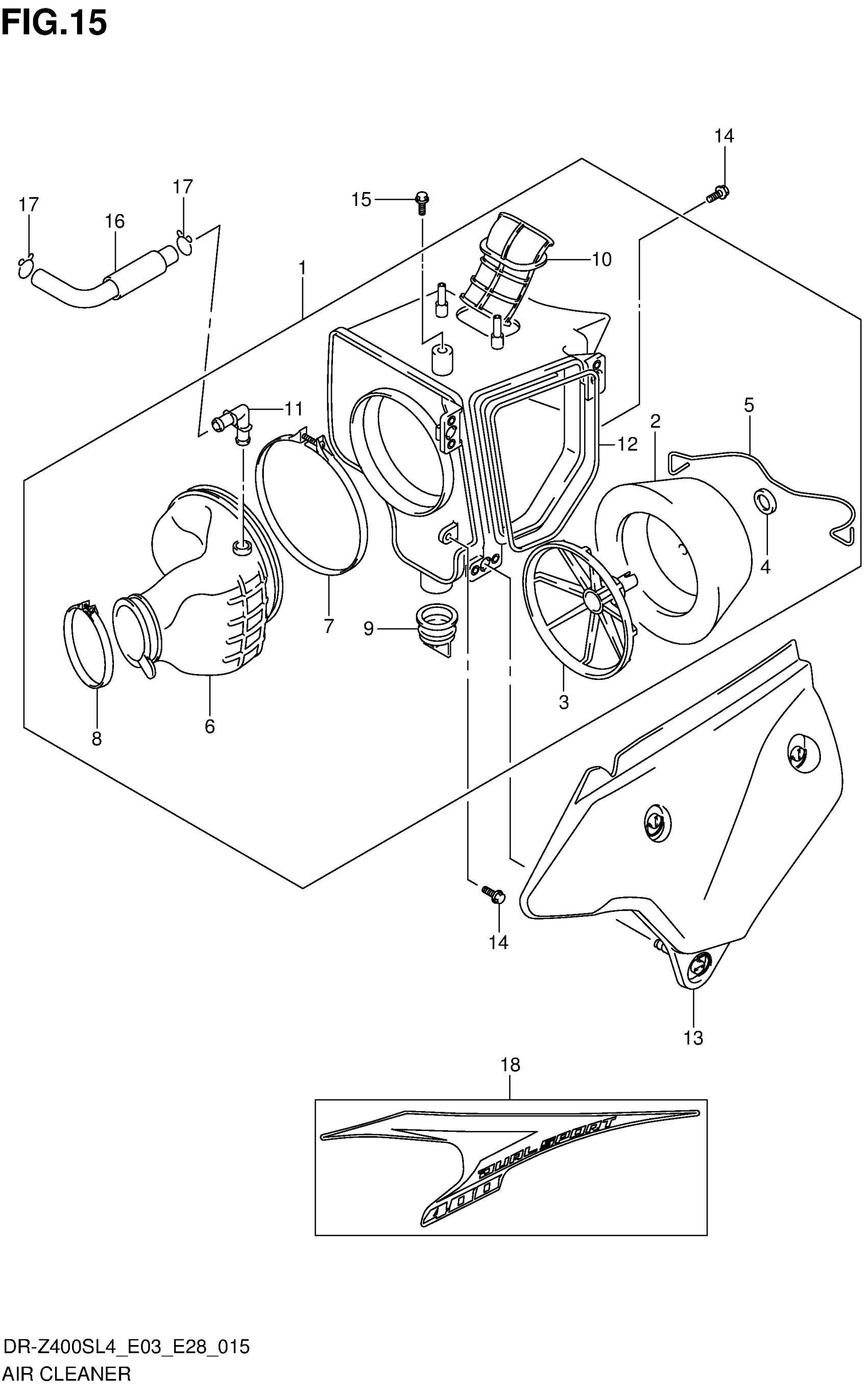

Suzuki DR-Z400SL4 (2014) AIR CLEANER Diagram
