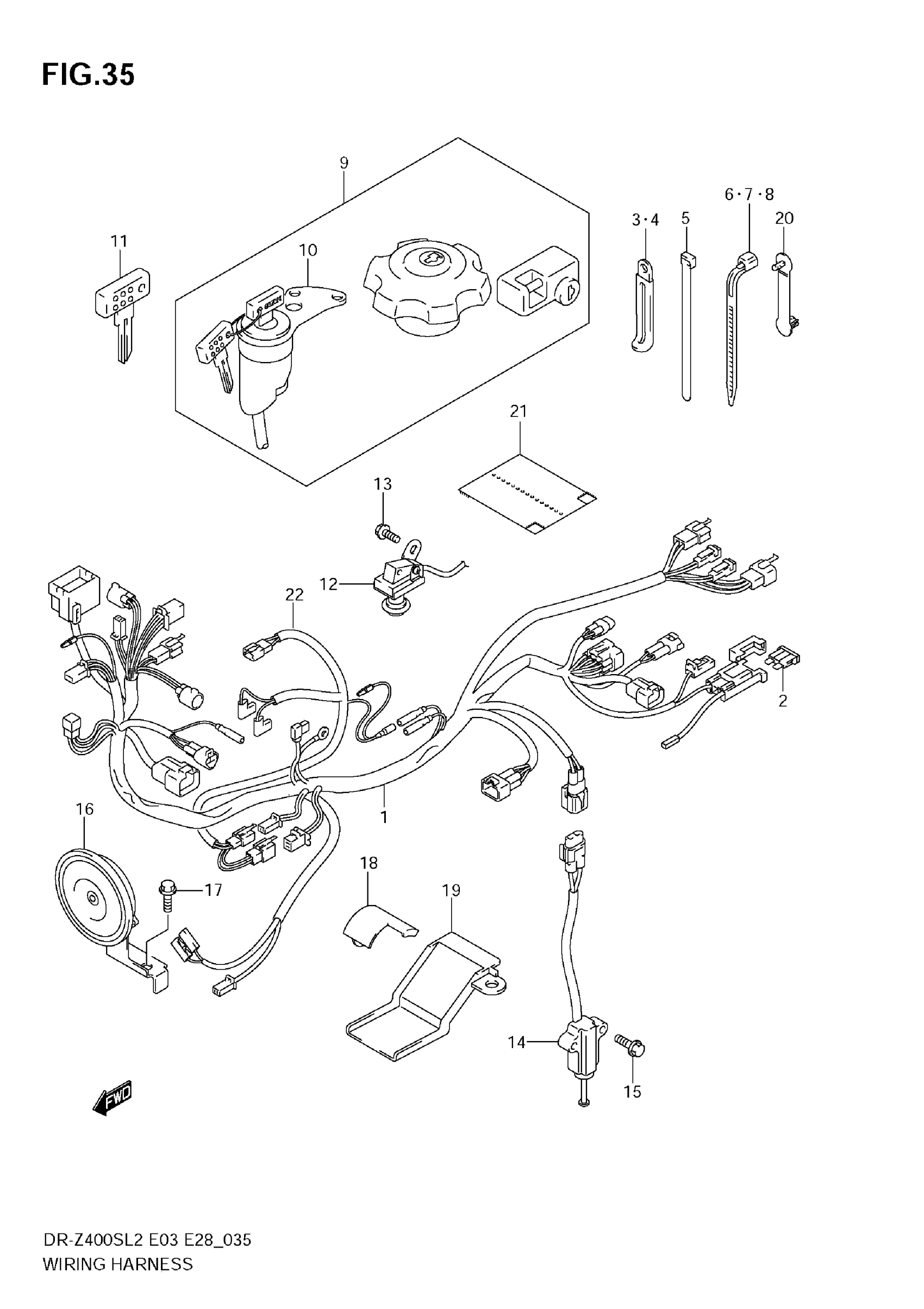

Find the part on the Wiring Harness diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DR-Z400SL2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$360.55

In stock

2

FUSE (20A)

09481-20101

2

$2.31

In stock

3

CLAMP (L:45)

09404-06429

1
Out of stock

4

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

5

CLAMP (L:145)

09407-14407

4
Out of stock

6

CLAMP (L:125)

09407-14403

6
Out of stock

7

CLAMP (L:165)

09407-18402

4
Out of stock

8

CLAMP (L:235)

09407-25401

5
Out of stock

9

LOCK SET This part replaces 37000-29821.

37000-29824

1
Out of stock

10

SWITCH ASSY,IGN This part replaces 37110-29F00.

37110-29F01

1
Out of stock

11

1

$9.06

In stock

11

1

$9.06

In stock

11

1

$12.05

In stock

11

1

$12.13

In stock

12

1

$145.50

In stock

13

SCREW

02162-0608B

1

$2.77

In stock

14

SWITCH ASSY,SID This part replaces 37840-11X50.

37840-11X51

1
Out of stock

15

BOLT

01550-0616B

2
Out of stock

16

HORN ASSY

38500-29F01

1

$96.10

In stock

17

BOLT

01550-0612B

1
Out of stock

18

PROTECTOR, WIRING HARNESS

36611-29F10

1
Out of stock

19

1

$10.17

In stock

20

CLAMP, WIRING HARNESS

36651-48E00

1
Out of stock

21

1

$21.28

In stock

22

WIRE, CARBURETOR HEATER | OPT

36856-29F00

1
Out of stock
