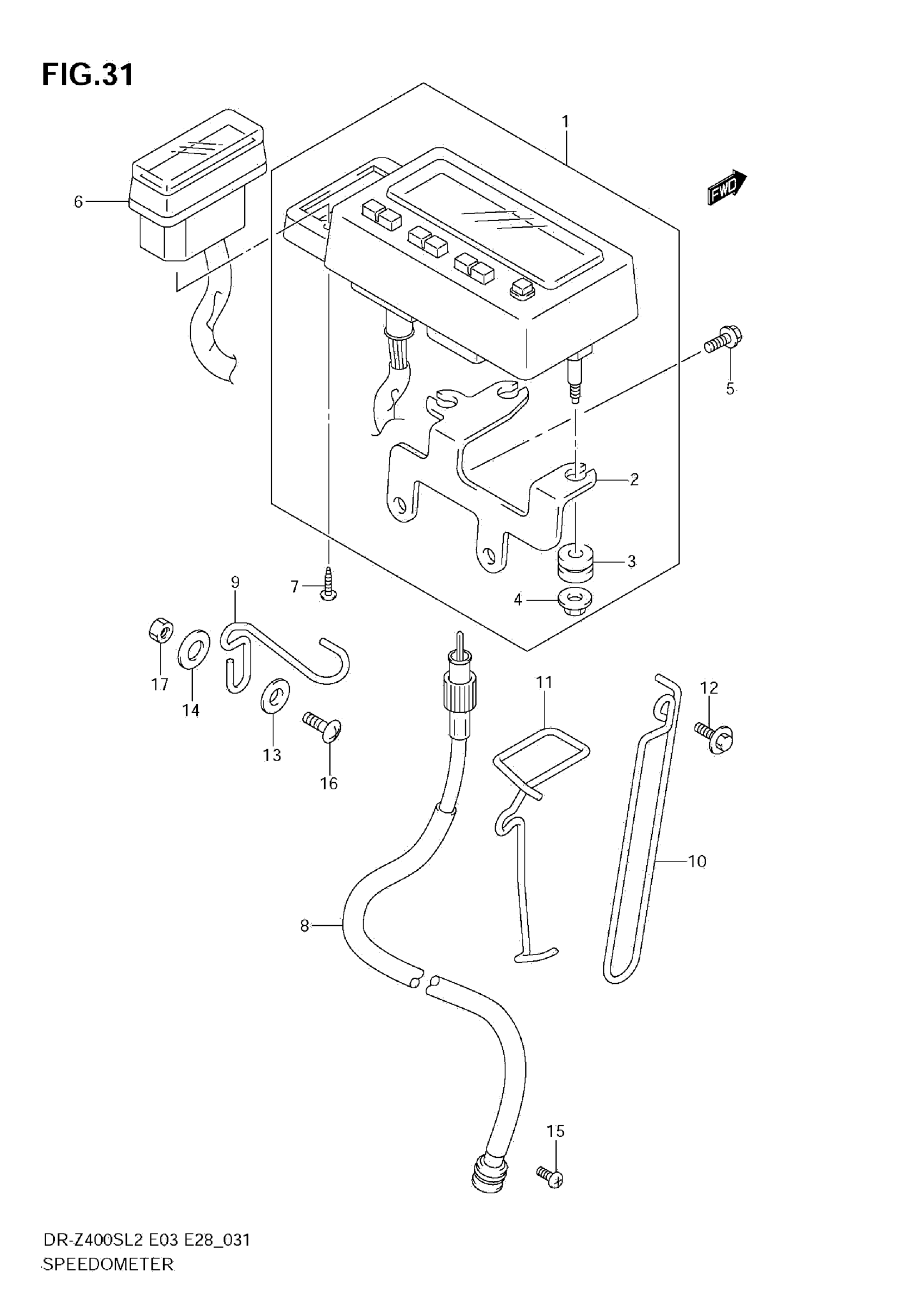

Suzuki DR-Z400SL2 (2012) SPEEDOMETER (E33) Diagram

#

Description
Price

1

SPEEDOMETER ASSY This part replaces 34100-29F40.

34100-29F41

$1,184.03

2

BRACKET

34950-29F00

$54.60

3

.CUSHION

34996-43410

$4.92

4

NUT

08316-1005A

$2.25

5

BOLT

01550-0616B

$2.53

6

BOX ASSY, PILOT LAMP

36380-29F00

$319.60

7

SCREW

03511-0420B

$2.44

8

CABLE ASSY SPEEDOMETER

34910-32E00

$39.38

9

GUIDE, METER CABLE NO.1

34938-03D22

$12.85

10

GUIDE METER CABLE NO.2

34938-14D30

$10.17

11

GUIDE, SPEEDMETER CABLE NO.3

34938-29F10

$16.35

12

BOLT (6X20)

09116-06201

$2.97

13

WASHER (6.5X18X1.6)

09160-06109

$1.19

14

WASHER (6.3X16X1)

09169-06053

$1.15

15

SCREW

02112-0516B

$2.01

16

SCREW

02142-0616B

$1.86

17

NUT

08310-0006B

$2.44
