2011 Suzuki DR-Z400SL1 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2011 Suzuki DR-Z400SL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

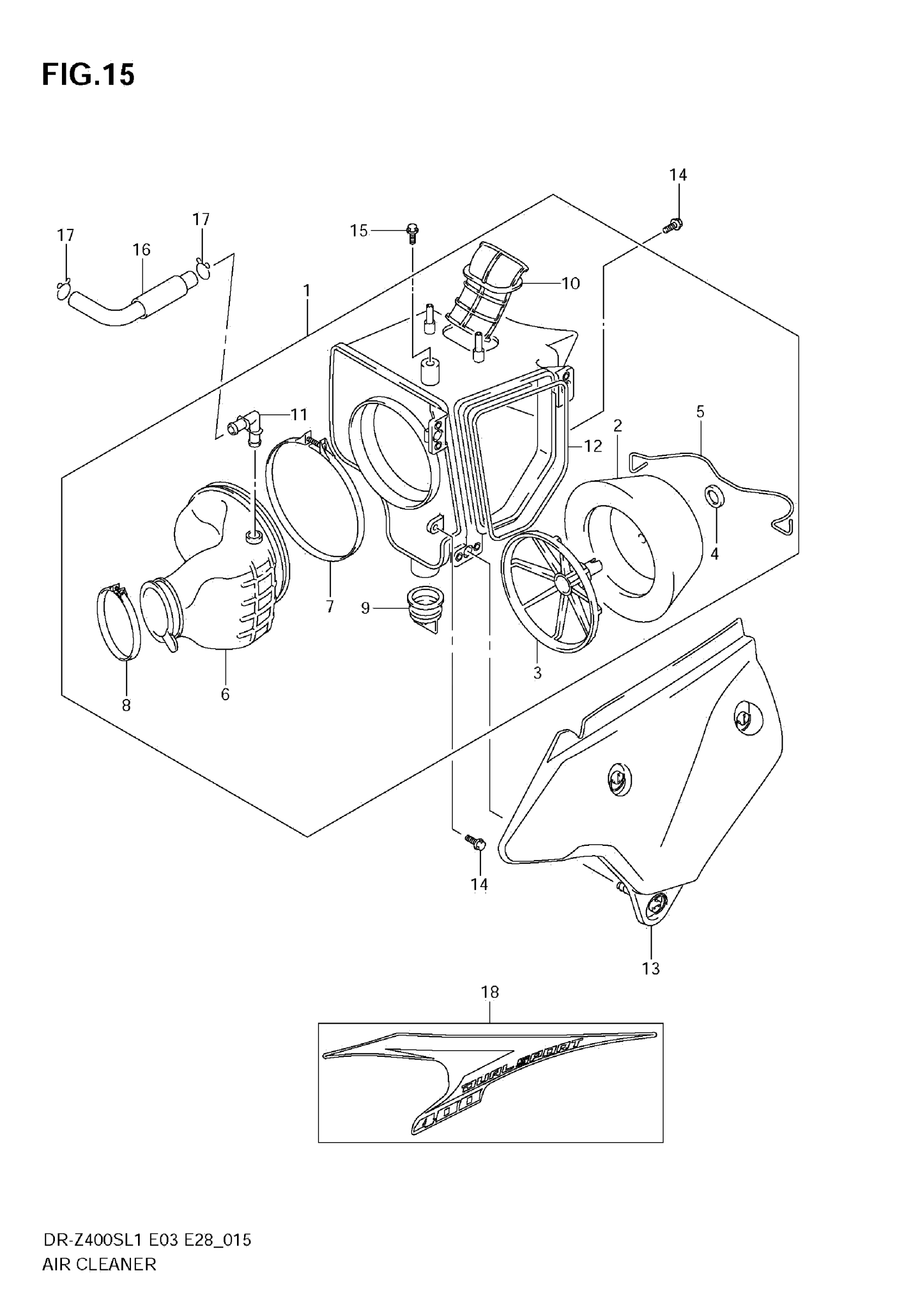

2011 Suzuki DR-Z400SL1 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER, AIR This part replaces 13701-29FB1.

13701-29FB2

1
Out of stock

2

FILTER, AIR CLEANER

13780-44E00

1
Out of stock

3

HOLDER, FILTER

13791-44E00

1
Out of stock

4

SPACER

13796-44E00

1
Out of stock

5

SPRING

13941-29F00

1
Out of stock

6

TUBE, OUTLET

13881-29FB0

1
Out of stock

7

CLAMP, OUTLET TUBE

13826-29F00

1
Out of stock

8

CLAMP

09402-64203

1
Out of stock

9

VALVE

13872-29F00

1
Out of stock

10

TUBE, INLET

13891-29FA0

1
Out of stock

11

JOINT, BREATHER HOSE

13858-14D20

1
Out of stock

12

GASKET, AIR CLEANER

13746-29F00

1
Out of stock

13

CAP, AIR CLEANER (BLACK) This part replaces 13740-29FB0-019.

13740-29FB1-019

1
Out of stock

13

CAP, AIR CLEANER (WHITE) This part replaces 13740-29FB0-30H.

13740-29FB1-30H

1
Out of stock

14

BOLT

01547-0616B

2
Out of stock

15

BOLT (6X14.6)

09111-06054

1
Out of stock

16

TUBE BREATHER This part replaces 13850-29FA1.

13850-29FA2

1
Out of stock

17

CLIP

09401-14101

2
Out of stock

18

TAPE, AIR CLEANER CAP (SILVER/BLACK) | FOR 019

68145-29FD0-HMC

1
Out of stock

18

TAPE, AIR CLEANER CAP (BLUE/WHITE) | FOR 30H

68145-29FD0-HMD

1
Out of stock
