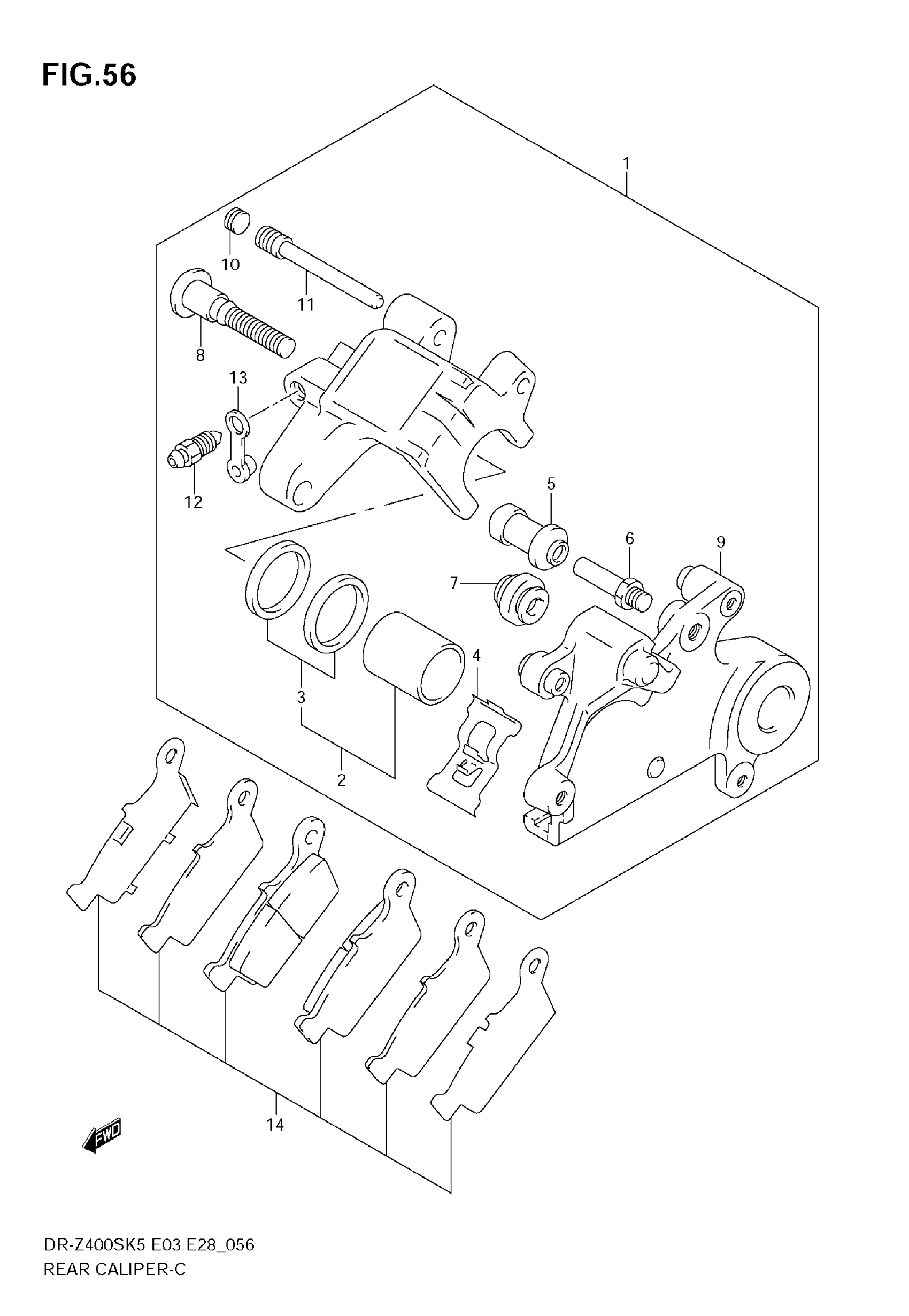

Suzuki DR-Z400S (2009) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 13

69100-44E10-999

$295.43

2

PISTON SET

69100-43810

$33.54

3

SEAL SET, PISTON

69100-36810

$8.50

4

SPRING

59315-36E00

$12.53

5

BOOT

59386-13A00

$7.28

6

PIN

59382-27C30

$8.54

7

BOOT

59303-14500

$5.06

8

PIN

59305-36E00

$17.14

9

BRACKET

69351-36E00

$190.22

10

PLUG

59146-21E10

$5.62

11

.PIN HANGER

69345-43D00

$10.88

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

PAD & RETAINER SET

69100-36850

$46.20
