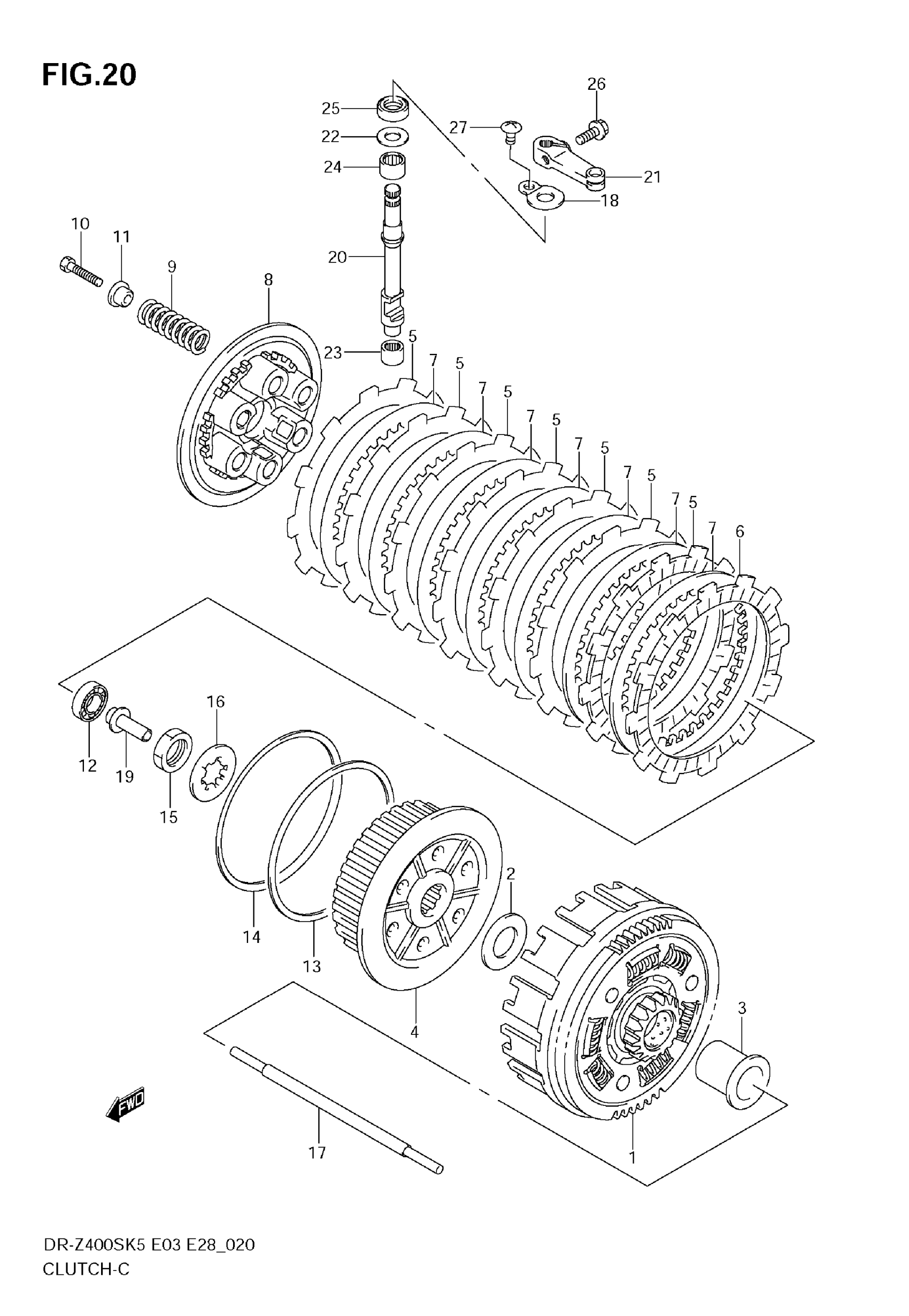

Suzuki DR-Z400S (2009) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:74/16

21200-29F10

$452.18

2

WASHER

08211-22425

$6.35

3

SPACER, PRIMARY DRIVEN

21251-29F00

$60.03

4

HUB, SLEEVE

21410-29F00

$161.65

5

PLATE, DRIVE NO.1

21441-29F00

$20.86

6

PLATE, DRIVE NO.2

21442-29F00

$20.86

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$10.33

8

DISC, PRESSURE

21462-29F00

$70.88

9

SPRING

21413-29F00

$6.12

10

BOLT

07130-0630A

$4.03

11

WASHER

21414-29F00

$5.88

12

BEARING, PRESSURE DISK | 12X28X8

09262-12001

$16.90

13

WASHER

09160-00003

$9.32

14

WASHER, WAVE

09164-00008

$17.02

15

NUT

09140-20001

$3.04

16

LOCK WASHER

09167-22021

$1.82

17

ROD, CLUTCH PUSH

23110-29F00

$26.52

18

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.80

19

PIECE, CLUTCH PUSH

23121-29F00

$29.48

20

CAM SHAFT, CLUTCH RELEASE

23122-29F00

$64.22

21

ARM, CLUTCH RELEASE

23271-20902

$27.09

22

WASHER, CLUTCH RELEASE | 10X20X1

09181-10195

$2.00

23

BEARING, CLUTCH RELEASE LOW | 10X14X10

09263-10014

$12.21

24

BEARING, CLUTCH RELEASE UP | 12X16X10

09263-12024

$11.44

25

SEAL, CLUTCH RELEASE ARM | 10X20X6

09282-10012

$7.20

26

BOLT, CLUTCH RELEASE ARM

01547-0616A

$2.01

27

STOPPER, CL RLSE CAM SHAFT

02142-0610A

$1.38
