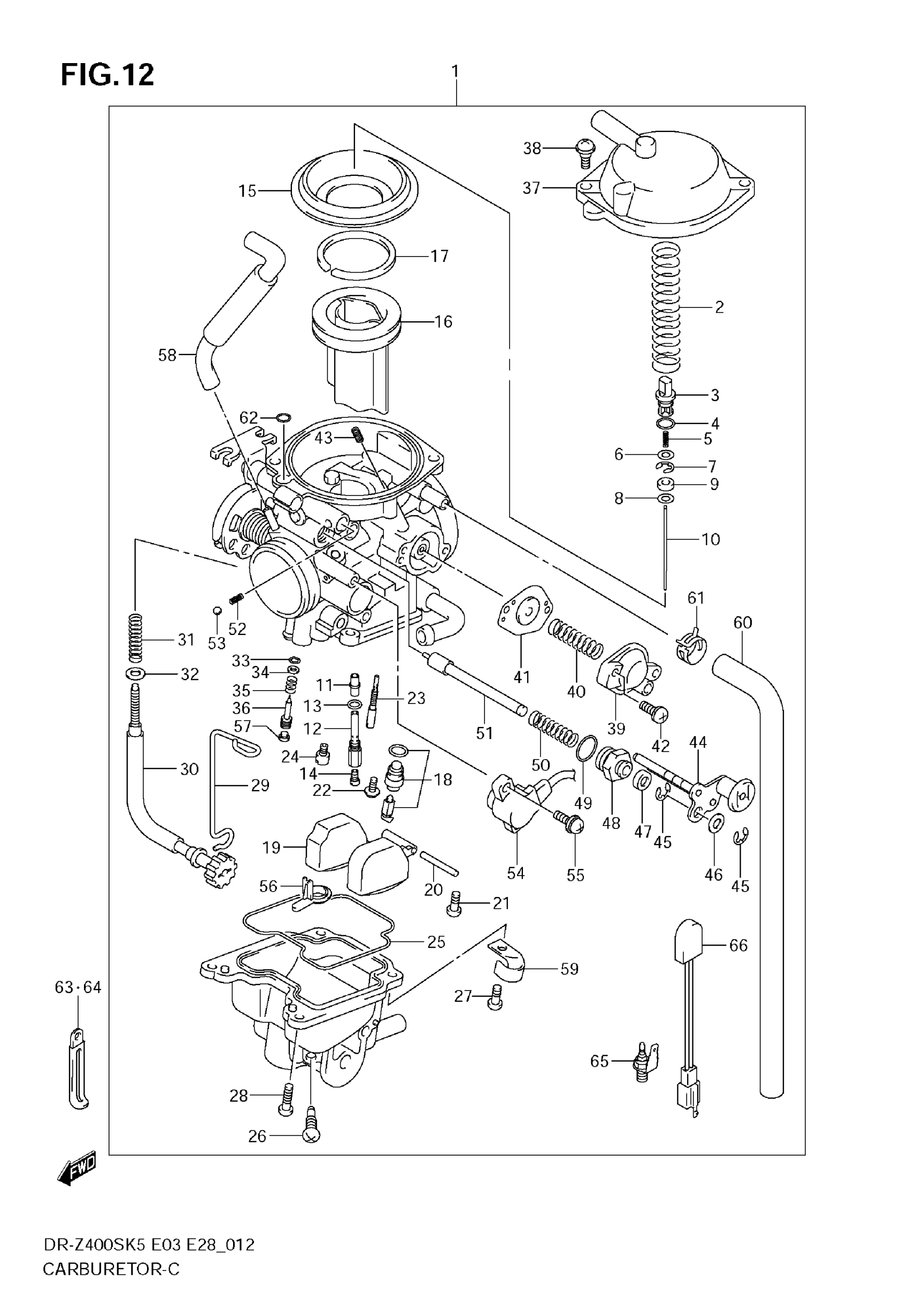

Suzuki DR-Z400S (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K5 E3,E28 This part replaces 13200-29FB2.

13200-29FB4

$848.58

1

CARBURETOR ASSY | MODEL K6 E3,E28 This part replaces 13200-29FB3.

13200-29FB4

$848.58

1

CARBURETOR ASSY | MODEL K7/K8/K9 E3,E28

13200-29FB4

$848.58

1

CARBURETOR ASSY | MODEL K5 E33 This part replaces 13200-29FC1.

13200-29FC3

$897.87

1

CARBURETOR ASSY | MODEL K6/K7/K8/K9 E33; Includes Item(s) 2 - 62

13200-29FC3

$897.87

2

SPRING

13573-07F00

$11.44

3

HOLDER

13418-33E00

$5.43

4

O RING (D:1.9,ID:4.8)

09280-05004

$2.17

5

SPRING

13481-04F00

$3.41

6

WASHER

13382-19E00

$3.51

7

E RING

13394-17E60

$1.89

8

RING

13387-13F00

$7.81

9

WASHER

13291-29FA0

$2.81

10

NEEDLE, JET (5DH37-1)

13383-29FB0

$22.25

11

JET, NEEDLE (P-0M)

09494-00939

$56.43

12

HOLDER, JET

13385-29FA0

$38.53

13

.O RING This part replaces 13246-43010.

13246-43011

$4.15

14

JET, MAIN (142.5)

09491-28012

$12.32

15

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$28.31

16

VALVE, PISTON

13501-29FA0

$69.32

17

RING

13504-14E00

$5.03

18

.VALVE ASSY NEEDLE This part replaces 13370-29FA0.

13370-29FA1

$52.70

19

FLOAT ASSY

13250-04F00

$33.23

20

.PIN, FLOAT

13254-01010

$3.56

21

SCREW This part replaces 02112-04083.

02112-0408A

$1.13

22

SCREW

13602-05A10

$3.41

23

JET, PILOT (22.5)

09492-22014

$13.21

24

JET, MAIN AIR (62.5)

09491-62006

$12.38

25

O RING

13258-04F00

$9.47

26

SCREW, DRAIN | MODEL K5

13247-02340

$4.77

26

SCREW, DRAIN | MODEL K6/K7/K8/K9 This part replaces 13247-13A00.

13247-02340

$4.77

27

SCREW

02112-04107

$1.61

28

SCREW This part replaces 02112-04123.

02112-0412A

$1.27

29

CLIP

13671-29FA0

$20.98

30

ADJUST SCREW ASSY

13267-29FA0

$70.33

31

SPRING

13268-37420

$6.00

32

WASHER

13615-43010

$3.67

33

O-RING This part replaces 13295-29900.

13295-29901

$4.15

34

WASHER

13291-29900

$1.87

35

SPRING,THROTTLE SCREW

13268-48700

$4.15

36

ADJUSTER (3,1/2)

13279-33E00

$14.10

37

COVER ASSY, DIAPHRAGM

13502-29FA0

$56.83

38

SCREW

13247-33E00

$2.81

39

COVER ASSY | E3,E28

13502-10F00

$44.80

39

COVER ASSY | E33

13502-08F00

$57.92

40

SPRING | MODEL K5

13271-10F00

$5.17

40

SPRING | MODEL K6/K7/K8/K9

13481-41F20

$3.71

41

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$16.06

42

SCREW

13601-04148

$2.80

43

JET, PILOT AIR (135)

09492-27010

$19.58

44

PLATE ASSY

13420-29FA0

$82.18

45

E RING

13415-38300

$1.95

46

WASHER

13427-38300

$2.17

47

.CAP, STARTER VALVE

13682-31210

$4.18

48

.HOLDER, GUIDE

13418-44080

$9.84

49

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.98

50

SPRING

13417-43010

$4.15

51

PLUNGER ASSY

13411-29FA0

$35.23

52

SPRING

13434-43010

$7.08

53

BALL

13596-93010

$5.00

54

.SENSOR ASSY This part replaces 13580-21F00.

13580-21F01

$82.56

55

SCREW

13602-19B50

$3.28

56

RING

13387-29FA1

$15.68

57

PLUG

13281-05A00

$4.40

58

HOSE ASSY, BOOST (4X8)

13683-29FB0

$22.85

59

.PLATE This part replaces 13671-14D00.

13671-14D01

$4.70

60

.HOSE AIR VENT (6.5X10.5) This part replaces 13684-29FB0.

13684-29FB1

$34.80

61

CLIP

13671-19F00

$5.80

62

O RING

13295-33010

$4.28

63

CLAMP, OVERFLOW HOSE CASE

09404-06429

$1.88

64

CLAMP, OVERFLOW HOSE LOW

09404-08420

$3.00

65

HEATER ASSY, CARBURETOR | OPT

13650-25E01

$50.20

66

SWITCH, CARB HEATER THERMO | OPT

13655-16F00

$74.48
