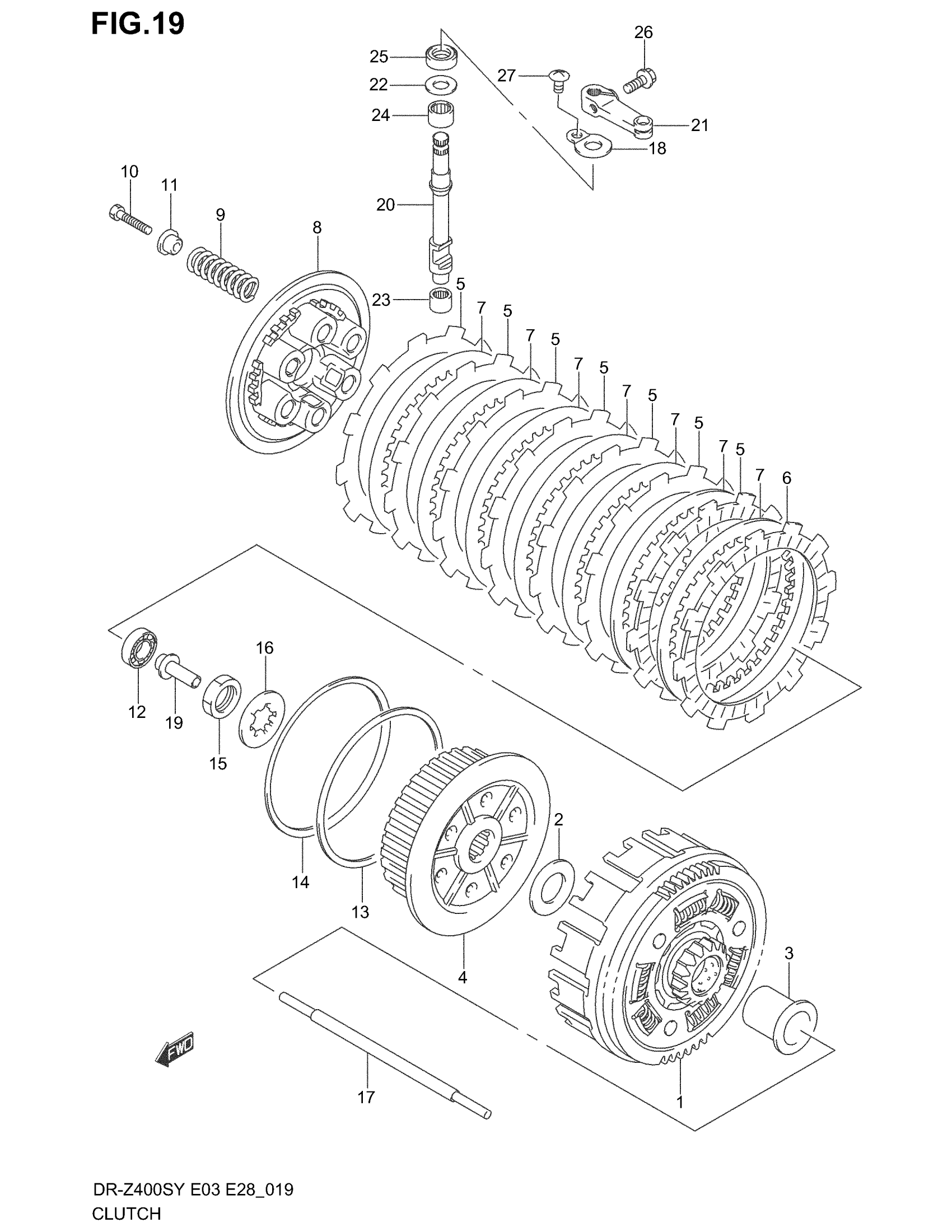

Find the part on the Clutch diagram for your 2004 Suzuki DR-Z400S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki DR-Z400S Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:74/16

21200-29F10

1
Out of stock

2

WASHER

08211-22425

1
Out of stock

3

SPACER, PRIMARY DRIVEN

21251-29F00

1
Out of stock

4

HUB, SLEEVE

21410-29F00

1
Out of stock

5

PLATE, DRIVE NO.1

21441-29F00

7
Out of stock

6

PLATE, DRIVE NO.2

21442-29F00

1
Out of stock

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

7
Out of stock

8

DISC, PRESSURE

21462-29F00

1
Out of stock

9

SPRING

21413-29F00

6
Out of stock

10

BOLT This part replaces 07130-06303.

07130-0630B

6
Out of stock

11

WASHER

21414-29F00

6
Out of stock

12

BEARING, PRESSURE DISK | 12X28X8

09262-12001

1
Out of stock

13

WASHER

09160-00003

1
Out of stock

14

WASHER, WAVE

09164-00008

1
Out of stock

15

NUT

09140-20001

1
Out of stock

16

LOCK WASHER

09167-22021

1
Out of stock

17

ROD, CLUTCH PUSH

23110-29F00

1
Out of stock

18

RETAINER, CL RLSE OIL SEAL

23117-05200

1
Out of stock

19

PIECE, CLUTCH PUSH

23121-29F00

1
Out of stock

20

CAM SHAFT, CLUTCH RELEASE

23122-29F00

1
Out of stock

21

ARM, CLUTCH RELEASE | MODEL Y/K1/K2 This part replaces 23271-20901.

23271-20902

1
Out of stock

21

ARM, CLUTCH RELEASE | MODEL K3/K4

23271-20902

1
Out of stock

22

WASHER, CLUTCH RELEASE | 10X20X1

09181-10195

1
Out of stock

23

BEARING, CLUTCH RELEASE LOW | 10X14X10

09263-10014

1
Out of stock

24

BEARING, CLUTCH RELEASE UP | 12X16X10

09263-12024

1
Out of stock

25

SEAL, CLUTCH RELEASE ARM | 10X20X6

09282-10012

1
Out of stock

26

BOLT This part replaces 01547-06163.

01547-0616B

1
Out of stock

27

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

1
Out of stock
