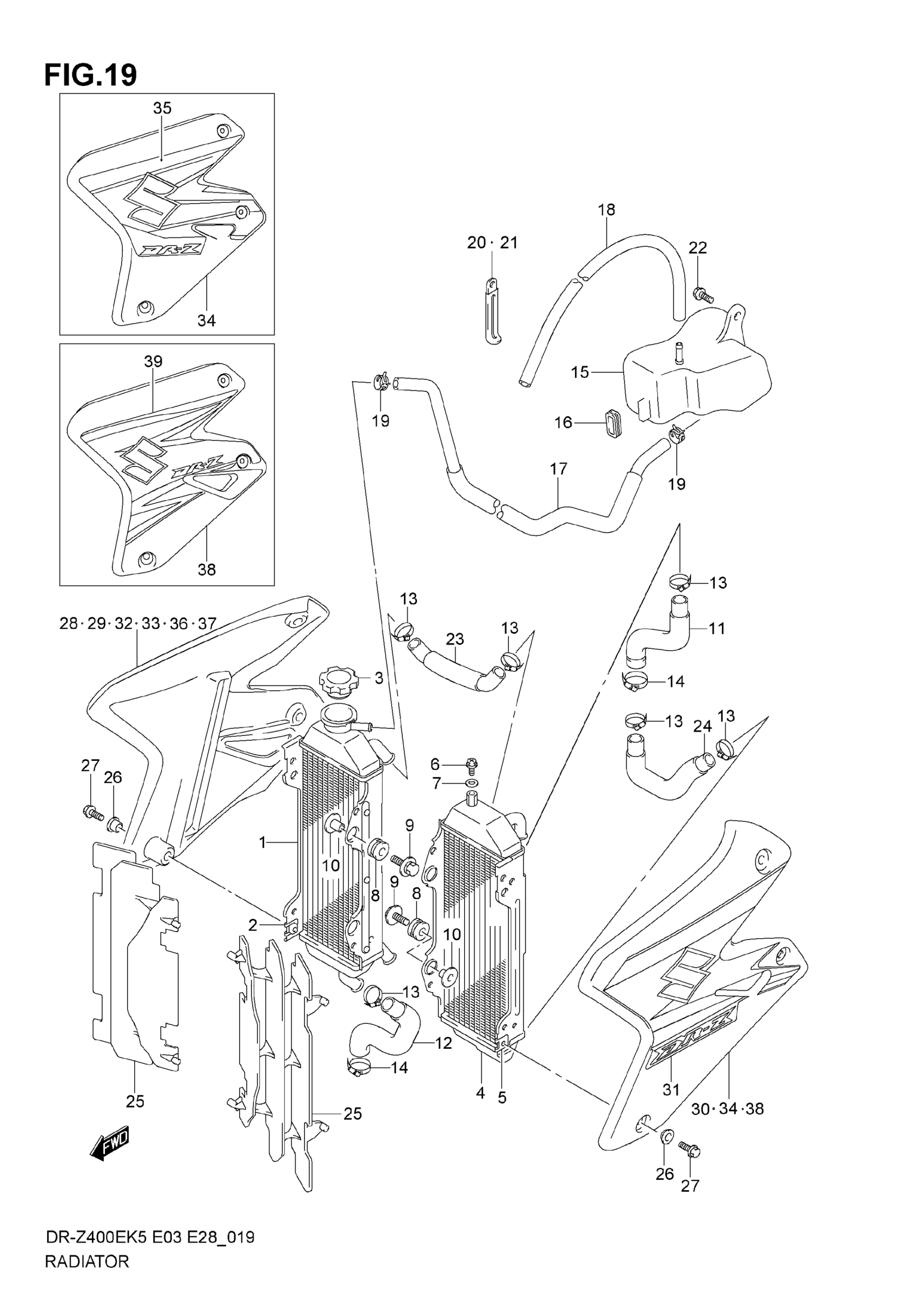

Suzuki DR-Z400E (2007) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH | Includes Item(s) 2

17710-29F20

Unavailable

2

NUT

09148-06015

$2.80

3

CAP, RADIATOR (1.1)

17730-12C30

$58.62

4

RADIATOR, LH | Includes Item(s) 5

17720-29F20

Unavailable

5

NUT

09148-06015

$2.80

6

BOLT, AIR RELEASE

17568-50F00

$6.32

7

GASKET, AIR RELEASE

09168-06026

$2.80

8

CUSHION, SUPPORT

17787-19A00

$3.26

9

BOLT (6X25)

09116-06147

$2.93

10

SPACER

09180-06243

$4.92

11

HOSE,RADIATOR INLET

17851-29F21

$37.52

12

HOSE, OUTLET

17852-29F20

$38.70

13

CLAMP

09402-28511

$6.21

14

CLAMP

09402-32511

$9.95

15

TANK, RESERVOIR

17911-29F11

$45.67

16

CUSHION, RESERVOIR TANK

17913-29F00

$5.00

17

HOSE, INLET

17981-29F01

$23.73

18

HOSE, OVERFLOW | L:2000!650

09352-50901-00B

$34.43

19

CLIP

09401-08411

$1.77

20

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

21

CLAMP, RESERVOIR INLET HOSE

09404-06429

$1.82

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

23

HOSE, JOINT UPPER

17853-29F10

$30.12

24

HOSE, JOINT LOWER

17854-29F20

$29.88

25

LOUVER, RADIATOR

17831-37E11

$17.46

26

WASHER | MODEL K5

09169-06060

$2.00

26

WASHER (6.3X16X1) | MODEL K6/K7

09169-06053

$1.10

27

BOLT | MODEL K5 This part replaces 01547-06123.

01547-0612B

$1.22

27

BOLT (6X12) | MODEL K6/K7

09103-06273

$2.24

28

COVER, RADIATOR, RH (YELLOW) | MODEL K5; Includes Item(s) 29

17760-29F70-YU1

Unavailable

29

TAPE, RADIATOR COVER, RH | MODEL K5

68665-29F70-YHB

Unavailable

30

COVER, RADIATOR, LH (YELLOW) | MODEL K5; Includes Item(s) 31

17770-29F70-YU1

Unavailable

31

TAPE, RADIATOR COVER, LH | MODEL K5

68675-29F70-YHB

Unavailable

32

COVER, RADIATOR, RH (YELLOW) | MODEL K6; Includes Item(s) 33

17760-29F90-YU1

Unavailable

33

TAPE, RADIATOR COVER, RH | MODEL K6

68665-29F90-CET

Unavailable

34

COVER, RADIATOR, LH (YELLOW) | MODEL K6; Includes Item(s) 35

17770-29F90-YU1

Unavailable

35

TAPE, RADIATOR COVER, LH | MODEL K6

68675-29F90-CET

Unavailable

36

COVER, RADIATOR, RH (YELLOW) | MODEL K7; Includes Item(s) 37

17760-29FA0-YU1

$237.43

37

TAPE, RADIATOR COVER, RH | MODEL K7

68665-29FA0-DRA

Unavailable

38

COVER, RADIATOR, LH (YELLOW) | MODEL K7; Includes Item(s) 39

17770-29FA0-YU1

Unavailable

39

TAPE, RADIATOR COVER, LH | MODEL K7

68675-29FA0-DRA

Unavailable
