2007 Suzuki DR-Z400E Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

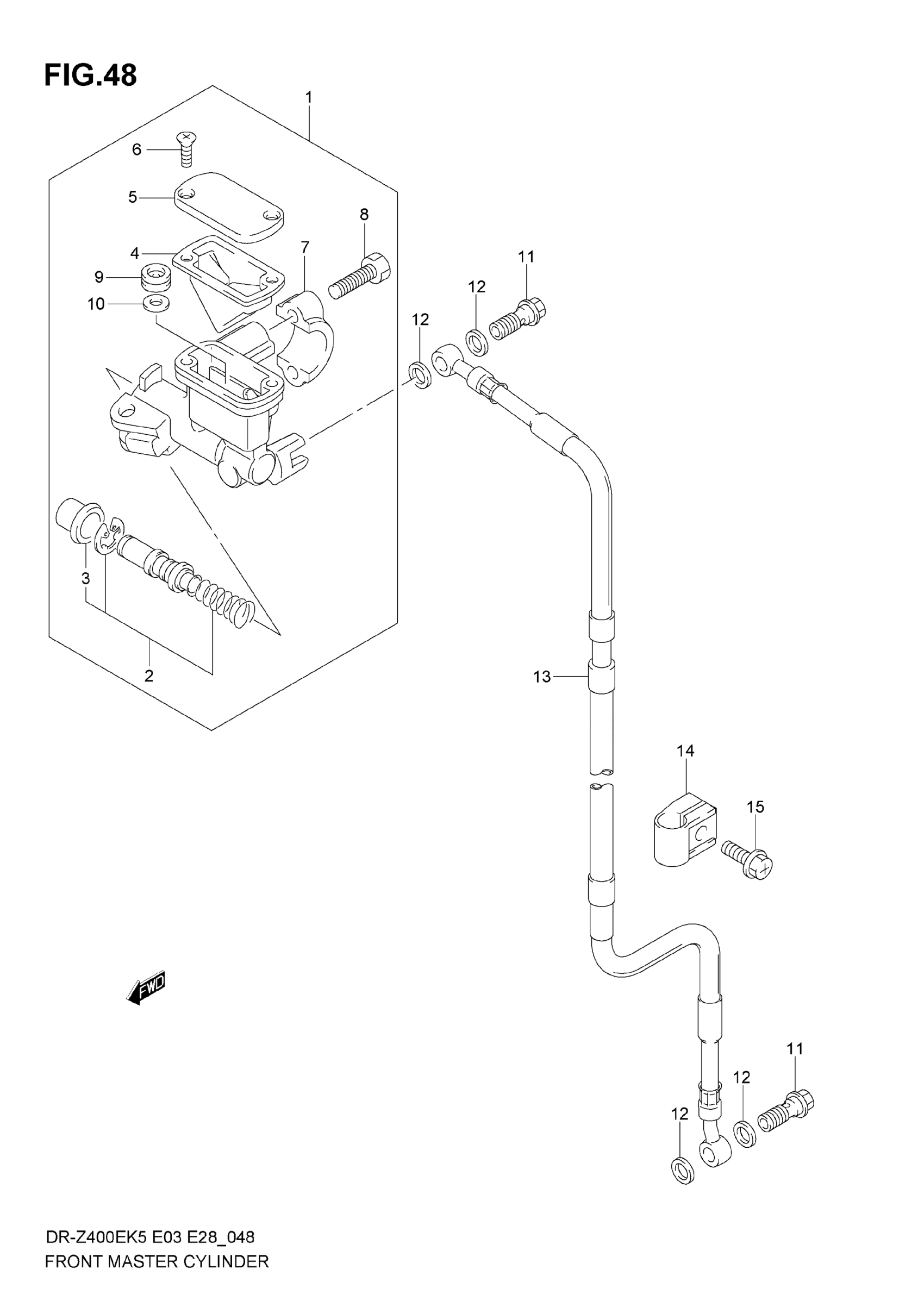

2007 Suzuki DR-Z400E Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

1

$54.43

In stock

3

BOOT

59666-36E00

1

$9.35

In stock

4

DIAPHRAGM

59667-36E00

1

$13.50

In stock

5

CAP (SILVER)

59669-36E10

1

$22.25

In stock

6

SCREW

69689-49300

2
Out of stock

7

HOLDER (SILVER)

59671-27C00

1

$19.22

In stock

8

BOLT

59675-27C00

2

$3.63

In stock

9

SEPARATOR

59748-36E00

1
Out of stock

10

RING

69744-36E00

1
Out of stock

11

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE COMP,FRONT This part replaces 59480-29F00.

59480-29F01

1
Out of stock

14

CLAMP, FR BRAKE

59243-03B01

1

$7.48

In stock

15

1

$1.54

In stock
