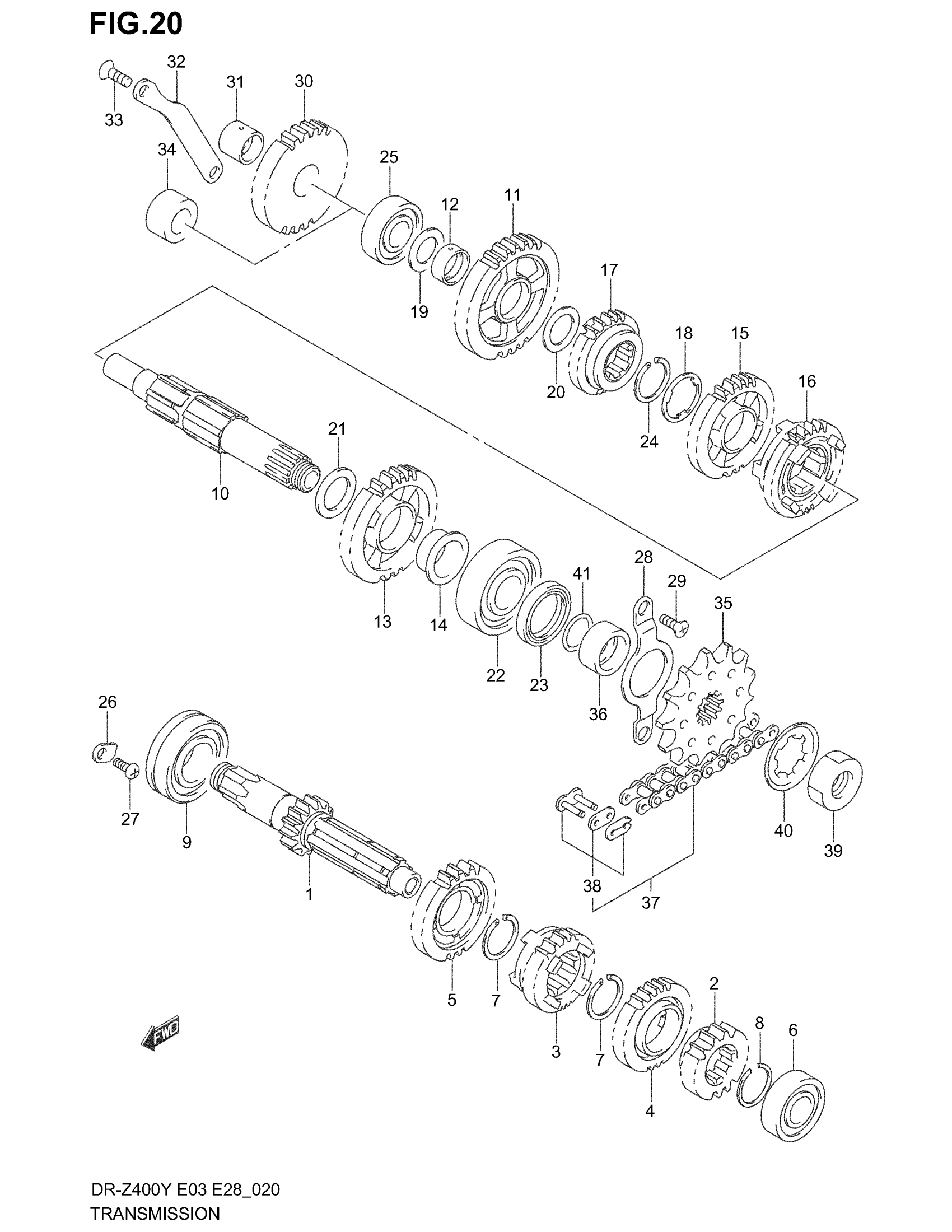

Suzuki DR-Z400 (2004) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-05D20

$298.40

2

GEAR, 2ND DRIVE (NT:15)

24221-28C20

$131.95

3

GEAR, 3RD DRIVE (NT:16)

24231-05D02

$151.07

4

GEAR, 4TH DRIVE (NT:22) | MODEL Y/K1 This part replaces 24241-05D00.

24241-05D01

$131.95

4

GEAR, 4TH DRIVE (NT:22) | MODEL K2/K3/K4

24241-05D01

$131.95

5

GEAR, 5TH DRIVE (NT:22)

24251-05D00

$131.95

6

BEARING, CNTR SHAFT LH | 17X40X12

09262-17027

$37.62

7

CIRCLIP, 4TH/5TH DRIVE

09380-25010

$2.80

8

CIRCLIP, 2ND DRIVE

09380-25013

$4.53

9

BEARING, CNTR SHAFT, RH | 25X52X15

09262-25003

$22.40

10

SHAFT, DRIVE This part replaces 24130-05D20.

24130-05D21

$228.12

11

GEAR, 1ST DRIVEN (NT:32)

24311-05D00

$139.58

12

BUSH, 1ST DRIVEN

24312-29F00

$25.68

13

GEAR, 2ND DRIVEN (NT:26)

24321-28C02

$137.02

14

BUSH, 2ND DRIVEN

24322-44E10

$40.65

15

GEAR, 3RD DRIVEN (NT:22)

24331-05D01

$141.73

16

GEAR, 4TH DRIVEN (NT:24) | MODEL Y/K1 This part replaces 24341-05D00.

24341-05D01

$153.90

16

GEAR, 4TH DRIVEN (NT:24) | MODEL K2/K3/K4

24341-05D01

$153.90

17

GEAR, 5TH DRIVEN (NT:19)

24351-05D20

$139.58

18

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

19

WASHER, 1ST DRIVEN, RH | 17X30X1.0

09181-17223

$2.80

20

WASHER, 1ST DRIVEN, LH | 20X30X1.0

09181-20195

$2.68

21

WASHER, 2ND DRIVEN, RH | 22X34X1.0

09181-22223

$2.85

22

BEARING, DRIVE SHAFT, LH | 22X56X16

09262-22024

$76.22

23

OIL SEAL (30X40X6) | 30X40X6

09283-30053

$8.34

24

CIRCLIP, 3RD DRIVEN

09380-25010

$2.80

25

BEARING, DRIVE SHAFT, RH | 17X40X12

09262-17023

$15.11

26

RETAINER, COUNTER SHAFT

24741-21A00

$2.80

27

SCREW (6X12)

09125-06110

$2.13

28

RETAINER, DRIVE SHAFT OIL SEAL

24751-29F00

$6.51

29

BOLT, RETAINER (6X14)

09126-06007

$2.01

30

GEAR, KICK IDLE (NT:26) | DR-Z400Y/K1/K2/K3

26261-29F00

Unavailable

31

BUSH, KICK IDLE | DR-Z4OOY/K1/K2/K3

26262-29F00

$22.42

32

RETAINER, KICK IDLE

26264-29F00

$14.73

33

SCREW This part replaces 02122-06163.

02122-0616A

$1.43

34

SPACER, KICK IDLE | 17X30.5X16.3 DR-Z400EY/EK1/EK2/EK3

09180-17055

$11.93

35

SPROCKET, ENGINE (NT:14)

27511-47D10

$41.63

36

SPACER, ENGINE SPROCKET

27531-29F00

$21.39

37

CHAIN ASSY, DRIVE | Includes Item(s) 38 This part replaces 27600-29F10-112.

27600-29F30-112

$183.27

38

JOINT SET, CHAIN

27620-29F10

$23.82

39

NUT, ENGINE SPROCKET

09140-18006

$4.36

40

WASHER

09167-22012

$1.52

41

O RING (D:2.5,ID:21)

09280-21008

$1.89
