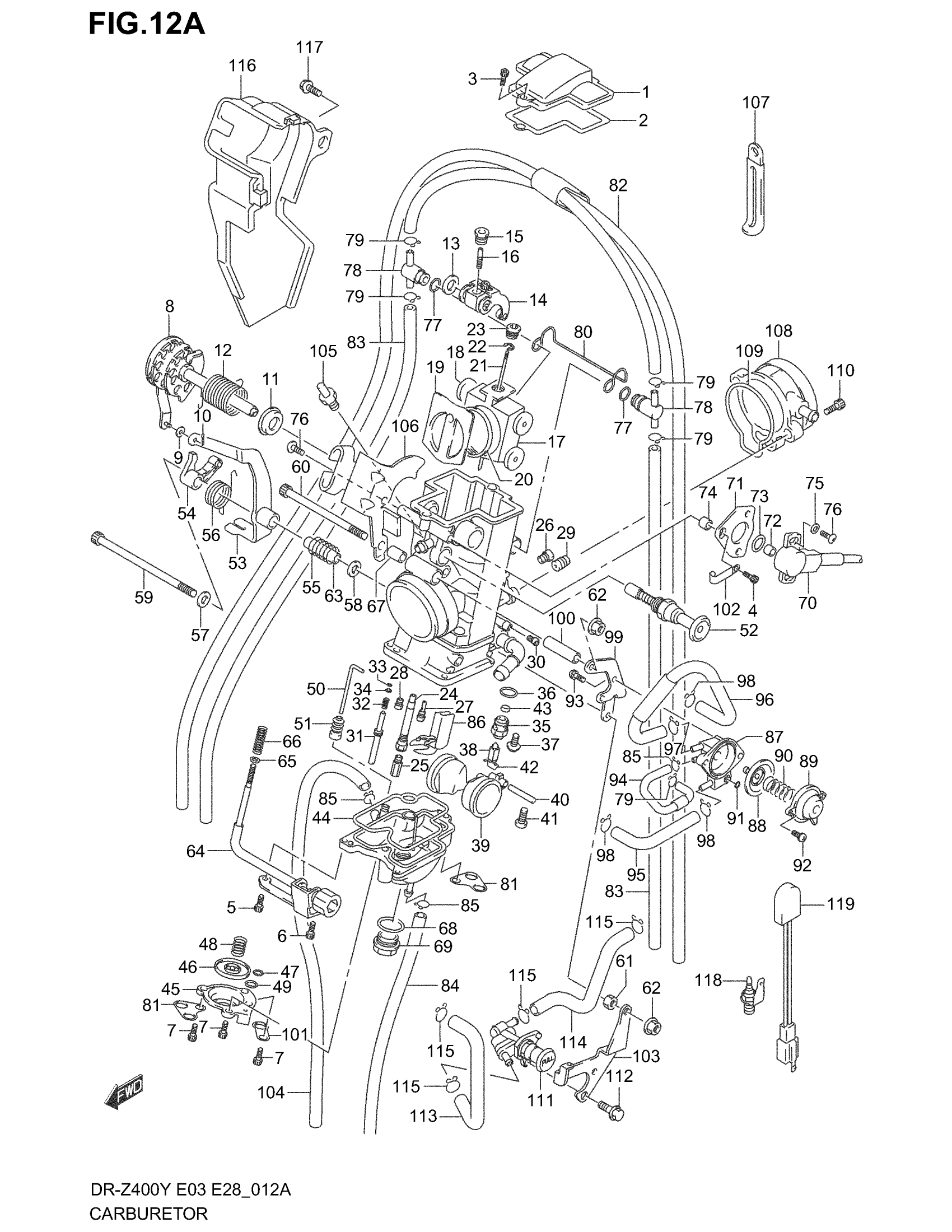

Suzuki DR-Z400 (2004) CARBURETOR (MODEL K3/K4) Diagram

#

Description
Price

CARBURETOR ASSY | DR-Z400K3/K4 This part replaces 13200-29FF0.

13200-29FF1

$1,893.67

CARBURETOR ASSY | DR-Z400EK3/EK4

13200-29FH0

Unavailable

CARBURETOR ASSY | E33; Includes Item(s) 1 - 106 This part replaces 13200-29F20.

13200-29F21

Unavailable

1

TOP

13261-29F00

Unavailable

2

TOP WASHER

13266-29F00

$28.60

3

BOLT (4X12)

13612-29F10

$7.12

4

BOLT (4X12)

13612-29F10

$7.12

5

BOLT (4X12)

13612-29F10

$7.12

6

BOLT (4X14) | DR-Z400K3/K4

13612-29F20

$7.40

6

BOLT (4X12) | DR-Z400EK3/EK4

13612-29F10

$7.12

7

BOLT (4X8)

13612-29F30

Unavailable

8

SHAFT, THROTTLE

13550-29F00

Unavailable

9

WASHER

13418-29F00

Unavailable

10

PIN

13544-29F00

Unavailable

11

COLLAR

13574-29F00

$12.60

12

SPRING

13573-29F00

Unavailable

13

WASHER

13572-29F00

$2.97

14

LINK ARM

13564-29F00

Unavailable

15

NUT

13607-29F00

Unavailable

16

SCREW

13605-29F00

Unavailable

17

VALVE, THROTTLE

13551-29F00

Unavailable

18

BEARING

13570-29F00

$15.22

19

VALVE

13555-29F00

$352.00

20

LIP SEAL

13559-29F00

$26.80

21

NEEDLE, JET

13383-29F00

$17.53

22

BAR CLIP

13394-29F00

$3.53

23

SCREW, NEEDLE SET

13605-29F10

Unavailable

24

MAIN NOZZLE

13342-29F00

$65.62

25

JET, MAIN (142)

09491-28020

$19.58

26

JET, MAIN AIR (200)

09491-40014

$19.58

27

JET, SLOW (45)

09492-45038

$18.87

28

JET, STARTER (65)

09492-65009

$19.22

29

JET, SLOW AIR (60)

09491-60012

$19.58

30

JET, AIR (90)

09493-90009

Unavailable

31

SCREW, ADJUST (1,1/2)

13279-29F00

$12.62

32

SPRING

13271-29F00

$4.87

33

O RING

13295-26E00

$3.97

34

WASHER

13291-26E00

$2.80

35

VALVE SET

13371-29F00

$36.35

36

O RING

13374-29F00

$5.27

37

SCREW

13601-29F00

$8.45

38

VALVE, FLOAT

13370-29F00

$23.16

39

FLOAT

13250-29F00

$76.43

40

PIN

13254-26E00

$5.00

41

SCREW

13602-43E00

$2.88

42

CLIP

13375-26E00

$7.02

43

STRAINER

15165-24F00

$10.58

44

PACKING

13251-29F00

$39.80

45

COVER

13488-29F00

$38.80

46

DIAPHRAGM

13491-29F00

$42.77

47

U RING This part replaces 13497-14F00.

13497-14F01

$3.75

48

SPRING

13494-15F00

$2.71

49

O RING

13673-26E10

$3.86

50

ROD

13487-29F00

$26.92

51

CAP This part replaces 13499-29F00.

13499-29F01

$6.17

52

VALVE, STARTER

13410-29F00

$102.80

53

LINK LEVER

13490-29F00

Unavailable

54

LINK LEVER

13490-29F10

$20.33

55

SPRING

13494-29F00

Unavailable

56

SPRING

13494-29F10

$14.63

57

WASHER

13615-29F00

Unavailable

58

COLLAR

13582-29F00

Unavailable

59

BOLT

13612-29F40

Unavailable

60

BOLT | DR-Z400K3/K4

13612-29F50

Unavailable

60

BOLT | DR-Z400EK3/EK4

13612-29F40

Unavailable

61

NUT | DR-Z400K3/K4

13607-29F10

Unavailable

62

NUT

13607-24F00

$3.62

63

COLLAR

13582-29F10

Unavailable

64

SCREW,STOP This part replaces 13270-29F00.

13270-29F01

$71.75

65

WASHER

13427-26E00

$4.18

66

SPRING

13271-26EA0

$7.77

67

COLLAR

13582-29F20

Unavailable

68

O RING

13246-29F00

$7.00

69

BOLT

13247-29F00

$70.97

70

SENSOR, THROTTLE

13580-29F00

$299.27

71

PLATE

13627-29F00

Unavailable

72

COLLAR

13582-24F00

$10.97

73

O RING

13575-03F00

$6.00

74

COLLAR

13582-29F30

$9.27

75

WASHER

13572-14F00

$3.70

76

BOLT (4X8)

13612-29F00

$7.40

77

O RING This part replaces 13673-26E00.

13673-26E01

$4.00

78

JOINT

13687-29F00

$22.42

79

CLIP

09401-06101

$2.06

80

CLIP

13692-29F00

$31.73

81

BINDER

13693-36E00

$6.38

82

PIPE

13680-29F00

Unavailable

83

PIPE

13686-29F00

Unavailable

84

PIPE, RUBBER

13684-29F00

Unavailable

85

CLIP This part replaces 09401-05402.

09401-05402-XC0

$1.78

86

PLATE

13257-29F00

$44.60

87

BODY, DIAPHRAGM

13484-29F00

Unavailable

88

DIAPHRAGM

13480-29F00

$53.05

89

COVER

13484-29F10

Unavailable

90

SPRING

13481-29F00

$6.40

91

U RING This part replaces 13486-15F00.

13486-15F01

$2.55

92

SCREW

13601-15F20

Unavailable

93

SCREW This part replaces 02112-34083.

02112-3408A

$2.58

94

PIPE,RUBBER This part replaces 13680-29F10.

13680-29F11

$35.35

95

PIPE,RUBBER This part replaces 13681-29F00.

13681-29F01

$16.85

96

PIPE, RUBBER

13680-29F20

$61.30

97

CLIP

09401-07101

Unavailable

98

CLIP

13671-29F00

$4.08

99

PLATE, STAY

13628-29F00

Unavailable

100

COLLAR

13582-29F40

$17.96

101

BINDER

13693-28E00

$9.25

102

BINDER

13432-29F00

$18.50

103

PLATE, STAY | DR-Z400K3/K4

13629-29F00

Unavailable

104

PIPE

13683-29F00

Unavailable

105

SCREW, STOP

13296-29F00

Unavailable

106

PLATE, STAY

13621-29F10

Unavailable

107

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

107

CLAMP, OVER FLOW HOSE LOW

09404-08420

$2.90

108

JOINT, AIR CLEANER

13670-29F00

$74.95

109

O RING, AIR CLEANER JOINT

13278-29F00

$7.56

110

BOLT This part replaces 07130-05123.

07130-0512B

$2.53

111

STARTER | DR-Z400K3/K4

13440-29F00

Unavailable

112

BOLT | DR-Z400K3/K4 This part replaces 01547-06163.

01547-0616B

$2.43

113

HOSE, STARTER TO HEAD | DR-Z400K3/K4

13697-29F00

Unavailable

114

HOSE, STARTER TO AIR CLEANER | DR-Z400K3/K4

13697-29F10

Unavailable

115

CLIP | DR-Z400K3/K4

09401-08401

$1.52

116

COVER, CARBURETOR

13311-29F10

$35.70

117

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

118

HEATER ASSY, CARBURETOR | OPT

13650-25E01

$50.20

119

SWITCH, CARB HEATER THERMO | OPT

13655-16F00

$74.48
