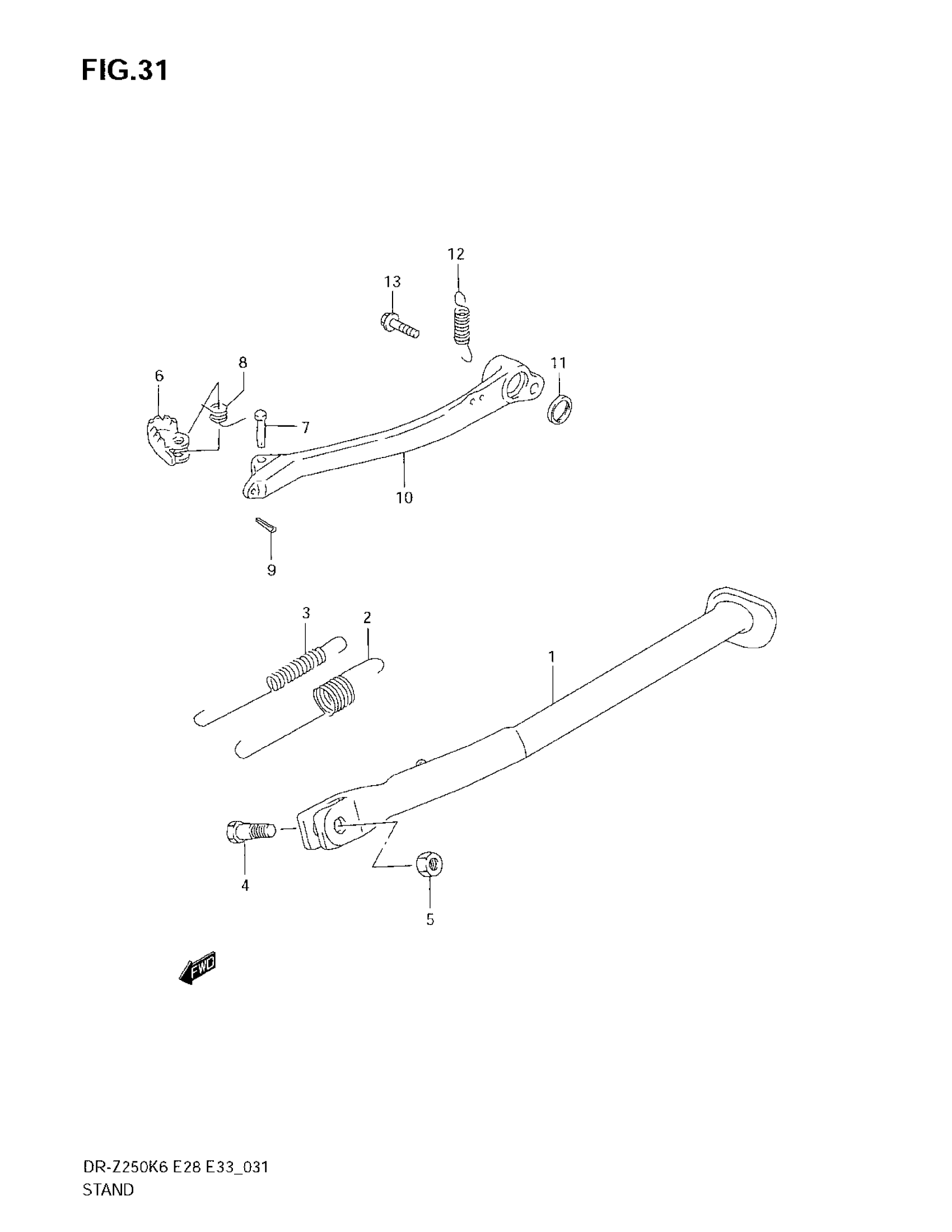

Suzuki DR-Z250 (2007) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL K6 This part replaces 42310-13E20.

42310-13E00

$210.54

1

STAND, PROP | MODEL K7

42310-13E00

$210.54

2

SPRING, OUTER

09443-19010

$6.15

3

SPRING, INNER

09443-12036

$7.30

4

BOLT

09111-10047

$3.90

5

NUT

09159-10097

$5.28

6

PEDAL, BRAKE

43110-43D00

$17.32

7

PIN

09200-06062

$2.19

8

SPRING

09444-11006

$3.01

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

10

ARM, BRAKE PEDAL

43112-13E02

Unavailable

11

OIL SEAL (15X20X3)

09284-15006

$3.31

12

SPRING

09443-11030

$3.45

13

BOLT (8X14)

09106-08098

$4.40
