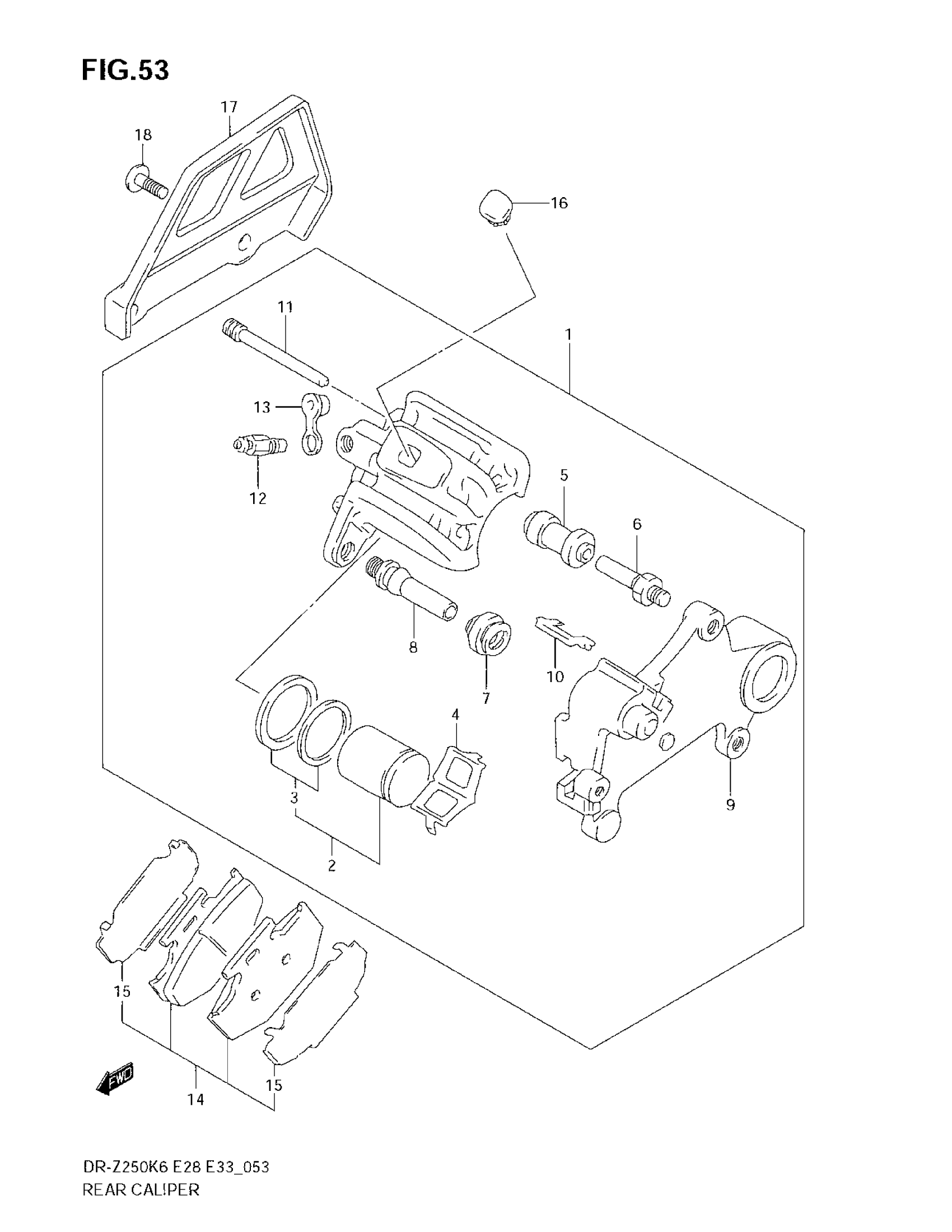

Find the part on the Rear Caliper diagram for your 2007 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z250 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 13

69100-13E00-999

1
Out of stock

2

PISTON SET

69100-03810

1

$50.52

In stock

3

SEAL SET, PISTON

69100-13810

1

$9.85

In stock

4

SPRING

59315-27C10

1

$13.20

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-27C30

1
Out of stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-27C00

1
Out of stock

9

BRACKET

69351-43D01

1
Out of stock

10

RETAINER

69113-43D00

1

$9.97

In stock

11

.PIN HANGER

69345-43D00

2
Out of stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

1

$71.85

In stock

15

SHIM

69132-28C00

2
Out of stock

16

COVER, CALIPER BODY

69171-14D00

1
Out of stock

17

1

$35.88

In stock

18

2

$1.35

In stock
