2007 Suzuki DR-Z250 Gear Shifting Diagram

← All diagrams

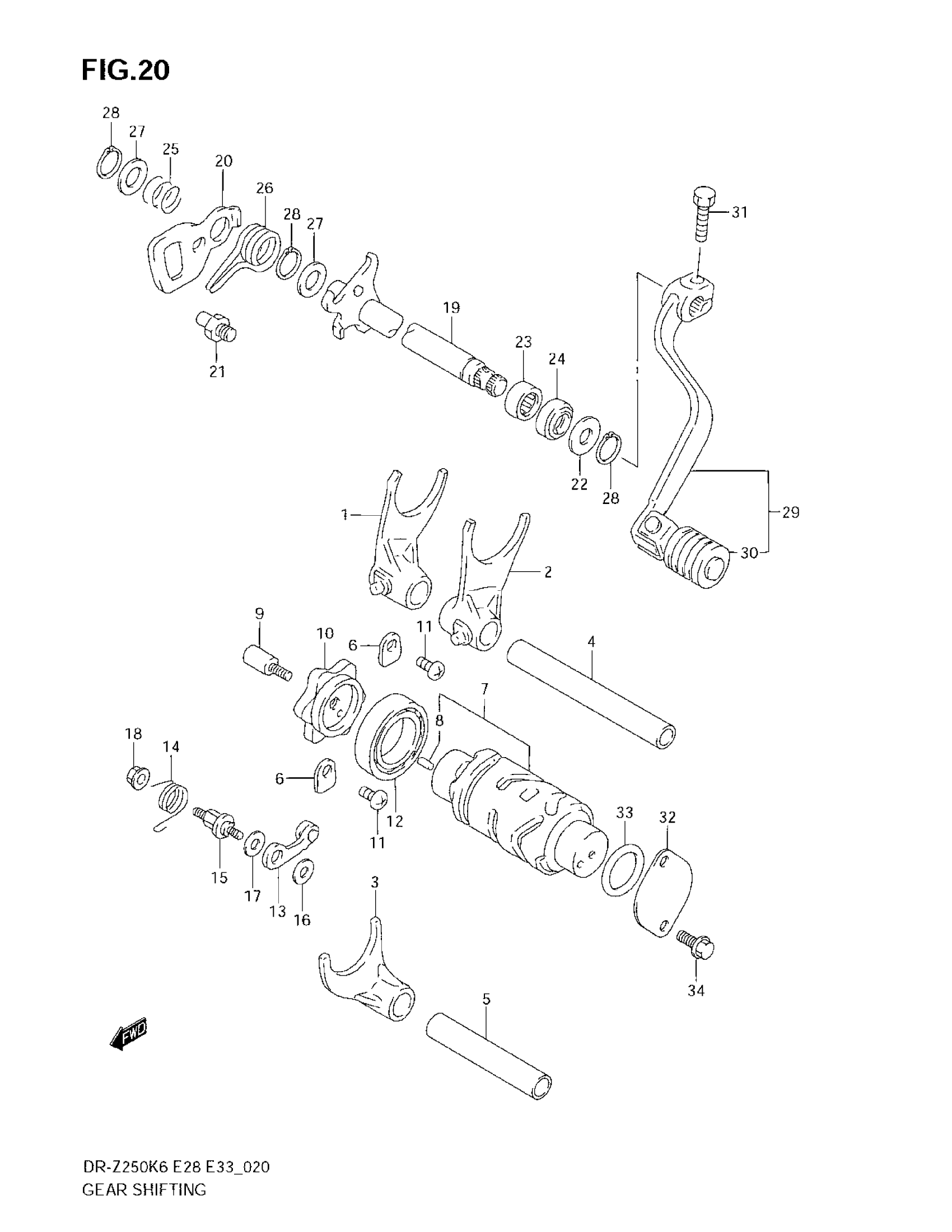

Find the part on the Gear Shifting diagram for your 2007 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z250 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-14D02

1
Out of stock

2

FORK, GEAR SHIFT NO.2

25221-14D03

1
Out of stock

3

FORK, GEAR SHIFT NO.3

25231-14D02

1
Out of stock

4

SHAFT, GEAR SHIFT FORK (L:95)

25411-37F20

1
Out of stock

5

SHAFT, GEAR SHIFT FORK (L:70)

25421-14D00

1
Out of stock

6

RETAINER, SHIFT CAM BEARING

24741-21A00

2
Out of stock

7

CAM, GEAR SHIFT | Includes Item(s) 8

25310-14D10

1
Out of stock

8

PIN (4X13.8)

04221-04089

1
Out of stock

9

PIN, SHIFT CAM DRIVEN GEAR

25312-12C00

1
Out of stock

10

PLATE, GEAR SHIFT CAM

25381-13E10

1
Out of stock

11

SCREW, SHIFT CAM (6X12)

09125-06110

2
Out of stock

12

BEARING

08113-69050

1
Out of stock

13

STOPPER, GEAR SHIFT CAM

25350-24B00

1
Out of stock

14

SPRING, SHIFT CAM STOPPER This part replaces 25355-13E00.

25355-13E10

1
Out of stock

15

SUPPORT, CAM STOPPER ARM

25356-12C00

1
Out of stock

16

WASHER

08211-06141

1
Out of stock

17

WASHER

08212-06203

1
Out of stock

18

NUT

08316-1006A

1
Out of stock

19

SHAFT, GEAR SHIFT

25510-13E01

1
Out of stock

20

PLATE, GEAR SHIFT CAM DRIVE

25512-13E11

1
Out of stock

21

STOPPER, RETURN SPRING

25671-01011

1
Out of stock

22

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

1
Out of stock

23

BEARING (14X20X12)

09263-14027

1
Out of stock

24

OIL SEAL (14X22X6)

09283-14006

1
Out of stock

25

SPRING

09440-17009

1
Out of stock

26

SPRING

09444-20001

1
Out of stock

27

WASHER (14X22X1.0)

09181-14167

2
Out of stock

28

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

3
Out of stock

29

LEVER ASSY, GEAR SHIFT | Includes Item(s) 30

25600-13E10

1
Out of stock

30

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

1
Out of stock

31

BOLT

01500-0620A

1
Out of stock

32

CAP, NEUTRAL S/W HOLE

11451-46000

1
Out of stock

33

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

34

BOLT (L:80)

01547-0510A

2

$2.77

In stock
