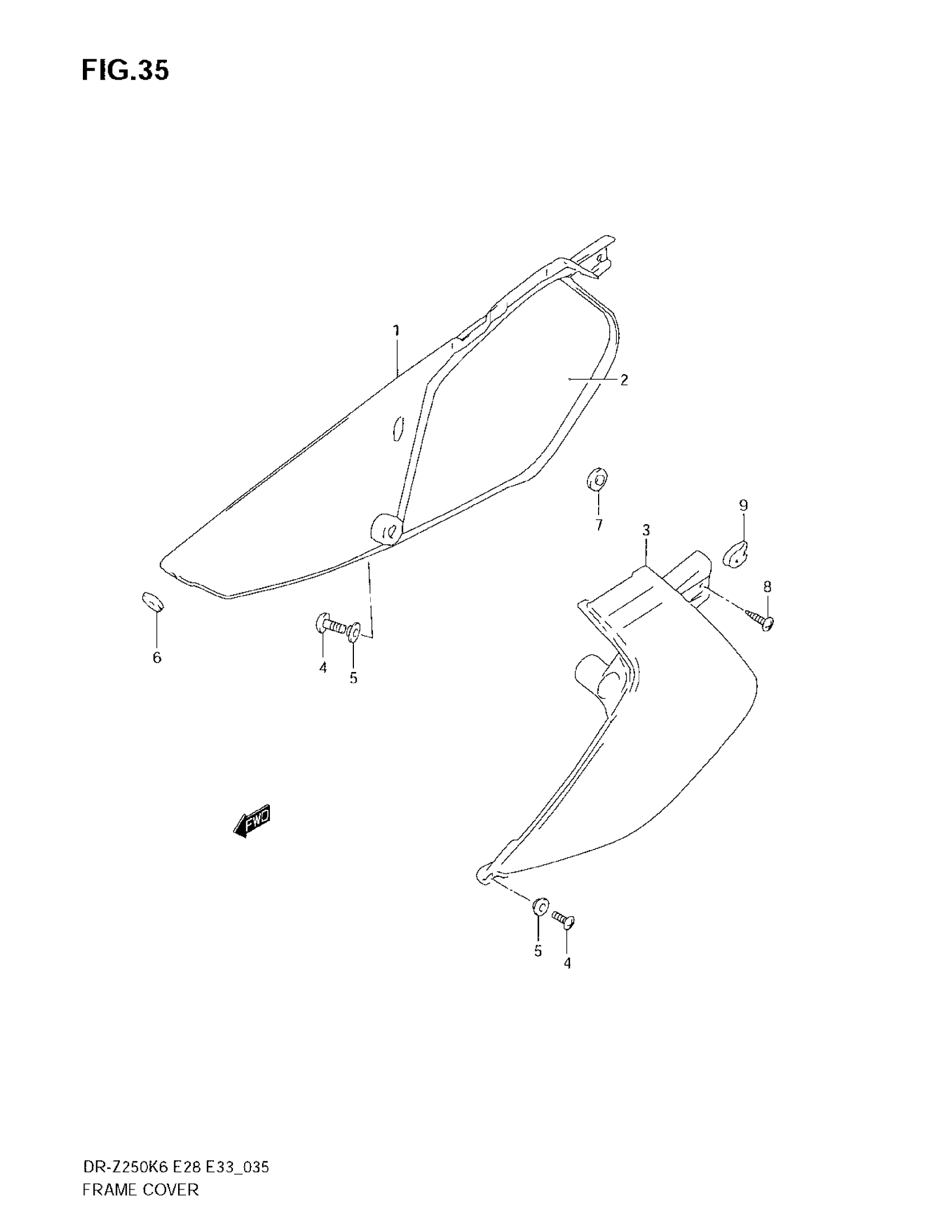

Suzuki DR-Z250 (2007) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE)

47111-13E00-30H

$106.23

2

SHIELD, FRAME COVER RH

47166-13E00

$53.13

3

COVER, FRAME LH (WHITE)

47211-13E00-30H

$70.95

4

SCREW

02142-06127

$1.43

5

WASHER This part replaces 09169-06028.

09169-06041

$2.02

6

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

7

CUSHION

09321-10018

$4.33

8

SCREW This part replaces 03541-15123.

03541-1512B

$3.12

9

NUT This part replaces 09148-05004.

09148-05013

$1.94
