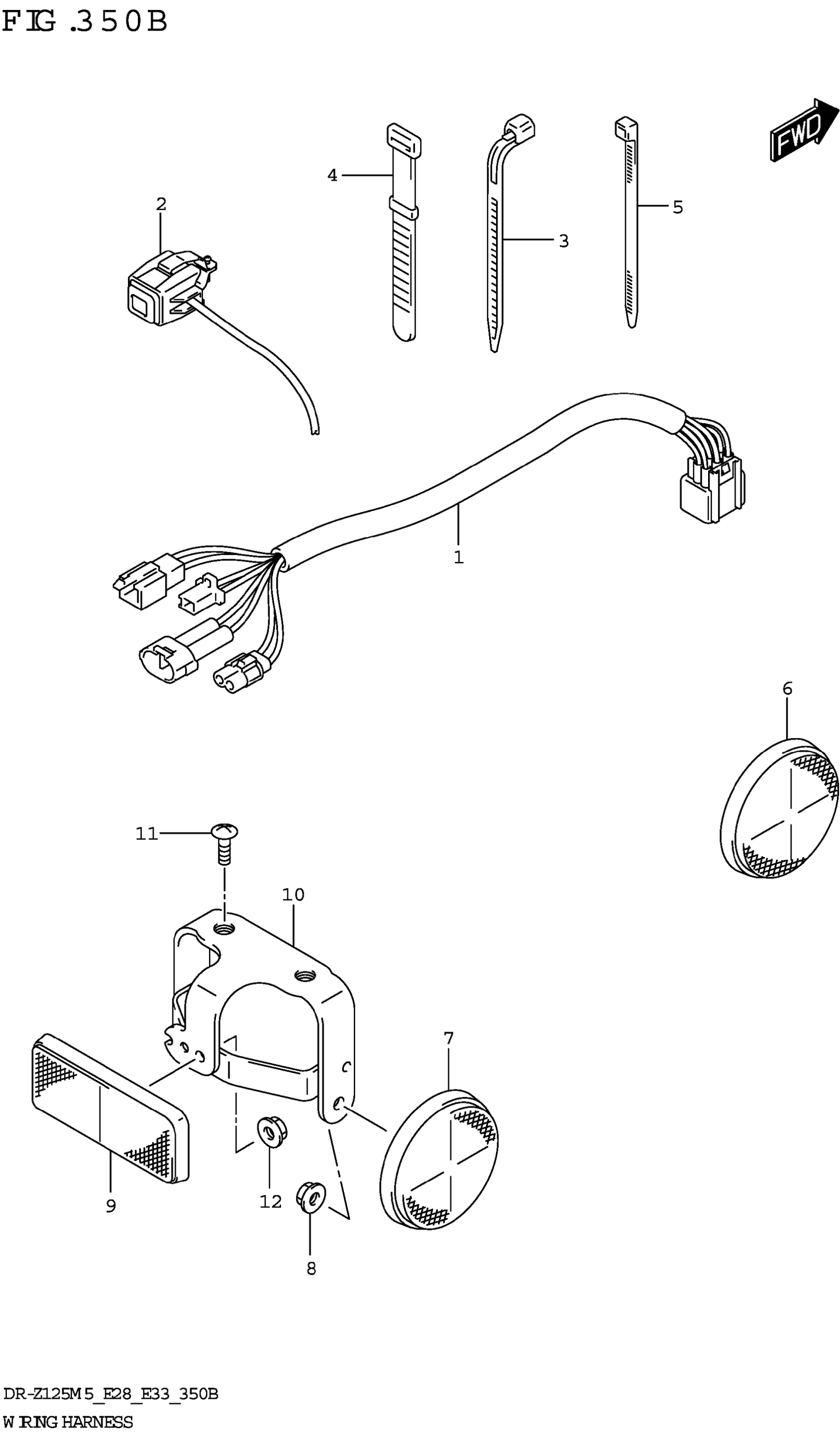

Suzuki DR-Z125LM5 (2025) WIRING HARNESS (E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-08G01

$67.70

2

SWITCH ASSY, ENGINE STOP

37820-08G00

$69.50

3

CLAMP (L:165)

09407-18402

$2.21

4

CLAMP (L:120)

09407-12402

$2.80

5

CLAMP (L:145)

09407-14407

$2.80

6

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

7

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

8

NUT

08316-1005A

$2.19

9

REFLECTOR ASSY,RR

35970-07F01

$19.11

10

BRACKET, SIDE & RR REFL

35974-08G10

Unavailable

11

SCREW

02142-0612A

$1.37

12

NUT

08316-1005A

$2.19
